Quick Details
-
oem:
-
yes
-
input voltage:
-
220V or 110V
Quick Details
-
Place of Origin:
-
Guangdong, China
-
delivery condition:
-
brand new
-
manufacturers:
-
yes
-
oem:
-
yes
-
input voltage:
-
220V or 110V

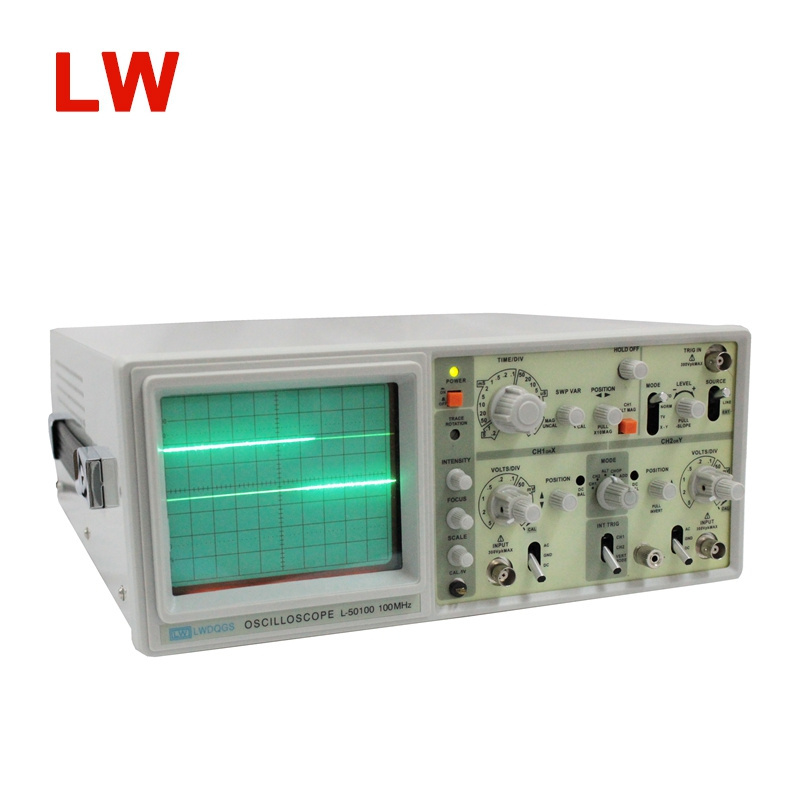

Analog oscilloscope
Model:
L-212 : D C-20MHz L-5040: DC-40MHz L-5060: D C-60MHz
L-50100:DC-100 MHz
Features:
Dual channels/dual traces,
X-Y mode
6" display, high brightness oscilloscope tube
High sensitivity triggering, up to 1mV/division clearer display than ordinary oscilloscope
TV synchronous separatio n circuit to observe stable TV signal
Triggering mode: AUTO/NORM/AV-V/AV-H
Vertical: ALT/CHOP/ADD
X-x10/Y-x5
Polarity reversal
CH1 Sync output
Power supply: AC 220V ADN (110V optional)
Specifications
CRT: 6 inches rectangular screen with inter n al graticule, 8*10div ( 1 div=1cm).
Vertical deflection
Display mode: CH1, CH2, CH3, ADD, ALT, and CHOP
Deflection factor: 5mV/div to 5V/div±3 % ,( 1m V /div to 1V/div±5% at*5), 10step s .
Rise time: ≤ 17.5ns
Max. Input voltage: 40 v (DC+AC peak value) whe n ≤1KHz
Input coupling: AC, DC, Grounding
Polarity selection : ±( CH 2 only)
Horizontal deflection
Display mode: 1, 10, X-Y
Time Base: 0.2us/div to 0.5s/div, 2 0 range
Sweep e x pansion width:*10
Accuracy: ± 3%
Triggering System:
Triggering mode: NORM, AUTO, TV-V, T V -H
Triggering sourde: CH1, CH2, LINE, EX T
Sensitivity and Frequency: Auto: 20Hz---100MHz ( VERT)
Norm: 0 .5di v int, 0.8V p —p EXT
0.5div INT, 0.5v p ---PEXT
TV-H: At least 1 div or 1V p-p,
Input impedance: 1MΩ
X-Y Operation
X-Y Phase difference: ≤ 3 o, DC--50KHz
Others:
Cali b ration waveform: Frequency: 1K H 20%, Voltage: 0.5v 1 %
Power supply: AC 220V/110V±10%, 5 0 /60Hz
Dimensions: 370 *310* 130 mm Weight:8.5-9.5KG
REMARK: WE COULD DO THE PRODUCT ACCORDING TO CUSTOMERS ’ REQUIREMENT
