Quick Details
-
Model Number:
-
FUCB-MD
-
Name:
-

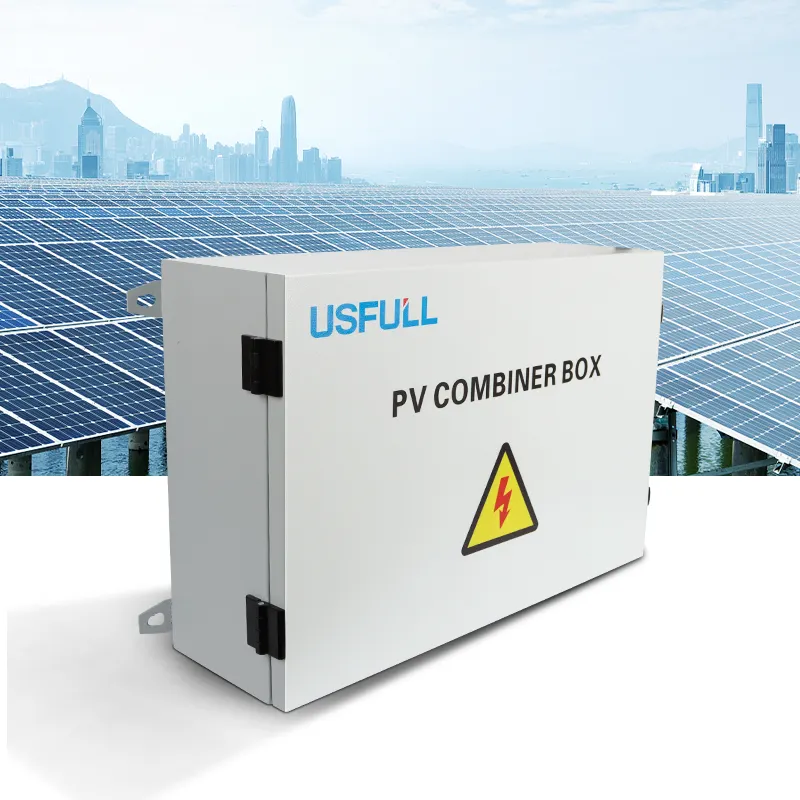

Solar PV Combiner Box
-
Protection Level:
-
IP65/IP66
-
Application:
-
Solar System/Energy Storage System
-
Number of DC Inputs:
-
2 to 32 Ways
-
Number of DC Outputs:
-
1 (Support customization for output number)
-
Communication:
-
RS485/Modbus
-
DC Fuse Holder:
-
1000V DC 32A (Support 1500V)
-
DC Fuse:
-
15A (Support other ampere)
-
Connection Type DC Input:
-
PG/MC4 Connector, IP68
-
Anti-reverse Diode:
-
Built-in
Quick Details
-
Warranty:
-
18 Months
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
USFULL
-
Model Number:
-
FUCB-MD
-
Name:
-
Solar PV Combiner Box
-
Protection Level:
-
IP65/IP66
-
Application:
-
Solar System/Energy Storage System
-
Number of DC Inputs:
-
2 to 32 Ways
-
Number of DC Outputs:
-
1 (Support customization for output number)
-
Communication:
-
RS485/Modbus
-
DC Fuse Holder:
-
1000V DC 32A (Support 1500V)
-
DC Fuse:
-
15A (Support other ampere)
-
Connection Type DC Input:
-
PG/MC4 Connector, IP68
-
Anti-reverse Diode:
-
Built-in
Product Description
|
Model (FUCB Series)
|
MD2/1
|
MD4/1
|
MD6/1
|
MD8/1
|
MD10/1
|
MD12/1
|
||||||
|
Number of DC Inputs
|
2
|
4
|
6
|
8
|
10
|
12
|
||||||
|
Material of Box
|
Coated Iron
|
|
|
|
|
|
||||||
|
Protection Level
|
IP65
|
|
|
|
|
|
||||||
|
IK Impact Resistance Class
|
IK08
|
|
|
|
|
|
||||||
|
Max. Rated Voltage DC
|
1000V (Support 1500V)
|
|
|
|
|
|
||||||
|
DC Fuse
|
15A (Recommend 15A, support other ampere)
|
|
|
|
|
|
||||||
|
Fuse Holder
|
1000V DC 32A
|
|
|
|
|
|
||||||
|
DC Breaker
|
32A
|
63A
|
100A
|
125A
|
150A
|
200A
|
||||||
|
Surge Protection DC
|
Type II, In=20kA, Imax=40kA, Ucpv=1000VDC
|
|
|
|
|
|
||||||
|
Over-Voltage Category
|
Cat III
|
|
|
|
|
|
||||||
|
Diode for The Function of Anti-Reflux
|
Built-in
|
|
|
|
|
|
||||||
|
Connection Type DC Input
|
PG or MC4 connector, IP68
|
|
|
|
|
|
||||||
|
Input Cable Size for Negative and Positive
|
Φ4-8 mm
|
|
|
|
|
|
||||||
|
Number of DC Outputs
|
1 (Support customization for multiple outputs number)
|
|
|
|
|
|
||||||
|
Connection Type DC Output
|
PG11
|
PG11
|
PG13.5
|
PG19
|
PG19
|
PG19
|
||||||
|
Gland Connectors
|
Material: Nylon Plastic, Seals: Nitrile Rubber Buna, IP68
|
|
|
|
|
|
||||||
|
Ambient Temperature Range/Humidity
|
Temperature: -20℃~ +60℃, Humidity: 0-99%
|
|
|
|
|
|
||||||
|
Altitude
|
≤2000m Derating for above 2000m
|
|
|
|
|
|
||||||
|
Installation
|
Wall mounting/Padlockable latch
|
|
|
|
|
|
||||||
|
Optional Customized Service:
1. Support 1500V 2. Support PV MC4 connector 3. Support monitoring function 4. Support installation of DC isolator switch 5. Support 2 input 2 output, 4 input 2 output, etc. |
|
|
|
|
|
|
||||||
|
Model (FUCB Series)
|
MD14/1
|
MD16/1
|
MD18/1
|
MD20/1
|
MD22/1
|
MD24/1
|
||||||
|
Number of DC Inputs
|
14
|
16
|
18
|
20
|
22
|
24
|
||||||
|
Material of Box
|
Coated Iron
|
|
|
|
|
|
||||||
|
Protection Level
|
IP65
|
|
|
|
|
|
||||||
|
IK Impact Resistance Class
|
IK08
|
|
|
|
|
|
||||||
|
Max. Rated Voltage DC
|
1000V (Support 1500V)
|
|
|
|
|
|
||||||
|
DC Fuse
|
15A (Recommend 15A, support other ampere)
|
|
|
|
|
|
||||||
|
Fuse Holder
|
1000V DC 32A
|
|
|
|
|
|
||||||
|
DC Breaker
|
225A
|
250A
|
275A
|
300A
|
315A
|
350A
|
||||||
|
Surge Protection DC
|
Type II, In=20kA, Imax=40kA, Ucpv=1000VDC
|
|
|
|
|
|
||||||
|
Over-Voltage Category
|
Cat III
|
|
|
|
|
|
||||||
|
Diode for The Function of Anti-Reflux
|
Built-in
|
|
|
|
|
|
||||||
|
Connection Type DC Input
|
PG or MC4 connector, IP68
|
|
|
|
|
|
||||||
|
Input Cable Size for Negative and Positive
|
Φ4-8 mm
|
|
|
|
|
|
||||||
|
Number of DC Outputs
|
1 (Support customization for multiple outputs number)
|
|
|
|
|
|
||||||
|
Connection Type DC Output
|
PG25
|
PG25
|
PG29
|
PG29
|
PG29
|
PG29
|
||||||
|
Gland Connectors
|
Material: Nylon Plastic, Seals: Nitrile Rubber Buna, IP68
|
|
|
|
|
|
||||||
|
Ambient Temperature Range/Humidity
|
Temperature: -20℃~ +60℃, Humidity: 0-99%
|
|
|
|
|
|
||||||
|
Altitude
|
≤2000m Derating for above 2000m
|
|
|
|
|
|
||||||
|
Installation
|
Wall mounting/Padlockable latch
|
|
|
|
|
|
||||||
|
Optional Customized Service:
1. Support 1500V 2. Support PV MC4 connector 3. Support monitoring function 4. Support installation of DC isolator switch 5. Support 2 input 2 output, 4 input 2 output, etc. |
|
|
|
|
|
|
||||||
