Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
OBON
-
Model Number:
-
QJFBT90L2270W610
-
Dimension:
-
2270mm*610mm*90mm
-
Core:
-
EPS, cement, sand, fly ash, etc.
-
Face panel:
-
5mm fiber reinforced calcium silicate board, solid
-
Advantage:
-
Eco friendly, Scratch resistant, Lightweight, Fireproof, Soundproof
-
Usage:
-
Interior/exterior wall, roofing, ceiling, flooring
-
Applications:
-
Office buildings, Hospitals, depot, Hotels, Malls, Residences etc
-
Certificates:
-
ISO 9001,CQGC,CNAS,TUV,CE
-
Capacity:
-
64KG, just one sixth of the brick building
-
Hanging force:
-
≥50kg
-
Service Life:
-
At least 70 years
Quick Details
-
Project Solution Capability:
-
total solution for projects
-
Application:
-
Hotel
-
Design Style:
-
Traditional
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
OBON
-
Model Number:
-
QJFBT90L2270W610
-
Dimension:
-
2270mm*610mm*90mm
-
Core:
-
EPS, cement, sand, fly ash, etc.
-
Face panel:
-
5mm fiber reinforced calcium silicate board, solid
-
Advantage:
-
Eco friendly, Scratch resistant, Lightweight, Fireproof, Soundproof
-
Usage:
-
Interior/exterior wall, roofing, ceiling, flooring
-
Applications:
-
Office buildings, Hospitals, depot, Hotels, Malls, Residences etc
-
Certificates:
-
ISO 9001,CQGC,CNAS,TUV,CE
-
Capacity:
-
64KG, just one sixth of the brick building
-
Hanging force:
-
≥50kg
-
Service Life:
-
At least 70 years
Are
you still working in dirty and wet construction site, moving many heavy machines to the site? Are you still waiting for more than half a year before you can move inside to your new house? Are you still paying high salary to the workers and still unhappy about the final work? Are you still...?
You
are so lucky to be here and get to know the best substitute to traditional concrete wall, it is called eps cement sandwich panel. Comparison with other wall materials, this one is more stronger and longer life span with many advantages and wide usages.
| Firstly, let me tell you the what exactly is it and its structure. |
OBO
N

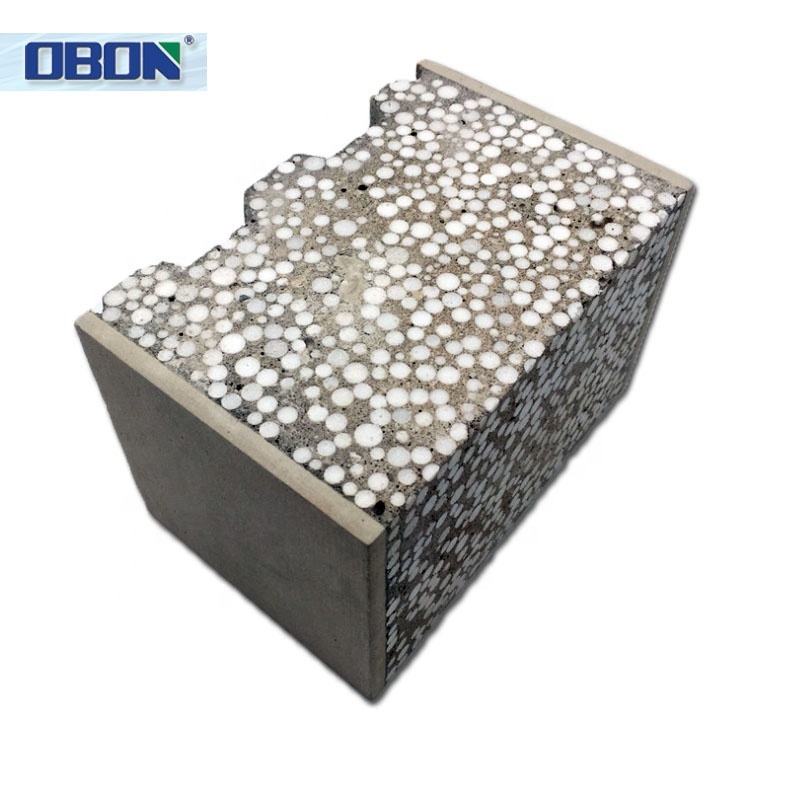

EPS (Expanded polystyrene board) wall Panel is composed of exterior panels and interior core filling, to form a non-load-bearing light-weight composite wall panel. The exterior panels on both sides are 5mm calcium silicate board, and the middle core is filled with polystyrene beads & cement or ceramsite, polystyrene beads & cement.
| Secondly, the following is the specifications of our eps cement sandwich panels. |
|
Length (mm) |
Width (mm) |
Thickness (mm) |
Applications | Appearance |
| 2270/2440 | 610 | 60 | 1. Floor & Roofing | 1. 5mm calcium silicate board as face panel |
| 75 | ||||
| 90 | ||||
| 100 | 2.Exterior &Interior wall | 2. EPS polystyrene & cement as core | ||
| 120 | ||||
| 150 | ||||
| 180 | 3.Well pipe,fire control and equipment room | 3. 100% no asbestors | ||
|
90 (half-ceramsite) |
||||
|
120 (half-ceramsite) |
4.Ultra-high wall and Unique walls | 4. Solid heart | ||
|
90 (with reinforcing bar) |
| Thirdly, it is very important for you to understand all the advantages of panels. |
| Forthly, i will show you the wide usages of our eps cement sandwich panels. |
|
Sixthly, we are very experienced in manufacturing and installations, and we have done lots of projects domestic and overseas. |
