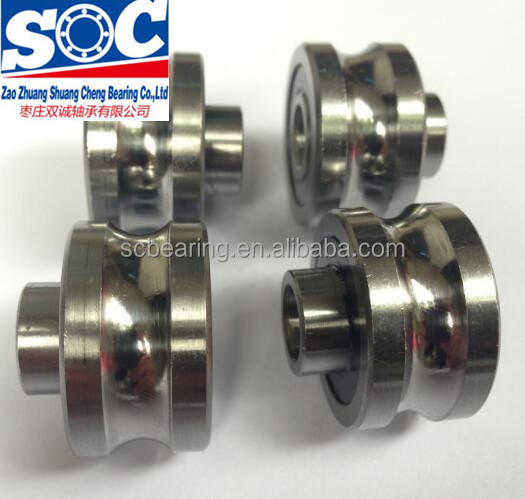

Linear system U groove roller Bearing SG35 with eccentric bushings
-
Application:
-
Embroidery machine,Linear rail,testile machine
-
Material:
-
Chrome Steel Gcr1 , Stainless steel
-
Sample:
-
Avaliable
-
Precision rating:
-
ABEC1 ABEC3 ABEC5 ABEC7 ABEC9
-
seals type:
-
rubber seal,steel seal
-
Service:
-
OEM Customized Services
-
Vibration level:
-
V1 V2 V3 V4
-
Noise Level:
-
Z1,Z2,Z3,Z4
Quick Details
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
-
Bore Size:
-
5 - 8 mm
-
Precision Rating:
-
ABEC1 ABEC3 ABEC5 ABEC7 ABEC9
-
Number of Row:
-
Single row
-
Model Number:
-
SG35
-
Seals Type:
-
ZZ 2RS
-
Place of Origin:
-
Shandong, China
-
bearing model number:
-
SG35
-
Product name:
-
Linear system U groove roller Bearing SG35 with eccentric bushings
-
Application:
-
Embroidery machine,Linear rail,testile machine
-
Material:
-
Chrome Steel Gcr1 , Stainless steel
-
Sample:
-
Avaliable
-
Precision rating:
-
ABEC1 ABEC3 ABEC5 ABEC7 ABEC9
-
seals type:
-
rubber seal,steel seal
-
Service:
-
OEM Customized Services
-
Vibration level:
-
V1 V2 V3 V4
-
Noise Level:
-
Z1,Z2,Z3,Z4
Linear system U groove roller Bearing SG35 with eccentric bushings
U groove Track roller bearing guide wheel bearing Embroidery machine track roller bearing
Track rollers with Gothic Arch Groove-type SG
1. SG Series Rollers are the most widely-use and economy product among the linear motion track rollers and they can suite to the cylindrical track.
2. There are two contact points between the roller and track,so the contact function is favorable
3. Rollers feature double row angular contact ball bearing its internal structure design and a thick-walled outer ring,so rollers can accommodate higher loads
4. Roller are made of high-quality bearing steel,processed by heat treatment and precision grind and are filled with a long service life,high-Grade and multi-purposes grease.Rollers mount the metal shield(KDD) or Rubble seal(NPP) to prevent the dust.
Shuangcheng Bearing also can provide the rollers with concentric or eccentric pivot. Some types of the rollers can be made from the corrosion Resistance steel.
U groove guide wheel bearing is the most widely-use and economy product among the linear motion track rollers, and they can suit to the cylindrical track.
Various structure: WV,LV,V,LFR,LR,W Series
Sealed type: Z, ZZ, RS, 2RS, 2RS1, NPP, KDD, P, PP, N, NR
Material: GCr15,100Cr6,Chrome Steel,steel ,stainless steel
Features:
U GROOVE BEARING SG TRACK ROLLERS BEARING FEATURE
1. High Allowable speed,Low resistance,long service life
For series SG Rollers,the surface profile of the outer ring is designed as the GOTHIC ARCH.
When rollers running,three are tow contact points with an angle of 60 degrees between the roller and track.So the friction resistance is low and the loads is in equality,thus avoiding the stresses concentration and edge effect caused by the error from installation and manufacture,making the track system has the characteristics of high speed,low energy consumption,long service life and minimum noise level.
2. Easy Installation
As rollers assembled the concentric or eccentric pivot,installation can be made convenient. To adjust the eccentric one ’ s eccentricity,these rollers can get the fitting preload
3. Smooth running,minimum error and lower noise level
SHUANGCHENG BEARING special manufacture equipment of machine and inspection facilities made accuracy in the profile of roller. Mature manufacture techniques and critical inspection procedure make all rollers good in the kea(Radial run outer)of outer ring and roundness of working surface,so the guide system in motion is smooth running,minmum error and lower running noise level
Specification
VW series roller bearing according to difference of seal type can be divided into iron cover seal (no suffix, such as: W1) and rubber cover seal (name of X suffix, such as: W2X) two kinds
If using stainless steel material, the name will be the words with the SS, such as: W3SSX
|
Model |
Weight |
Size (mm) |
||||
|
|
≈ (g) |
dw |
d |
D |
C |
B |
|
SG15 |
8 |
6 |
5 |
17 |
8 |
5.75 |
|
SG15-10 |
9 |
10 |
5 |
17 |
8 |
5.75 |
|
SG20 |
25 |
8 |
6 |
24 |
11 |
7.25 |
|
SG25 |
49 |
10 |
8 |
30 |
14 |
8.5 |
|
SG35 |
136 |
12 |
12 |
42 |
19 |
12.5 |
|
SG15N |
8 |
6 |
5 |
17 |
8 |
5.75 |
|
SG20N |
25 |
8 |
6 |
24 |
11 |
7.25 |
|
SG25N |
49 |
10 |
8 |
30 |
14 |
8.5 |
|
SG35N |
136 |
12 |
12 |
42 |
19 |
12.5 |
|
LFR 50/5-4 N |
8 |
4 |
5 |
16 |
7 |
5 |
|
LFR 50/5-5 |
8 |
5 |
5 |
17 |
7 |
5 |
|
LFR 50/5 N |
8 |
6 |
5 |
17 |
7 |
5 |
|
LFR 50/8 N |
25 |
6 |
8 |
24 |
11 |
7 |
|
LFR 50/8-8 N |
25 |
8 |
8 |
24 |
11 |
7 |
|
Designation |
|
|
|
A1 |
A2 |
Chamfer r/min |
|
Weight |
|
|
|
Bore |
O.D. |
Width |
|
|
mm |
Load |
|
|
|
|
mm |
mm |
mm |
|
|
|
|
|
|
|
|
D1 |
D |
B |
A1 |
A2 |
R/min |
Cw(KN) |
Cow(KN) |
Kg |
|
W1 |
4.763 |
19.56 |
7.87 |
7.9. |
11.86 |
0.3 |
2.2 |
1 |
11 |
|
W1X |
4.763 |
19.56 |
7.87 |
7.93 |
11.86 |
0.3 |
2.2 |
1 |
11 |
|
W2 |
9.525 |
30.73 |
11.1 |
12.7 |
18.24 |
0.3 |
4.9 |
2.5 |
38 |
|
W2X |
9.525 |
30.73 |
11.1 |
12.7 |
18.24 |
0.3 |
4.9 |
2.5 |
38 |
|
W3 |
12 |
45.72 |
15.88 |
19.05 |
26.98 |
0.6 |
9.4 |
4.9 |
130 |
|
W3X |
12 |
45.72 |
15.88 |
19.05 |
26.98 |
0.6 |
9.4 |
4.9 |
130 |
|
W4 |
15 |
59.94 |
19.05 |
25.4 |
34.93 |
1 |
14.8 |
8.2 |
280 |
|
W4X |
15 |
59.94 |
19.05 |
25.4 |
34.93 |
1 |
14.8 |
8.2 |
280 |
|
RM1ZZ |
4.763 |
19.56 |
7.87 |
7.9. |
11.86 |
0.3 |
2.2 |
1 |
11 |
|
RM1 2RS |
4.763 |
19.56 |
7.87 |
7.93 |
11.86 |
0.3 |
2.2 |
1 |
11 |
|
RM2ZZ |
9.525 |
30.73 |
11.1 |
12.7 |
18.24 |
0.3 |
4.9 |
2.5 |
38 |
|
RM2 2RS |
9.525 |
30.73 |
11.1 |
12.7 |
18.24 |
0.3 |
4.9 |
2.5 |
38 |
|
RM3ZZ |
12 |
45.72 |
15.88 |
19.05 |
26.98 |
0.6 |
9.4 |
4.9 |
130 |
|
RM3 2RS |
12 |
45.72 |
15.88 |
19.05 |
26.98 |
0.6 |
9.4 |
4.9 |
130 |
|
RM4ZZ |
15 |
59.94 |
19.05 |
25.4 |
34.93 |
1 |
14.8 |
8.2 |
280 |
|
RM4 2RS |
15 |
59.94 |
19.05 |
25.4 |
34.93 |
1 |
14.8 |
8.2 |
280 |
Product Overviews
Embroidery machine bearing U groove track roller bearing SG10 SG15 SG20 SG25 SG35
Bearing SG15 SG15-10 SG20 SG20 SG25 SG35 SG15N SG20N SG25N SG35N roller bearing
Embroidery machine track roller bearing SG15 SG20 SG25 SG35 U Groove bearing for linear guide rail
Embroidery machine bearing SG15 bearing 51797 with red seal for textile machinery bearing
SG15 bearing 51797 with red seal for textile machinery bearing
concentric bush U groove roller Bearing with eccentric bushings
Textile machinery bearing conveyor bearing SG15 SG15-10 SG20 SG20 SG25 SG35 SG15N SG20N SG25N SG35N
SG15 SG15-10 SG20 SG20 SG25 SG35 SG15N SG20N SG25N SG35N U Groove Track Roller Bearing for linear rail
bearings with concentric bush for guideway,Rollers with
eccentric pivot,eccentric bearing
SG15 SG15-10 SG20 SG20 SG25 SG35 SG15N SG20N SG25N SG35N U groove Track roller bearing with screw
Application:
SG series of guide roller and guide roller bearing performance of the LFR series, the unique "countersunk head" design makes SG series guide roller is mainly applied to flat, particularly compact guide to installation space, and form a complete set of guide roller fixed bearing loading guide roller after not highlight or rarely highlights to bearing plane. Use on the embroidery machine, numerical control equipment.
u groove bearing is widely used in home appliances, testile machine , etc.
SG Series Embroidery machine track roller bearing models:
SG15 SG15-10 SG20 SG20 SG25 SG35 SG15N SG20N SG25N SG35N LFR50/5-4N LFR50/5N LFR50/5 LFR50/8N LFR50/8-8N
LV Series track roller bearing: LV 20/7 ZZ, LV 20/8 ZZ, LV20/10ZZ, LV 202-38 ZZ, LV 202-40 ZZ, LV 201 ZZ, LV 201-14.2RS, LV 202-41 ZZ, LV 203 ZZ, LV 204-57 ZZ, LV 204-58 ZZ
