- Product Details
- {{item.text}}
Quick Details
-
Market Segement:
-
Engineering transportation
-
Engine Capacity:
-
< 4L
-
Gross Vehicle Weight:
-
1550
-
Drive Wheel:
-
4x4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Field installation, commissioning and training, Online support, Field maintenance and repair service, Shop warranty
-
Brand Name:
-
YISHAN
-
Place of Origin:
-
Shandong, China
-
Forward Shift Number:
-
3
-
Dimensions (L x W x H) (mm):
-
L3200*W1450*H1500
-
Cargo Tank Dimension:
-
1700x1600mm
-
Color:
-
Customer's Request
-
Engine:
-
CHANGCHAI
-
TIRE:
-
10/75-15.3
-
Type:
-
Front Lift Dump Truck
-
Driving type:
-
4x4 Wheel Drive
-
Transmission:
-
Automatic Shift Transmission
-
Product name:
-
Dumper Truck
-
Name:
-
Tipper Truck 4x4
-
MOQ:
-
1 Unit
-
Delivery:
-
30 Days
Quick Details
-
Condition:
-
New
-
Horsepower:
-
18
-
Emission Standard:
-
Euro 2
-
Market Segement:
-
Engineering transportation
-
Engine Capacity:
-
< 4L
-
Gross Vehicle Weight:
-
1550
-
Drive Wheel:
-
4x4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Field installation, commissioning and training, Online support, Field maintenance and repair service, Shop warranty
-
Brand Name:
-
YISHAN
-
Place of Origin:
-
Shandong, China
-
Forward Shift Number:
-
3
-
Dimensions (L x W x H) (mm):
-
L3200*W1450*H1500
-
Cargo Tank Dimension:
-
1700x1600mm
-
Color:
-
Customer's Request
-
Engine:
-
CHANGCHAI
-
TIRE:
-
10/75-15.3
-
Type:
-
Front Lift Dump Truck
-
Driving type:
-
4x4 Wheel Drive
-
Transmission:
-
Automatic Shift Transmission
-
Product name:
-
Dumper Truck
-
Name:
-
Tipper Truck 4x4
-
MOQ:
-
1 Unit
-
Delivery:
-
30 Days
Product Description

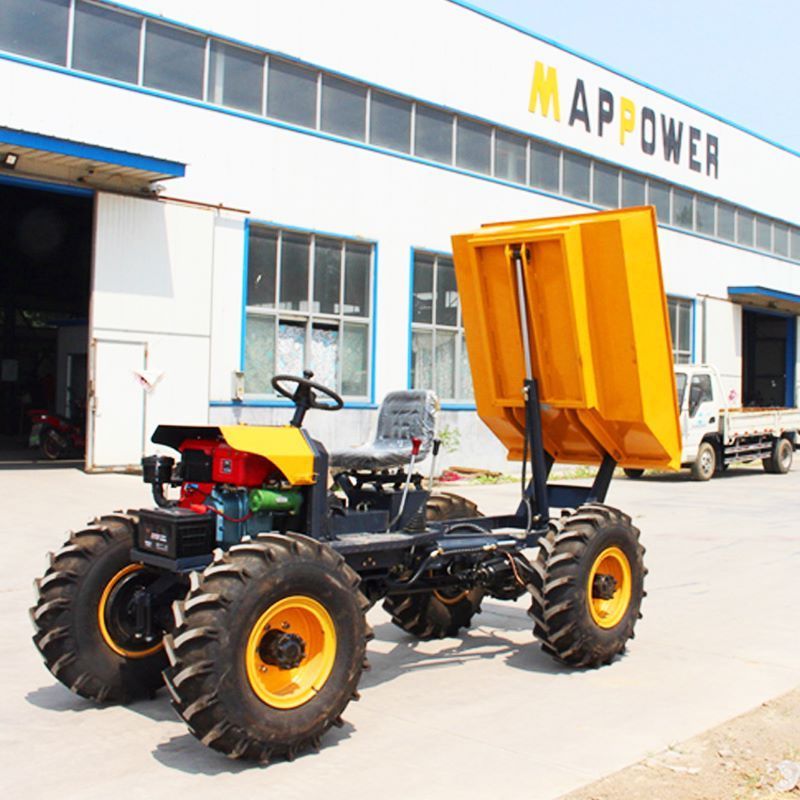

Palm transporter 1-5ton truck dumper
1.Medium-sized engineering dumper 0.8ton,4*4drive, Full Hydraolic steering,can unload materials smoothly by strong hydraolic pressure unloading syatem. The product is stable performance, simple opreation,low fuel consumption,widely usea in constrction engineeringmmunicipal engineering,urban and rural landscape,road traffic ,the station terminals,irrigation and water conservancy and various types of coal mines,battlefields,cement plant,condtaction sites,etc.especially suitable for narrow site loading and short distance running sand,gravel,coal,slag,loam.garbage and etc.
2.Off road wider types as option ,can work in muddy and bumpy roads.
|
SPECIFICATIONS FOR 5T SITE DUMPER
|
|
|
|
|||
|
Engine
|
Engine model
|
Water cooled,Direct injection
|
Four-stroke,in-line
|
|||
|
|
No. of cylinders
|
|
1
|
|||
|
|
Net Power
|
kw/hp
|
13.2/18
|
|||
|
Main performance parameters
|
Main performance parameters
|
|
|
|||
|
|
Travel speed (max. & min.)
|
km/h
|
<=35
|
|||
|
|
Max. Gradeability
|
°
|
30
|
|||
|
Hydraulic system
|
Hydraulic system
|
MPa
|
16
|
|||
|
|
Main pump
|
Mpa
|
16
|
|||
|
|
Rate flow
|
L/M
|
65
|
|||
Product Description
Payload: 800kg
Bucket capacity: 0.5cbm
Engine: CHANGCHAI ZS1105, Water cooler with fan type. Single cylinders diesel engine
Engine power: 18KW
dumper tire:10/75-15.3
Bucket capacity: 0.5cbm
Engine: CHANGCHAI ZS1105, Water cooler with fan type. Single cylinders diesel engine
Engine power: 18KW
dumper tire:10/75-15.3
|
Model
|
ZY100 MINI DUMPER
|
|
|
Drive Model
|
4X4
|
|
|
Payload
|
800KG
|
|
|
Length(mm)
|
3200
|
|
|
Width(mm)
|
1450
|
|
|
Height(mm)
|
1500
|
|
|
Wheel Base(mm)
|
2000
|
|
|
Wheel Tread
|
|
|
|
Front Wheel(mm)
|
1470
|
|
|
Rear Wheel(mm)
|
1470
|
|
|
Min Ground Clearance(mm)
|
≥268
|
|
|
Dry Mass(Kg)
|
1180
|
|
|
Engine
|
|
|
|
Model
|
CHANGCHAI ZS1105
|
|
|
Type
|
Water cooler with fan type. Single cylinders diesel engine
|
|
|
12 Hours Rated Power(rpm)
|
18HP
|
|
|
Tyres
|
|
|
|
Front Wheel
|
10/75-15.3
|
|
|
Rear Wheel
|
10/75-15.3
|
|
|
Brake
|
Drum type 4 Wheel brake
|
|
|
Steering Gear
|
Hydraulic follow-up Service
|
|
|
Gear Box With
|
4 forward speeds and 2 reversed speed
|
|
|
Skip Capacity (m3)
|
1.5
|
|
|
Minimum Turning Radius (m)
|
4
|
|
|
Tipping System
|
Hydraulic Tipping hopper
|
|
|
Max, Grade Ability (%)
|
30
|
|
|
Electric Starting
|
Yes
|
|
|
Container
Loading
|
|
|
|
Wirder tire (Option)
|
31*15.5-15
|
|
|
20GP container can be loaded with
|
2Unit
|
|
|
40GP container can be loaded with
|
4Unit
|
|
Products Description
Packing & Delivery
Delivery : within 20 workdays after receipt payment
Shipping : FOB qingdao China , CIF or CFR is available as well.
Shipping : FOB qingdao China , CIF or CFR is available as well.
