Quick Details
-
Size:
-
10870 x 2459 x 1550 mm
-
Place of Origin:
-
China
-
Trailer Size:
-
46ft Heavy Duty Straight Beam Terminal Container Chassis
-
Trailer Application:
-
Container / Heavy Container / Tanker Container
-
Trailer Material:
-
ASTM A572 Grade 50 or equivalent (Q345)
-
Trailer Axle:
-
Square Drum Axle brand FUWA / BPW
-
Trailer Suspension:
-
Mechanical Tandem / Air Spring / Bogie
-
Trailer King Pin:
-
Jost Brand 2" and 3.5"
-
Trailer Tire:
-
12R22.5 Tubeless Triangle / Michelin
-
Container Twist Locks:
-
Corner Guider and Locks
-
Trailer Brake:
-
Dual air brake system, WABCO relay valve, OPTIONS: ABS/EBS
-
Trailer Painting:
-
Trailer Painting
-
OE NO.:
-
GET9402TJZPORT
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
35T
-
Brand Name:
-
G.E.T VEHICLES
-
Size:
-
10870 x 2459 x 1550 mm
-
Place of Origin:
-
China
-
Trailer Size:
-
46ft Heavy Duty Straight Beam Terminal Container Chassis
-
Trailer Application:
-
Container / Heavy Container / Tanker Container
-
Trailer Material:
-
ASTM A572 Grade 50 or equivalent (Q345)
-
Trailer Axle:
-
Square Drum Axle brand FUWA / BPW
-
Trailer Suspension:
-
Mechanical Tandem / Air Spring / Bogie
-
Trailer King Pin:
-
Jost Brand 2" and 3.5"
-
Trailer Tire:
-
12R22.5 Tubeless Triangle / Michelin
-
Container Twist Locks:
-
Corner Guider and Locks
-
Trailer Brake:
-
Dual air brake system, WABCO relay valve, OPTIONS: ABS/EBS
-
Trailer Painting:
-
Trailer Painting
-
OE NO.:
-
GET9402TJZPORT
360° Details & Ordering Guide
Ordering Guide
1. Confirm from the Model of the trailer with Economy and Luxury with different Mail Trailer Parts Axle and Suspension
2. Confirm the Trailer Design , Skeleton , Flat bed , Platform, LowBed Semi Trailer or Dump Trailer Mafi Trailer Etc
3. The Capacity and Dimension of the Trailers
4. Axle, Suspension , Tire Wheels brand and size confirmation.
5. Most Important Trailer Brake System choose and confirm the Information of the Primer Mover -Tractor Truck.
6. Order placing and start producing .
CUSTOMIZED DESIGN
3D DESIGNING - CATIA
• The optimization for durability calculation and accuracy increasing
• Assembly processing display
2D DESIGNING - AUTOCAD
• Description, overview and detail calculation of products
• Dimension and tolerance display
BEST STEEL CONSTRUCTION
Material choose the High strength low alloy steel with 350 mpa yield strength is used for welded I-beam and 235 mpa in other fabricated parts and the original ALCOA aluminum for the tanks and dry logistic box.
AXLE SYSTEM
High quality axle from world brand of BPW, SAF TO China Famous brand FUWA, L1 with strong bearing capacity from 9T to 20T and ABS options to fit full demand of requirements.
SUSPENSION SYSTEM
High quality suspension from world brand of BPW, SAF TO China Famous brand FUWA, L1, from Leaf-spring plate type, bogie type to Air-Spring type and rubber type to fit different requirements of the cargo delivery condition
TIRES AND RIMS
High quality tires from world brand of MICHELIN, BRIDGESTONE, PIRELLI to China Brand DOUBLE COIN, TRI-ANGLE, Coupled with RIMS
from STEEL to ALUMINUM.
from STEEL to ALUMINUM.
SAFETY CONTROL SYSTEM
World brand brake system WABCO Valves with ABS or EBS to keep the trailers under control at any cases.
Trailer & Tanker Shipment
Main Parameters
|
40ft 45ft 53ft
Skeleton Heavy Duty

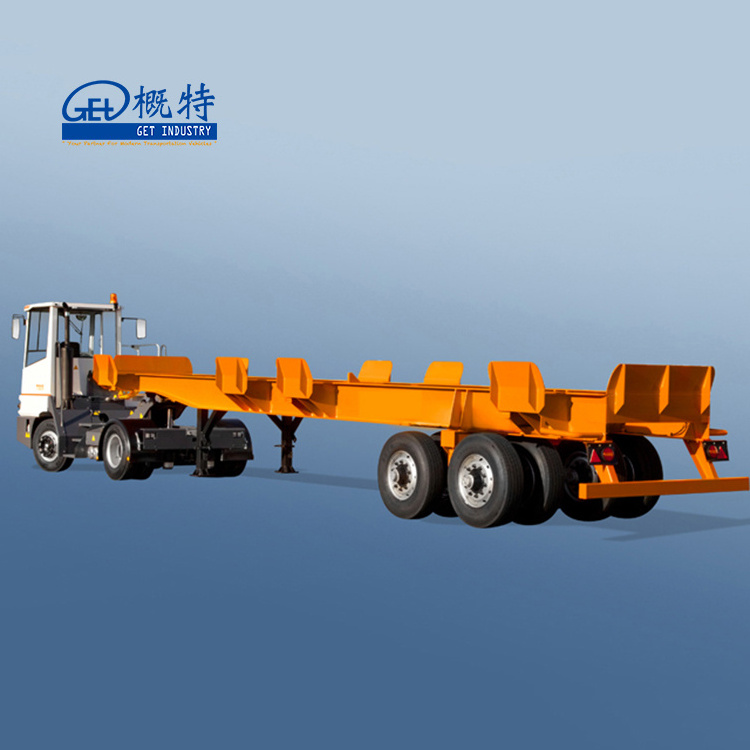

Semi ISO Container Chassis
For container Transit in Terminal
|
|
|
|
|||
|
1. Model Of The Truck Trailers (Oem No.)
|
|
|
GET9402TJZPORT
|
|||
|
This chassis is designed for transporting a 40’ 45' 53' ISO container and two 20' ISO contianer with Corner Guider and Locks to fit for the Termianl Crane Vertial Loading and Quick demand, it meets all D.O.T., A.A.R., ANSI, T.O.F.C., FMVSS, SAE and TTMA specifications.
|
|
|
|
|||
|
2. General Parameter Of The Container Truck Trailer
|
|
|
|
|||
|
Overall Length
|
46 ft
|
14,136 mm
|
|
|||
|
Overall Width
|
9 ft
|
2,740 mm
|
|
|||
|
Overall Height
|
5 ft
|
1,550 mm
|
|
|||
|
Fifth Wheel Height
|
4 ft
|
1,200 mm
|
|
|||
|
Kingpin Location
|
4 ft
|
1,100 mm
|
From the rear face of the front bolster
|
|||
|
Landing Gear Location
|
8 ft
|
2,420 mm
|
From the kingpin center
|
|||
|
Axle Spread
|
4 ft
|
1,310 mm
|
|
|||
|
Tandem Location
|
30 ft
|
9,100 mm
|
From Kingpin to Front Suspension Hanger
|
|||
|
Tare Weight
|
16,540 Ibm
|
7,500. kg
|
|
|||
|
Payload
|
99,210 Ibm
|
45,000. kg
|
|
|||
|
3. Container Chassi Steel Structure And Trailer Components
|
|
|
|
|||
|
Trailer Main beam
|
Deep: 450 mm (17.7")
Auto-welt Main Beam With High strength low alloy steel with 350 MPa yield hot-rolled I-beam (Q345) |
|
|
|||
|
Flatbed Trailer Floor
|
1/8" (3mm) Thickness ASTM A572 grade 50 Checked Steel Plate
Options: 1/5" ( 5mm) |
|
|
|||
|
Kingpin Upper coupler
|
1/4” pick up plate with JOST 2” diameter square type king pin per SAE standard
|
|
|
|||
|
Flatbed Front Bolster
|
ASTM A572 grade 50 steel U form channel with 7'' wide x 6'' high x 5/16 thick open section, 3/8'' top plate
|
|
|
|||
|
Rear Bolster
|
ASTM A572 grade 50 steel U form channel with 7'' wide x 7'' high x 5/16 thick open section, 3/8'' top plate
|
|
|
|||
|
Rear Bumper
|
100x100mm (4” x 4” ) square tube step with taper “H” section vertical member
|
|
|
|||
|
|
Bar is welded to uprights and main beam.
|
|
|
|||
|
Corner Guider and Locks
|
4 Couples of corner Locks at the side and 2 couples of Corner Guider at the head and tail
To Guide the Contianer Locate to the container Chassis from Vertical position and Secure the container Horizontal and longitudinal Movements are restricted during moving.It is for Terminal Container Chassis Only |
|
|
|||
