Quick Details
-
Magnification:
-
25x
-
Objective Lens Diameter:
-
120mm
-
Exit pupil diameter:
-
5mm
-
Exit pupil distance:
-
20mm
-
Field Of View (at 1000m):
-
3°(45m/1000m)
-
Color:
-
Silver
-
Waterproof properties:
-
Yes IPX7
-
Horizontal rotation Angle:
-
Unlimited free rotation
-
Resolution:
-
2.4
Quick Details
-
Place of Origin:
-
Yunnan, China
-
Brand Name:
-
Kunguang & OEM
-
Model Number:
-
25X120
-
Magnification:
-
25x
-
Objective Lens Diameter:
-
120mm
-
Exit pupil diameter:
-
5mm
-
Exit pupil distance:
-
20mm
-
Field Of View (at 1000m):
-
3°(45m/1000m)
-
Color:
-
Silver
-
Waterproof properties:
-
Yes IPX7
-
Horizontal rotation Angle:
-
Unlimited free rotation
-
Resolution:
-
2.4
Product Description:
|
Optical Performance |
||
|
Magnification |
25 × |
|
|
Exit Pupil Diameter |
Φ5mm |
|
|
Exit Pupil Distance |
20mm |
|
|
Field of View |
3° (52m@1000m) |
|
|
Resolution |
2.4″ |
|
|
Objective Lens Diameter |
φ120mm |
|
|
Adjustable Range of Eye Distance |
63mm |
|
|
Electrical Performance |
||
|
Power Supply |
DC4.2V |
|
|
Standby Time |
3 months |
|
|
Runtime |
1 month (depends on the battery capacity and the frequency of use.) |
|
|
Time Control |
It’s adjustable from 5 to 9995 seconds. It’s set to 60 seconds before leaving the factory. |
|
|
Other Functions |
1. The time can be accumulated when coins are inserted continuously. 2. Voltage indicator: when the display is flashing “- -”, it means the voltage is low and you need to change a new battery immediately. 3. Counting function will count the number of coins you’ve inserted, save the number and it won’t be reset when power failure occurs. 4. Recognition feature: when the diameter and thickness of the coin you’re inserting differ from the preset diameter and thickness, the coin won’t be inserted and press the “Return” button to get back your money. |
|
|
Operating Temp. |
-10 ℃ ~ + 50 ℃ |
|
|
Structural Performance |
||
|
Rotation Angle |
360° |
|
|
Wiggle Angle |
± 40° |
|
|
Size (of Main Body) |
610mm(L) ×400mm(W) ×320mm(H) |
|
|
Overall Height |
1460mm |
|
|
Overall Weight |
65kg |
|

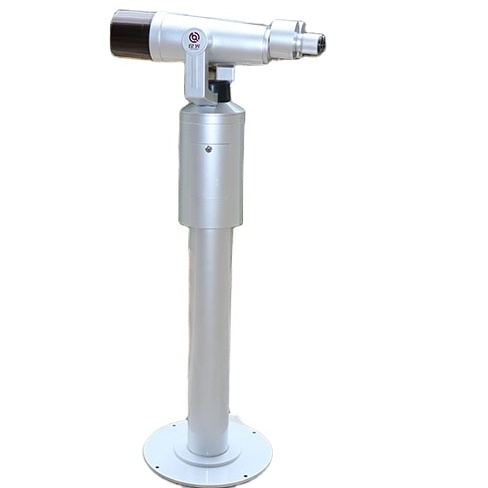

Large-diameter Objective Lens
Large-diameter objective lens not only increases the field of view but also the brightness. The BAK4 prism features FMC broadband green film makes images sharper.
Big Eyepiece Design
A large field angel provides you a more comfortable viewing experience.
High Quality Materials
The main body made of cast aluminum combined with the pillar and base made of cast steel make the telescope applicable to all weather conditions.
U-type Bracket Design & Rubber Cushion
The U-type bracket design allows you to rotate the main body 360 degrees with no stutter. The rubber cushion allows you to wiggle it 45 degrees without bumping against any painting.
Reasonable Height
The height of the whole telescope is 1460mm, the L/W/H of the main body is 610*400*320mm respectively.
