Quick Details
-
Weight (KG):
-
540
-
Power (kW):
-
3
-
Dimension(L*W*H):
-
accordingly
-
Type:
-
EXTRACTOR
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
extraction machine Material:
-
SUS304 or SUS316L
-
Heating source:
-
Steam or hot water or hot oil
-
Slag discharge:
-
Pneumatic slag discharge door
-
Agitator:
-
Can be with agitator ( Anti-explosion type motor)
-
Proportion of herb and solvent:
-
1: 8 or 1:9 or 1:10 ( for reference )
-
Name:
-
Chinz Natural pigment extraction machine/extractor/ extracting tank
-
Extraction Type:
-
Steam Distillation
-
Keywords 1:
-
extraction machine
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Chinz
-
Model Number:
-
TQ
-
Weight (KG):
-
540
-
Power (kW):
-
3
-
Dimension(L*W*H):
-
accordingly
-
Type:
-
EXTRACTOR
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
extraction machine Material:
-
SUS304 or SUS316L
-
Heating source:
-
Steam or hot water or hot oil
-
Slag discharge:
-
Pneumatic slag discharge door
-
Agitator:
-
Can be with agitator ( Anti-explosion type motor)
-
Proportion of herb and solvent:
-
1: 8 or 1:9 or 1:10 ( for reference )
-
Name:
-
Chinz Natural pigment extraction machine/extractor/ extracting tank
-
Extraction Type:
-
Steam Distillation
-
Keywords 1:
-
extraction machine
Products Description

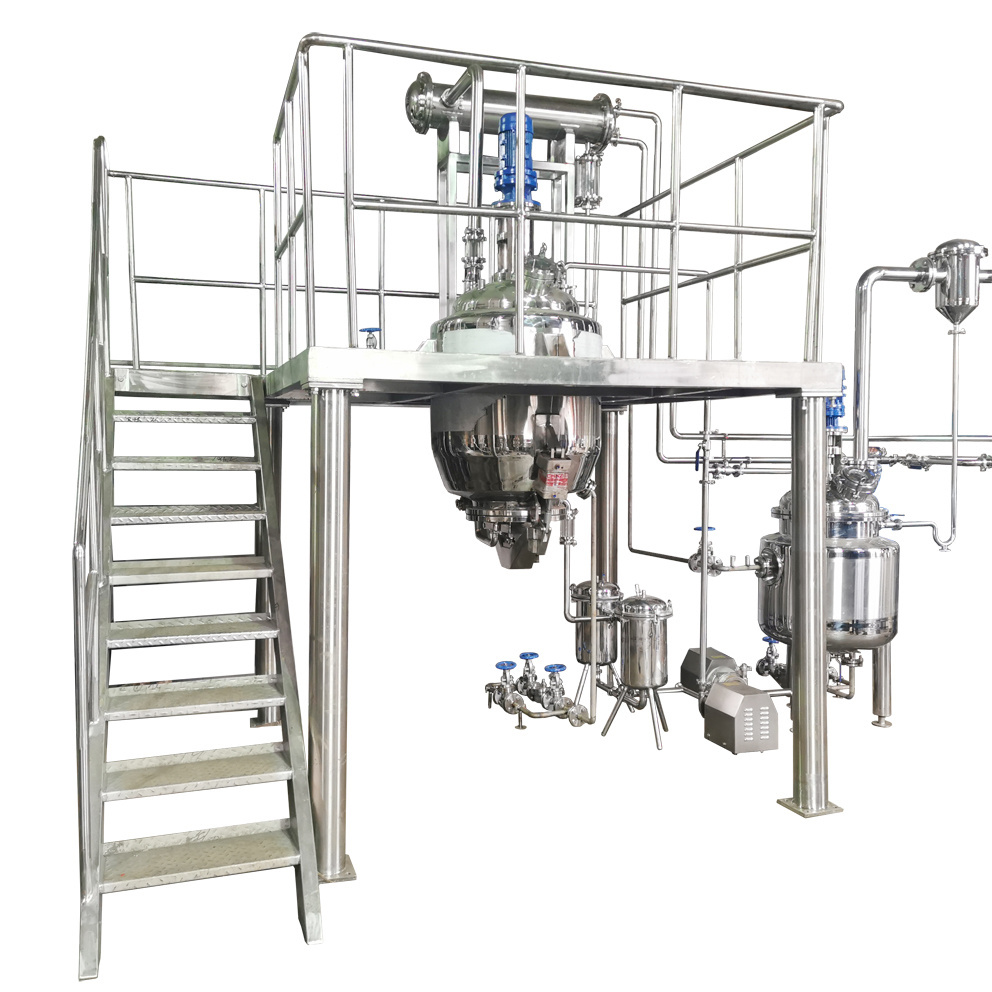

Natural pigment ultrasonic honey extract tank herb extractor machine for sale
Usage of multi-function extractor Multi-function upside-down taper extractor is the equipment which is widely used in medicine,
biology, food, chemical leaching extraction. Can provide the material of water extraction, alcohol extraction solvents in volatile
oil extraction and recycling solvent in dross, which is applicable to the diacolation, warm immersion, reflux, circulation
impregnation, pressure or reduced pressure leaching and so on many kinds of craft. Having the advantages of high efficiency, easy
to operate.
Features of multi-function extractor Our company research and development of new multi-function extractor slag linkage control
system consists of four cylinder, double cylinder to open the door, double cylinder contraction, and designs the safety interlock,
slag door sealing adopts pneumatic seal design, easily open the door, no leakage, safe and reliable operation.
biology, food, chemical leaching extraction. Can provide the material of water extraction, alcohol extraction solvents in volatile
oil extraction and recycling solvent in dross, which is applicable to the diacolation, warm immersion, reflux, circulation
impregnation, pressure or reduced pressure leaching and so on many kinds of craft. Having the advantages of high efficiency, easy
to operate.
Features of multi-function extractor Our company research and development of new multi-function extractor slag linkage control
system consists of four cylinder, double cylinder to open the door, double cylinder contraction, and designs the safety interlock,
slag door sealing adopts pneumatic seal design, easily open the door, no leakage, safe and reliable operation.
Product Paramenters
|
Model
|
TQ-0.5
|
TQ-1
|
TQ-2
|
TQ-3
|
TQ-4
|
TQ-6
|
TQ-8
|
TQ-10
|
|||||||
|
Volume (L)
|
600
|
1200
|
2300
|
3200
|
4300
|
6300
|
8500
|
11000
|
|||||||
|
Design pressure in tank(Mpa)
|
0.09
|
|
|
|
|
|
|
|
|||||||
|
Jacket design pressure(Mpa)
|
0.3
|
|
|
|
|
|
|
|
|||||||
|
Manhole diameter (mm)
|
400
|
400
|
400
|
500
|
500
|
500
|
500
|
500
|
|||||||
|
Heating area(m2)
|
1.7
|
3
|
4.7
|
6.3
|
8
|
12
|
14
|
16
|
|||||||
|
Condensation area(m2)
|
4
|
5
|
8
|
10
|
15
|
20
|
25
|
30
|
|||||||
|
Cooling area(m2)
|
0.5
|
1
|
1
|
1.5
|
2
|
2
|
3
|
4
|
|||||||
|
Slag door diameter(mm)
|
500
|
800
|
800
|
800
|
1000
|
1400
|
1400
|
1600
|
|||||||
|
Steam consumption(kg/h)
|
160
|
245
|
325
|
345
|
430
|
645
|
720
|
850
|
|||||||
|
Water consumption(T/h)
|
6
|
8
|
10
|
15
|
20
|
25
|
30
|
40
|
|||||||
|
Motor Power(KW)
|
2.2
|
3.0
|
4.0
|
5.5
|
5.5
|
7.5
|
11
|
15
|
|||||||
|
Stirring speed(r/min)
|
36
|
36
|
36
|
36
|
36
|
36
|
36
|
36
|
|||||||
