Quick Details
-
Brand Name:
-
greatcity, greatcity
-
Voltage:
-
220v 380v
-
Power:
-
4kw
-
Dimension(L*W*H):
-
1520*1400*1130mm
-
Weight:
-
1450
-
name:
-
threading rolling machine
-
Maximum diameter:
-
54mm
-
Minimum diameter:
-
3mm
-
Main axis transmission power:
-
4kw
-
After-sales Service Provided:
-
Video technical support
-
Product name:
-
Rod Metal Thread Rolling Machine
-
Function:
-
Hydraulic Thread Rolling Machine
-
Usage:
-
Thread Rolling Machine 200mm
Quick Details
-
Place of Origin:
-
Hebei, China
-
Application:
-
thread rolling
-
Production Capacity:
-
2000pcs per hour
-
Brand Name:
-
greatcity, greatcity
-
Voltage:
-
220v 380v
-
Power:
-
4kw
-
Dimension(L*W*H):
-
1520*1400*1130mm
-
Weight:
-
1450
-
name:
-
threading rolling machine
-
Maximum diameter:
-
54mm
-
Minimum diameter:
-
3mm
-
Main axis transmission power:
-
4kw
-
After-sales Service Provided:
-
Video technical support
-
Product name:
-
Rod Metal Thread Rolling Machine
-
Function:
-
Hydraulic Thread Rolling Machine
-
Usage:
-
Thread Rolling Machine 200mm

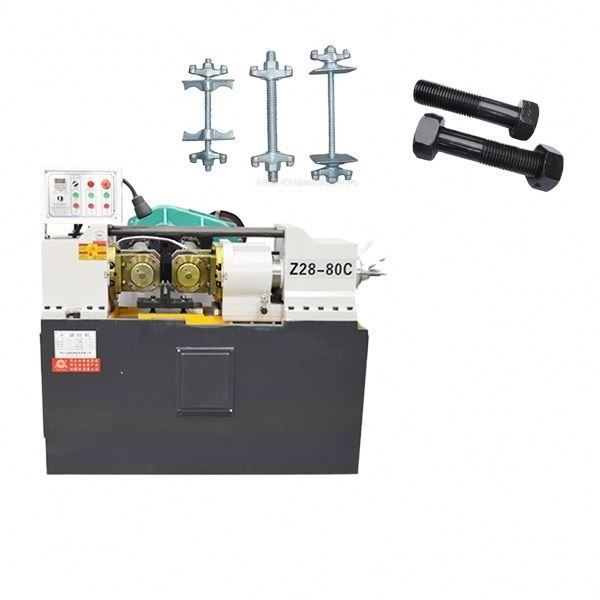

Fully automatic small hydraulic threading rolling machine two-axis thread rolling machine knurling machine
|
Specification of Z28- 40 thread rolling machine |
|||
|
Pressure of roller max |
12 0kn |
Hydraulic time |
0.1-99.9s |
|
Working Dia |
Φ 4-36 mm |
Rest time |
0.1-99.9s |
|
Thread distance Pitch max |
0.5-4.0 mm |
Rotary Speed of Main Shaft |
39/49/66/82 rmp |
|
Roller outer Diameter max |
Φ 120-170 mm |
Rolling Power |
4 kw |
|
Inner diameter of roller |
Φ 54 mm |
Hydraulic Power |
2.2 kw |
|
roller width max |
1 0 0mm |
Weight |
1150kg |
|
Dip Angle of Min Shaft |
± 6 ° |
diemension |
1 35 0X1 3 00X1 30 0mm |
threading rolling machine
Sales hotline :0086-18832961559
Rita meng
40 rebar threading machine high speed thread rolling machine show
Other models of rebar thread rolling machine
Certificate of high speed thread rolling machine
What is the high speed thread rolling machine
Fully automatic small hydraulic threading rolling machine two-axis thread rolling machine knurling machine 40 rebar threading machine Mainly used for all kinds of external thread, including the common thread, trapezoidal thread and modulus thread. It also can do the rolling process, forming, slidabrading, knurling etc..
Apply for all kinds of carbon steel, alloy steel and non-ferrous metals, the elongation is more than 10%, the compressive strength is less than 100 KGF/m m2.
Fully automatic small hydraulic threading rolling machine two-axis thread rolling machine knurling machine Characteristic:
1.40 rebar threading machine can make the thead form of good quality.And it It has the high precision.
2.It can be used to process scerw and rebar.The rebar processed by the machine has the good overall mechanical.It can make the tensile strength increased by 20%-30%,the fatigue strength increased by 40%-60%,corrosion resistance increased by 50%-200%.Mechanical properties of rebar connector reached and more than international standards.
3.It works safe and good.It can works all day long,and can save steel and energy.
4.It adopt innovative design and advanced technology,alos it has the high precision and easy to operate.
What is the Specifications of high speed thread rolling machine
Customers visit us_high speed thread rolling machine
Customers feedback_high speed thread rolling machine
Packaging:
Stable wooden package protects 40 rebar threading machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and longterm cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
