Quick Details
-
Model Number:
-
B014240GC1LZ
-
CRI (Ra>):
-
75
-
Input Voltage(V):
-
D24V
-
Lamp Luminous Flux(lm):
-
22-24LM/LED
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-40 - 60
-
Product Name:
-
3014 led rigid bar
-
LED Chip:
-
SMD3014
-
CCT:
-
2700k/3000K/4000K/6000K
-
LED Quantity:
-
240 LEDs/m
-
PCB Size:
-
1000*14mm
-
IP Rating:
-
IP20
-
Beam Angle:
-
120 Degree
-
Cutable:
-
Every 6LEDs
-
Lamp Power:
-
14-20W/M
Quick Details
-
Color Temperature(CCT):
-
2700-6000K
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
iPixel LED
-
Model Number:
-
B014240GC1LZ
-
CRI (Ra>):
-
75
-
Input Voltage(V):
-
D24V
-
Lamp Luminous Flux(lm):
-
22-24LM/LED
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-40 - 60
-
Product Name:
-
3014 led rigid bar
-
LED Chip:
-
SMD3014
-
CCT:
-
2700k/3000K/4000K/6000K
-
LED Quantity:
-
240 LEDs/m
-
PCB Size:
-
1000*14mm
-
IP Rating:
-
IP20
-
Beam Angle:
-
120 Degree
-
Cutable:
-
Every 6LEDs
-
Lamp Power:
-
14-20W/M

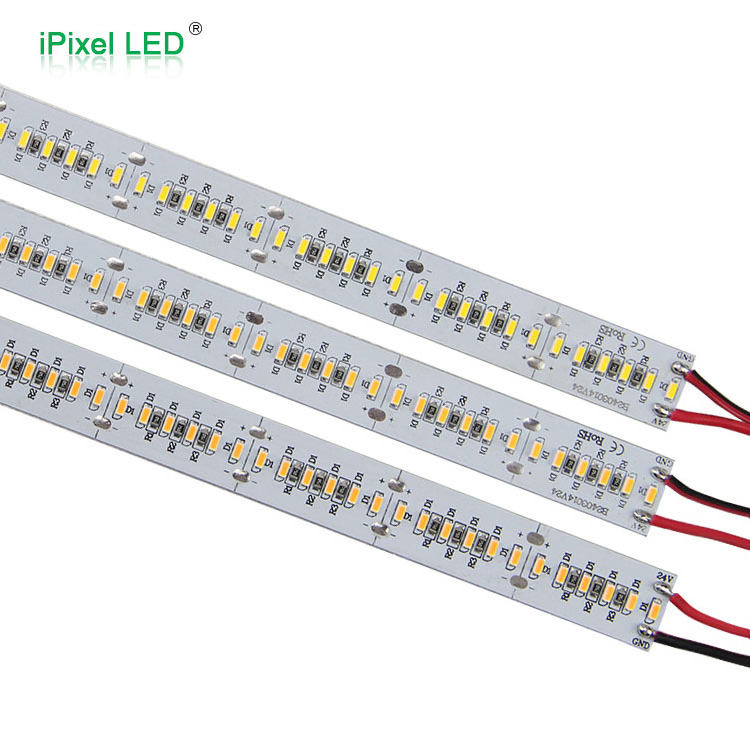

High lumens 3014 smd led rigid bar, 240 leds smd 3014 white/warm white 24V aluminum led hard strip
- This is a regular aluminum light bar with
aluminum PCB
-
DC24V, 14.4W/m,
we used 240pcs high brightness
SMD 3014 LED
- Non-waterproof
-
Cutable every 60leds
- each bar attached 2 pcs metal holder for installation use
| Product Name | SMD3014 led rigid bar |
| LED type | SMD3014 |
| LED Qty | 240LEDs/m |
| CCT | 2700K/3000K/4000K/6000K |
| Voltage | D24V |
| Power | 14.4W/m |
| PCB size | 1000x14mm |
| Brand | iPixel LED |
| Warranty | 2 Years |
| IP Rate | IP20 |
CCT:2700K
CCT:3000K
CCT:4000K
CCT:2700K,3000K,4000K compared
PCB wide 14mm:
2700K
3000K
4000K
