Quick Details
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
abena
-
Voltage:
-
22kw
-
Dimension(L*W*H):
-
12000*1800*1700mm
-
Weight:
-
13000 kg
-
Marketing Type:
-
Hot Product 2022
-
Product name:
-

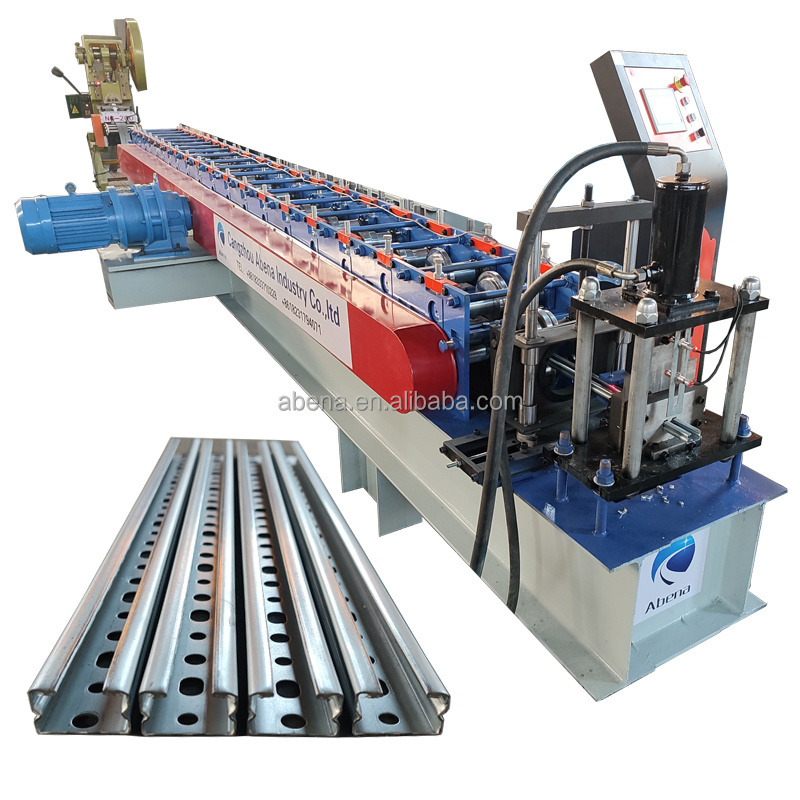

Solar Panel Support Uni strut C Channel Roll Forming Machine
-
Leveling machine:
-
7 rollers for leveling
-
Raw Material Thickness:
-
1.5-2.5mm
-
Max raw material width:
-
300mm
-
Feeding servo motor:
-
2.9kw
-
Forming steps:
-
about 28 roller stations
-
Keywords:
-
Slotted Strut Channel Roll Forming Machine
-
Main power with reducer:
-
18.5kw WH Chinese famous
-
Material of rollers:
-
Cr12mov, Quench HRC58-62 Plated Chrome
-
Material of shaft:
-
45# Advanced Steel (Diameter: 90mm), thermal refining
Quick Details
-
Type:
-
Slotted Strut Channel Roll Forming Machine
-
Tile Type:
-
Colored Steel
-
Production Capacity:
-
12 m/min
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
abena
-
Voltage:
-
22kw
-
Dimension(L*W*H):
-
12000*1800*1700mm
-
Weight:
-
13000 kg
-
Marketing Type:
-
Hot Product 2022
-
Product name:
-
Solar Panel Support Uni strut C Channel Roll Forming Machine
-
Leveling machine:
-
7 rollers for leveling
-
Raw Material Thickness:
-
1.5-2.5mm
-
Max raw material width:
-
300mm
-
Feeding servo motor:
-
2.9kw
-
Forming steps:
-
about 28 roller stations
-
Keywords:
-
Slotted Strut Channel Roll Forming Machine
-
Main power with reducer:
-
18.5kw WH Chinese famous
-
Material of rollers:
-
Cr12mov, Quench HRC58-62 Plated Chrome
-
Material of shaft:
-
45# Advanced Steel (Diameter: 90mm), thermal refining
Products Description
|
Technical parameter
|
|
|
||
|
Machine parts list
|
Name
|
Quantity
|
||
|
1
|
3T hydraulic un-coiler
|
1 set
|
||
|
2
|
Leveling device NC 300mm
|
1 set
|
||
|
3
|
Servo feeding device 300mm
|
1 unit
|
||
|
4
|
Press machine JH21-63
|
1 unit
|
||
|
5
|
Main roll forming machine
|
1 set
|
||
|
6
|
Servo following cutting
|
1 set
|
||
|
7
|
Control box
|
1 set
|
||
|
8
|
Out tables
|
2 units
|
||
|
9
|
Spare parts
|
1 package
|
||
|
10
|
Punching die set
|
1 set
|
||
|
11
|
Safety cover
|
1 set
|
||
|
12
|
Cutting blade
|
1 set
|
||
|
13
|
Suitable Plate Material
|
thickness 1.5-2.5mm, Galvanized steel and stainless steel
|
||
|
14
|
Working Speed
|
0-10meters /min adjustable
|
||
|
15
|
Forming Steps
|
about 28 stations
|
||
|
16
|
Material of Roller
|
Cr12mov, Quench HRC58-62 Plated Chrome
|
||
|
17
|
Material of Shaft
|
45# Advanced Steel (Diameter: 90mm), thermal refining
|
||
|
18
|
Driven system
|
Gearbox driven
|
||
|
119
|
Main Power with reducer
|
18.5KW WH Chinese Famous
|
||
