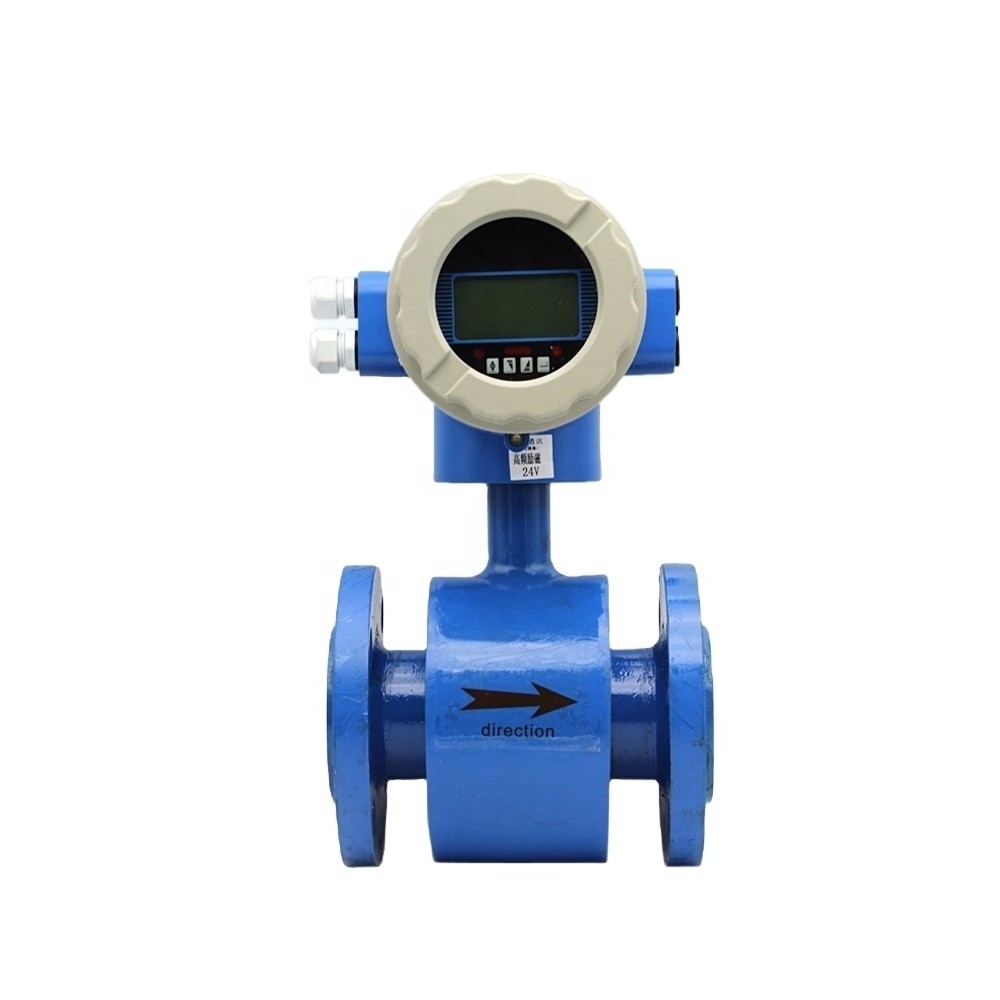

Quick Details
-
Brand Name:
-
GAIMC
-
Model Number:
-
GMF100
-
Flow rate range:
-
0.1~15m/s
-
Liner material:
-
PTFE, aluminum oxide ceramic
-
Accuracy:
-
class 0.5
-
Conductive rate:
-
≥50 us/cm
-
Flange and housing material:
-
20# carbon steel, 304 stainless steel
-
Electrode:
-
316L stainless steel, Hastelloy alloy B, Hastelloy alloy C, etc.
-
Ingress protection:
-
IP65, IP67, IP68
-
Power supply:
-
220VAC/ 24VDC/battery
-
Output:
-
4-20mA /RS485/ Pulse
-
Application:
-
conductive liquids in pipes, such as water, acids
Quick Details
-
Type:
-
Electromagnetic flowmeter
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
GAIMC
-
Model Number:
-
GMF100
-
Flow rate range:
-
0.1~15m/s
-
Liner material:
-
PTFE, aluminum oxide ceramic
-
Accuracy:
-
class 0.5
-
Conductive rate:
-
≥50 us/cm
-
Flange and housing material:
-
20# carbon steel, 304 stainless steel
-
Electrode:
-
316L stainless steel, Hastelloy alloy B, Hastelloy alloy C, etc.
-
Ingress protection:
-
IP65, IP67, IP68
-
Power supply:
-
220VAC/ 24VDC/battery
-
Output:
-
4-20mA /RS485/ Pulse
-
Application:
-
conductive liquids in pipes, such as water, acids
Products Description
What is a magnetic flow meter used for?
Magnetic flowmeters measure the velocity of conductive liquids in pipes, such as water, acids, caustic, and slurries. Magnetic flowmeters can measure properly when the electrical conductivity of the liquid is greater than approximately 5μS/cm.
Get an Instant Quote Now !
You need more than just a single magnetic flowmeter, you need a veteran supplier who has been in the field for 10+ years to build your brand and grow your profits. Let GAIMC help you achieve business success.
Features
What are the advantages of our magnetic flow meter?
1.
Forward and reverse flow measurement.
2.
Measure pulp and slurry, water and wastewater, food and beverage, acid and alkaline.
3.
Multiple output communication (pulse, 4-20MA, RS485), convenient to collect signals from different devices .
4.
A variety of electrodes and linings are available for a variety of complex working conditions.
5.
It is unaffected by changes in temperature, density, viscosity, concentration and electrical conductivity.
Details Images
Consumers deserve a better magnetic flowmeter.
No matter what style of magnetic flowmeter you want, based on our extensive experience, we can manufacture it.
In particular,
We also support custom colors,
which makes the final product can be distinguished from the vast majority of magnetic flowmeter on the market.
Product Parameters
|
Model
|
GMF100
|
GMF200
|
GMF400
|
||
|
Type
|
Integrated, Remote type
|
Sanitary type
|
Insertion type
|
||
|
Diameter (mm)
|
DN10-2200
|
DN10-100
|
DN300-3000
|
||
|
Accuracy
|
±0.5%
|
±0.5%
|
±2.5%
|
||
|
Linning
|
Rubber, PTFE, etc
|
Rubber, PTFE, etc
|
/
|
||
|
Electrode
|
316L，HB，HC，Ti，Ta，Pt，WC
|
|
|
||
|
Output
|
4-20mA, pulse, relay
|
|
|
||
|
Communication
|
RS485 (MODBUS)
|
|
|
||
|
Power supply
|
220VAC/24VDC/lithium battery
|
|
|
||
|
Protection grade
|
IP65,IP67,IP68
|
|
|
||
|
Explosion-Proof
|
EXdeibmbIICT3-T6
|
/
|
/
|
||
|
Installation
|
Flange/thread
|
Tri-clamp
|
Insertion
|
||
Application & Customer Photos
Where can you use a magnetic flow meter?
Magnetic flow meters are well suited for a variety of applications across a range of industries including pulp and paper, metals and mining, water and wastewater, food and beverage, chemical and petrochemical and oil and gas.
