- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
USENDA
-
Place of Origin:
-
Guangdong, China
-
Maximum resolution::
-
1024x768
-
Pixel Pitch(mm)::
-
0.297(H)x0.297(V)
-
Brightness (nits)::
-
450cd/㎡
-
Contrast::
-
450:1
-
Composite video input::
-
2 (BNCx2)
-
Composite video output::
-
2 (BNCX2)
-
Ypbpr/s-video::
-
1,1
-
product name::
-
small size pc lcd monitor
Quick Details
-
Brightness:
-
400cd/m
-
Contrast Ratio:
-
2000:1
-
Panel Type:
-
TFT
-
Brand Name:
-
USENDA
-
Place of Origin:
-
Guangdong, China
-
Maximum resolution::
-
1024x768
-
Pixel Pitch(mm)::
-
0.297(H)x0.297(V)
-
Brightness (nits)::
-
450cd/㎡
-
Contrast::
-
450:1
-
Composite video input::
-
2 (BNCx2)
-
Composite video output::
-
2 (BNCX2)
-
Ypbpr/s-video::
-
1,1
-
product name::
-
small size pc lcd monitor

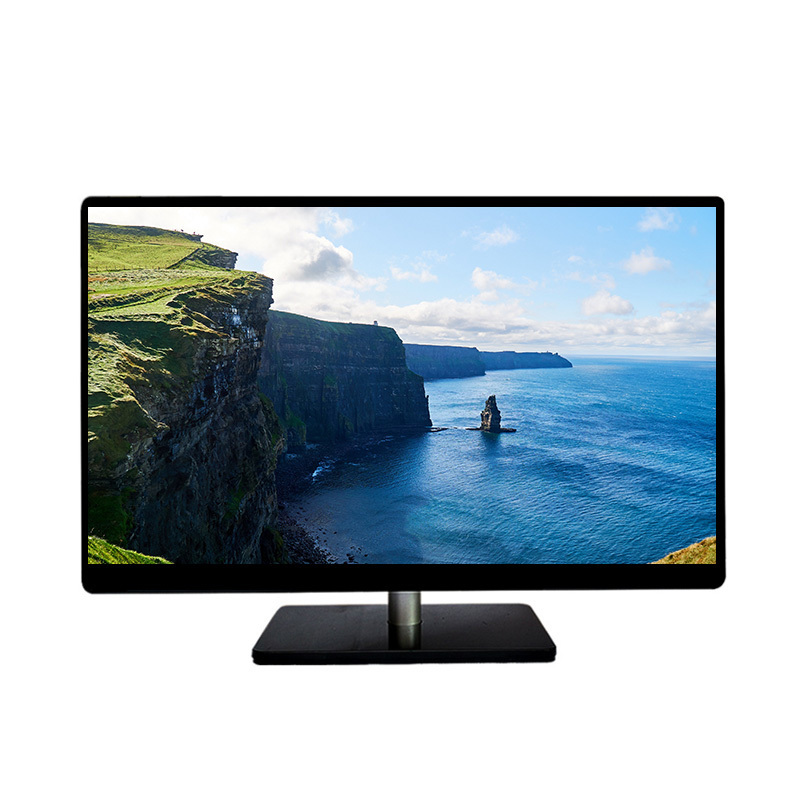

15 inch small size pc lcd monitor for CCTV monitor
Detail function:
Available Size: 15" , 17", 19", 22"
1. Lastest anti-glare design
2. Slim and lightweight design, easy to use, beautiful.
3. High-contrast, high brightness
4. With automatic elimination of blur function, protect the LCD screen of the long-term use
5. 16.7M colors, the screen is more natural, delicate.
6. 8ms response time, speed, screen non-tailing.
7. 170° wide visual angle screen, display ratio 4:3
8. 12C bus, the latest control circuit, machine high reliability, good scalability
9 . Multi-level menu display function
10. Built-in power supply, power consumption is low, LCD screen up to 6 thousand hours life.
11. Built-in anti-glare glass screen
12. Adopt 3D digitial processing circuit
13. Rich docking feature AV1/AV2-Video/YPbPr/VGA/HDMI)Rich docking feature
14. Ultra-quiet cooling fan design, machine live longer
15. Using metal case, no radiation
|
Model No. |
UD-PCM15A |
|
Panel size |
15" TFT-LCD |
|
Display area(mm)/mode |
4:3 |
|
Maximum resolution |
1280x1024 |
|
Display color |
16.7M |
|
Pixel Pitch(mm) |
0.297(H)x0.297(V) |
|
Brightness (nits) |
450cd/m2 |
|
Contrast |
1000:1 |
|
Visual angle |
150°/160° |
|
Response time |
5ms |
|
Vertical frequency |
56-75KHZ |
|
Life(hrs) |
60,000(hrs) |
|
Input and output |
|
|
Composite video input |
2 (BNC×2) |
|
YPbPr input |
1 (BNC×3) |
|
S-video |
1 (optional) |
|
VGA |
1 |
|
H DMI |
1 |
|
Composite video output |
1 (BNC×1) |
|
Video |
|
|
Color system |
PAL/NTSC/SECAM |
|
OSD display( screen menu display) |
|
|
Menu language |
Chinese/English ( multiple language option required) |
|
Power |
|
|
Power supply |
AC100V ~ 240V,50/60Hz |
|
Maximum power consumption |
<= 35W |
|
Standby power consumption |
<3W |
|
Temperature |
|
|
Working temperature |
0 °C ~ 50 °C |
|
Storage temperature |
- 20 °C ~60 °C |
|
Working humidity |
10% ~ 90 % |
|
Storage humidity |
10% ~ 90 % |
|
Appearance |
|
|
Body dimension(Lx W x H)mm |
329*258*58mm |
|
Panel color/appearance |
White, black, customized |
|
Case Material |
Plastic |
|
Installation |
desktop /wall-mounted |
Products show:
1.
Payment: T/T , 35% deposits before production, 65% balance to be paid before dleiverying
(Western Union or Moneygram are welcomed)
2.Production lead time for 10~50pcs: 20days, 50~100pcs:35days
3.
Sample can be delivered in 3days
4.Shipping freight are quoted under your requests
5.Shipping port: Shenzhen, HK
6.Discounts are offered based on order quantities
7.MOQ:1pc
Package
Our certificate
Company introduction and products range:
Shenzhen Usenda Digital Technology Limited Company, also named Tanda Int'l Electronics Limited, is a high-tech enterprise integrating the research and development, production and sales. We are engaged in LCD screens, LCD monitors, advertising players, all-in-one PCs, DID video wall products, etc. Products of our own brand are widely used in highways, railways, civil aviation scheduling command centers, army command centers, oil fields, factories, mines, electric powers, water conservancies, prisons, border defenses, banks, ...
