Quick Details
-
Brand Name:
-
Panpower
-
Model Number:
-
AT 20 Series
-
Work Time (h):
-
24 hours
-
Max PV Power:
-
720W
-
Max PV Voltage:
-
50VDC
-
Warranty:
-
12 months
-
Charge mode:
-
PWM Mode
-
System voltage:
-
12V/24V Auto
-
Charging current:
-
10A-30A
-
Battery type:
-
Lead Acid
-
Charge way:
-
Three Stage Charging
-
USB output:
-
5V/2A USB*2
-
OEM:
-
Accepted
-
Protection Function:
-
Overcharge Overdischarge Overload Shortcircuit Protection
-
IP:
-
32
Quick Details
-
Type:
-
PWM
-
Application:
-
Charger Controller, Solar System Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Panpower
-
Model Number:
-
AT 20 Series
-
Work Time (h):
-
24 hours
-
Max PV Power:
-
720W
-
Max PV Voltage:
-
50VDC
-
Warranty:
-
12 months
-
Charge mode:
-
PWM Mode
-
System voltage:
-
12V/24V Auto
-
Charging current:
-
10A-30A
-
Battery type:
-
Lead Acid
-
Charge way:
-
Three Stage Charging
-
USB output:
-
5V/2A USB*2
-
OEM:
-
Accepted
-
Protection Function:
-
Overcharge Overdischarge Overload Shortcircuit Protection
-
IP:
-
32

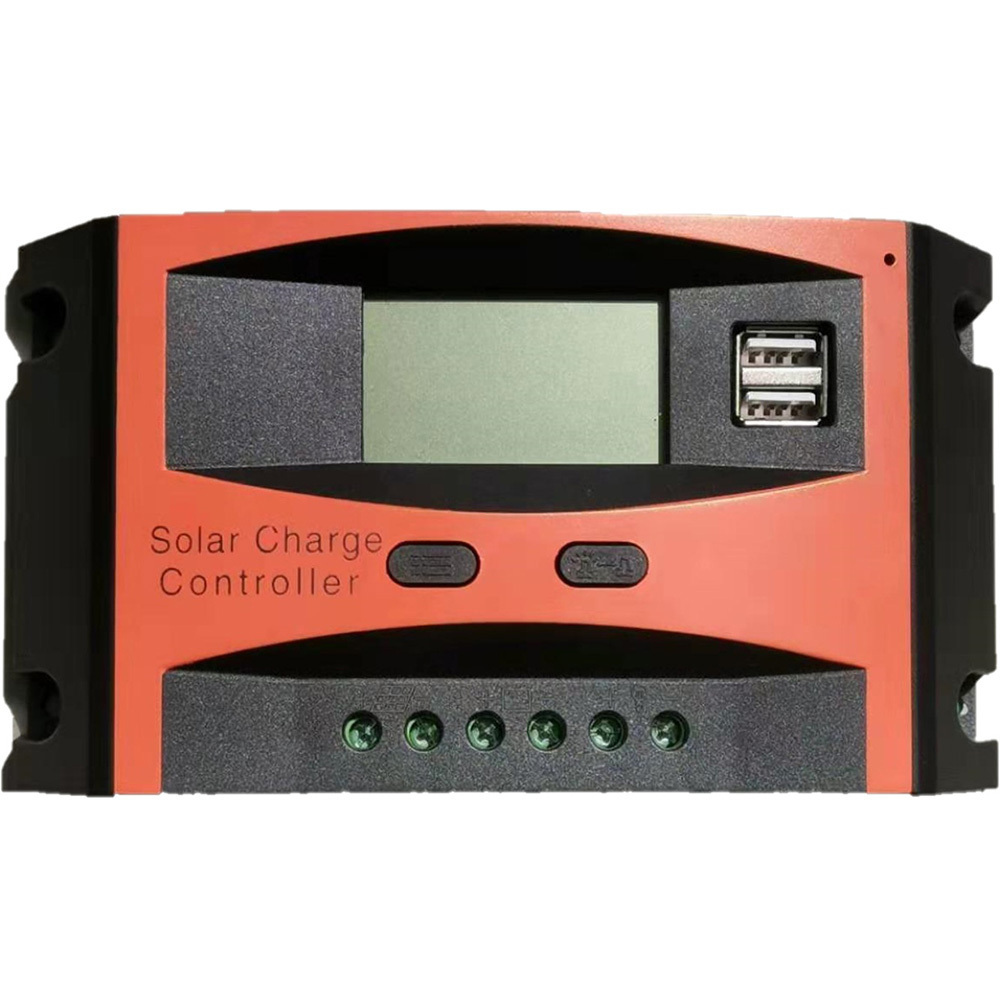

pwm solar charge controller charger 12v 24v 48v 5a 10a 15a 20a 30a Max Light Auto Acid Power Battery
•Solar charge controller
•Control mode: PWM control
•Charging current: 10A, 20A, 30A
•
System voltage 12V/24V/48V
•
Fully 4-stage PWM charge management.
•
One-key setting,digital display, auto memory function.
•
Dual mosfet Reverse current protections, low heat productions.
•Automatically adjust the charging and discharging
•Protection: Over-charge ,over-discharge protection functions designed for battery bank.
|
Model |
AT20 |
||
|
Charge mode |
PWM Multi-stage(bulk.absorption.float.equalized) |
||
|
Rated voltage |
12V/24V AUTO |
||
|
Charge current |
10A |
20A |
30A |
|
Max solar input |
<50VDC |
||
|
Float charge |
13.8V/27.6V |
||
|
Discharge stop |
10.7V/21.4V |
||
|
Discharge reconnect |
12.5V/25.0V |
||
|
USB output |
5V2A |
||
|
Self-consume |
<10mA |
||
|
Working temperature |
-35 ℃ to +60 ℃ |
||
|
Protection Degree |
IP32 |
||
|
Dimension |
168x90x45mm |
||
|
Weight |
300g |
||
