Quick Details
-
Production Capacity:
-
13000L
-
Power:
-
151kw
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
8050/2350/2900mm
-
Product name:
-
Asphalt Distributor
-
Model:
-
XLS1203
-
Spray Volume:
-
0.2-3kg/m2
-
Tank Volume:
-
8000L
-
Spray Width:
-
6000mm
-
Size:
-
8050/2350/2900mm
-
Machine weight:
-
16000kg
-
Auxiliary Engine Power:
-
125/2600kW(r/min)
Quick Details
-
Max. Paving Thickness:
-
500mm
-
Weight:
-
9990 kg
-
Engine Brand:
-
TOP BRAND
-
Production Capacity:
-
13000L
-
Power:
-
151kw
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
8050/2350/2900mm
-
Product name:
-
Asphalt Distributor
-
Model:
-
XLS1203
-
Spray Volume:
-
0.2-3kg/m2
-
Tank Volume:
-
8000L
-
Spray Width:
-
6000mm
-
Size:
-
8050/2350/2900mm
-
Machine weight:
-
16000kg
-
Auxiliary Engine Power:
-
125/2600kW(r/min)
Product Details

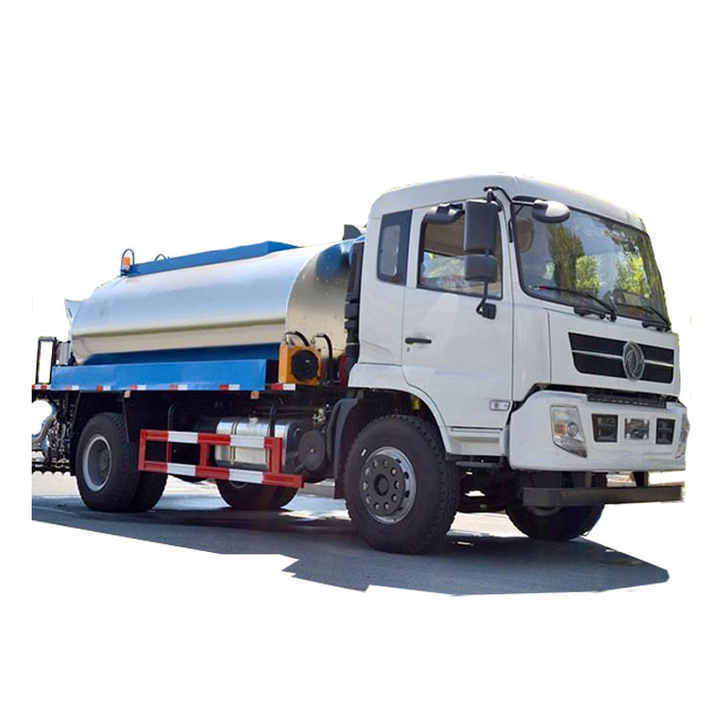

XCMG XLS603Y Bitumen Asphalt Spreader Asphalt Distributor Truck for Sale
XLS1203 intelligent asphalt distributor is an automation product specialized in spraying emulsified asphalt, diluted asphalt, hot asphalt, modified asphalt. The product controls the whole process of asphalt spraying through the controller, thus the asphalt spraying amount is not affected by the change of speed and the high-precision spraying is achieved. It is mainly used for construction and maintenance projects of highway, all grades of roads and municipal roads, suitable distributing construction of prime coat, bonding layer, upper and lower sealing layers of different grades of road surface.
Product Description
Product parameters
|
Product model
|
|
Unit
|
XLS1203Y
|
|
|
Working performance parameter
|
Max. spraying width
|
m
|
4.5 (6 as option)
|
|
|
|
Asphalt spraying amount
|
kg/㎡
|
0.2-3.0
|
|
|
|
Deviation of spraying amount
|
kg/㎡
|
±0.07
|
|
|
|
Capacity of asphalt tank
|
m³
|
6
|
|
|
|
Operating speed
|
km/h
|
1.5-15
|
|
|
Chassis performance parameter
|
Chassis model
|
-
|
ZZ1107G421CD1
|
|
|
|
Engine type
|
-
|
ISF3.8S3168
|
|
|
|
Engine power
|
kW/（r/min）
|
125/2600
|
|
|
|
Driving mode
|
-
|
4×2
|
|
|
|
Maximum traveling speed
|
km/h
|
95
|
|
|
|
Fuel tank capacity
|
L
|
120
|
|
|
|
Curb weight
|
kg
|
4265
|
|
|
|
Total mass
|
kg
|
9990
|
|
|
PTO
|
Type
|
|
HW45ZC-N302
|
|
|
|
Output torque
|
N.m
|
450
|
|
|
Overall dimension parameter
|
Minimum ground clearance
|
mm
|
220
|
|
|
|
Approach Angle/Departure Angle
|
°
|
20/12
|
|
|
|
Overall dimension
|
mm
|
8050×2350×2900
|
|
