Quick Details
-
Power supply:
-
15+-3VDC
-
Gain:
-
20db
-
MOQ:
-
50PCS
-
Warranty:
-
12 months
-
Product name:
-

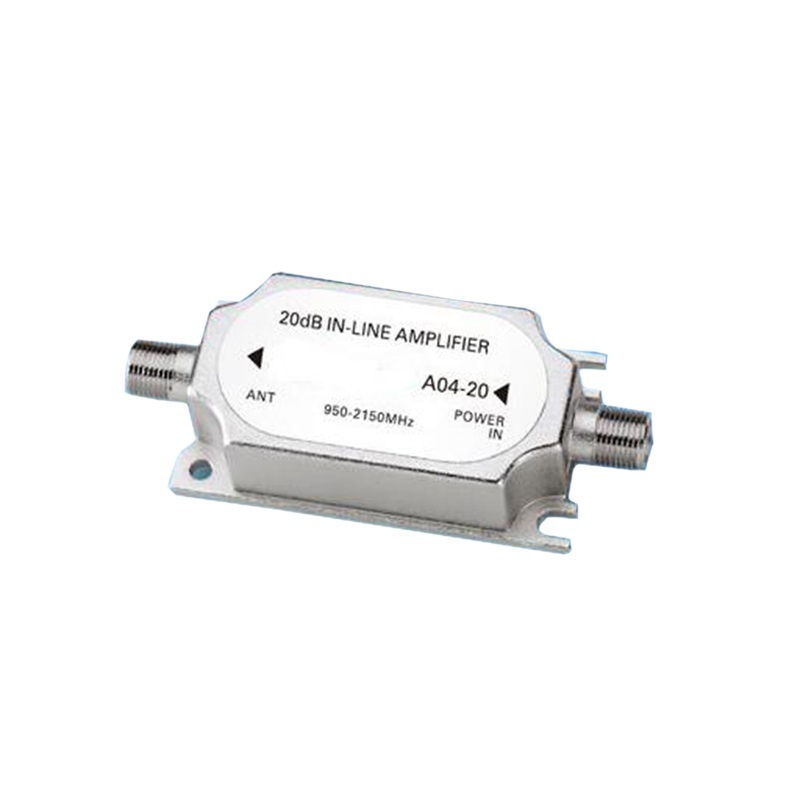

20db In Line Amplifier 2150mhz Satellite Signal Amplifier
-
Material:
-
Zinc die-cast housing
-
Frequency range:
-
950-2150MHz
-
DC power passing:
-
500mA(max.)
-
Delivery time:
-
Around 7 days
-
OEM ODM:
-
Acceptable
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Softel
-
Model Number:
-
20db LINE-AMPLIFIER
-
Power supply:
-
15+-3VDC
-
Gain:
-
20db
-
MOQ:
-
50PCS
-
Warranty:
-
12 months
-
Product name:
-
20db In Line Amplifier 2150mhz Satellite Signal Amplifier
-
Material:
-
Zinc die-cast housing
-
Frequency range:
-
950-2150MHz
-
DC power passing:
-
500mA(max.)
-
Delivery time:
-
Around 7 days
-
OEM ODM:
-
Acceptable
Good quality 20db in line amplifier 2150mhz satellite signal amplifier
Features
Design for in-line boosting SAT IF
Powerd by the receiver via coaxial cable
Model with slope gain can equilibrate cable loss
Low intermodulation distortion
Zinc die-cast housing with nickel plated
Low noise circuit design
Special design for LNB output signal amplification
75Ω, British system F-type connector
Max. passing current 0.5A
Specifications
1).Input Frequency: 950~2400MHz
2).Insertion Gain: 20dB
3).Return Loss: 10dB
4).Output: 105dBuV
5).Power supply: 12~20V/DC
6).DC current consumption: 30mA
7).Max DC current to LNB: 500mA
8).Input/Output connector: 75ohm
9).Temperature: -10~+50degree
Parameters
|
Frequency range (MHz) |
950-2400 |
|
Gain (dB) |
20±2 |
|
Flatness (dB) |
±1 |
|
Max. output (dBμV) |
115 |
|
Noise figure (dB) |
≤4.0 |
|
Return loss (dB) |
≥10 |
|
Power supply (V) |
DC12-18 |
|
Power consumption (W) |
≤1.0 |
