Quick Details
-
Certification:
-
CE
-
Generator type:
-
Axial Flux Permanent Magnet
-
Phase type:
-
3Phase AC
-
Rated rotor speed:
-
200RPM
-
Rated Voltage:
-
12-48Vac
-
Bearing brand:
-
NSK
-
Start torque:
-
<0.03N/M
-
Structure:
-
outer rotor
-
Efficiency:
-
>85%
-
Generator material:
-
Aluminium body+copper wire+Nd-Fe-B
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GreeF
-
Model Number:
-
GDG Series
-
Certification:
-
CE
-
Generator type:
-
Axial Flux Permanent Magnet
-
Phase type:
-
3Phase AC
-
Rated rotor speed:
-
200RPM
-
Rated Voltage:
-
12-48Vac
-
Bearing brand:
-
NSK
-
Start torque:
-
<0.03N/M
-
Structure:
-
outer rotor
-
Efficiency:
-
>85%
-
Generator material:
-
Aluminium body+copper wire+Nd-Fe-B

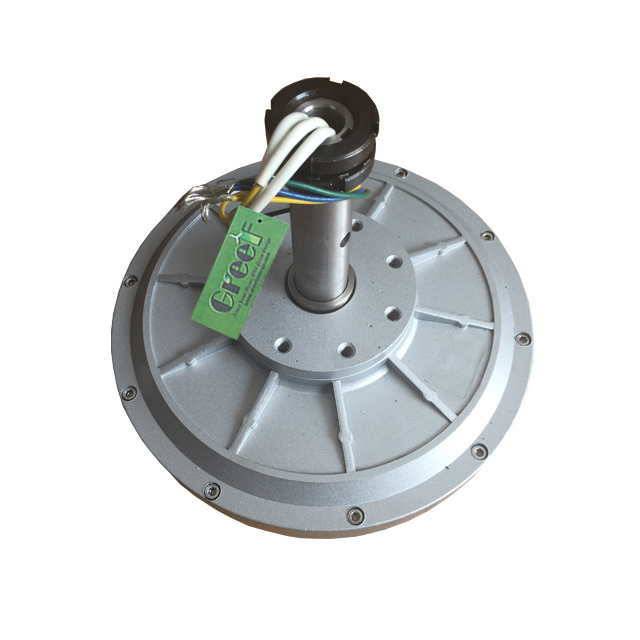

Disc
Coreless Permanent Magnet Generator
Technical Data
| Model | GDG-100W-200 |
| Rated Power | 100W |
| Rated Rotate Speed | 200RPM |
| Option Rated Voltage | 12V-48Vac |
| Efficiency | >85% |
| Wending Method | Y |
| Insulating Resistance | 100Mohm Min(500V DC) |
| Leakage Level | <5 ma |
| Start Torque | <0.05N/M |
| Rated Torque | 6N/M |
| Phase Type | 3 Phase |
| Structure | Outer rotor |
| Stator | Coreless wire coil |
| Rotor | Rare Earth Permanent Magnet |
| Generator Shell Diameter | 232mm |
| Generator Shell Length | 205mm |
| Weight | 9kg |
| Shaft drameter | 30mm |
| Generator shell material | Aluminum alloy |
| Shaft material | Carbon steel |
| Bearing | NSK Deep groove ball bearing |
Drawing Sample and Pictures
Product Advantages
This Coreless Permanent Magnet always being used in vertical axis wind turbine, and other generator system which requests very low start torque and low rated rotate speed, low start wind speed, low weight and small size.
| 1 | Torque Patent Technology: use newest “Precise Coil” technology. No hysteresis and gear notches effect make the start torque very low <0.3N.M |
| 2 | Original Structure: use disc coreless motor to take place traditional motor makes it less volume and weight. |
| 3 | Higher Utilization: use special coreless motor technology to eliminate the use bottlenecks of lower speed wind energy. |
| 4 | Higher Reliability: special structure make it bigger ratio of power to volume, power to weight and have long life of 8 times longer than traditional motor. |
| 5 | Gearless, direct drive, low RPM generator. |
| 6 | High standard, quality components for use in harsh and extreme environments for wind turbines |
| 7 | High efficiency and Low mechanical resistance energy loss |
| 8 | Excellent heat dissipation due to the Aluminum alloy outer frame and special internal structure. |
Application
We can provide the complete generator system including Controller and Inverter:
On-grid Generator System
Off-grid Generator System
