Quick Details
-
Voltage:
-
Customers Local Voltage
-
Power:
-
Customized
-
Dimension(L*W*H):
-
Customized Size
-
Weight (KG):
-
400000
-
Name:
-
coil coating line
-
Production material:
-
Iron steel ,aluminium
-
Application:
-
Producing GI,PPGI,PPGL,color aluminium
-
Process method:
-
Cleaning,annealing,passivate,hot dipped galvanized,color coating
-
Steel thickness:
-
0.12mm to 2mm
-
Width of strips:
-
600-1650mm
Quick Details
-
Machine Type:
-
Coating machine, Painting Equipment, Pre-treatment Equipment, Drying Oven, Coating Equipment
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
REACHFLY
-
Voltage:
-
Customers Local Voltage
-
Power:
-
Customized
-
Dimension(L*W*H):
-
Customized Size
-
Weight (KG):
-
400000
-
Name:
-
coil coating line
-
Production material:
-
Iron steel ,aluminium
-
Application:
-
Producing GI,PPGI,PPGL,color aluminium
-
Process method:
-
Cleaning,annealing,passivate,hot dipped galvanized,color coating
-
Steel thickness:
-
0.12mm to 2mm
-
Width of strips:
-
600-1650mm
Product Description
0.5mm Prepainted Galvanized Steel Coil Color Coated Steel Coil Ppgi Ppgl epoxy coating machine

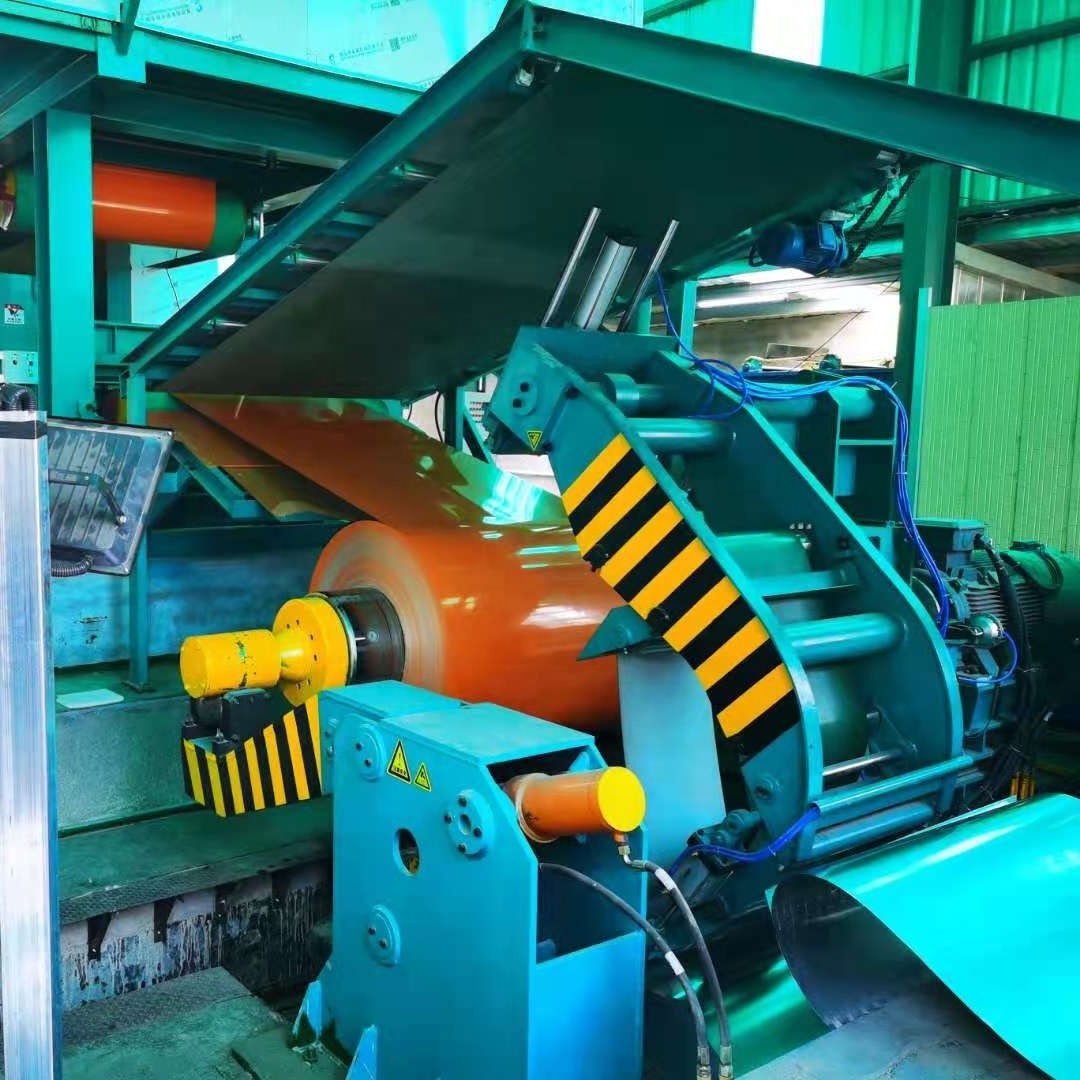

This production line is used to produce color coating coil. It is practical, reliable and mature, client can produce stably and run in the long term, production capacity from 40000 to 200000 tons per year.
|
Color Coated Production Line Technology Data
|
|
|
|
|||
|
Product thickness
|
0.15mm - 2.0mm
|
|
|
|||
|
Product width
|
800mm-1650mm
|
|
|
|||
|
Process speed
|
30-200m/min
|
|
|
|||
|
Thickness of coating
|
5-25um for the single-layer dry film on the front face;
5-15 um for the single layer dry film on the back face (regulated as required)
|
|
|
|||
|
Production capacity
|
50000-200000 t/year
|
|
|
|||
|
Energy type
|
Electricity, natural gas, liquefied petroleum gas, coal gas, steam, compressed air etc.
|
|
|
|||
1. Line Type: one coating and one baking, two coating and two baking, three coating and three baking. 2. Product Grade: construction plate, decoration plate and household appliance plate. 3. Coating Type: epoxy resin, polyurethane, polyester, polypropylene, polyvinyl fluoride, silicon modified polyester 4. Other treatment: printing, hot laminating, cold laminating. 5. Chemical Coater: dual-head two-roll type (used in prime coating), three-roll type (used in finish coating front side), two-roll type (used in finish coating back side). 6. Energy saving method: cyclic utilization of hot air; light fiber furnace lining; fume duct behind TIC is equipped with exhaust gas, air and water heat-exchanger, which is used for line baking, heat supply and cleaning solution heat supply, or directly use heat exhaust gas after incineration to supply heat for baking furnace; fume duct behind RTO and CIUdad is equipped with hot water heat-exchanger for cleaning solution heat supply.
Process flow:
Packing & Delivery
1. Export standard wooden cases packed in suitable container.
2. Cooperate with reliable shipping company to ensure the delivery time.
3. Customized Packing is allowed.
About us
QINGZHOU REACHFLY ENVIRONMENT TECHNOLIGY CO., LTD.
We are manufacturer of metal strip coils processing equipment.
We can supply and install (turnkey project):
1.Continuous Galvanizing/ Galvalume Coating Line - CGL
2.Coils Color Coating Line - CCL
3.Slitting Line
4.Tension leveler Line
5.Skinpass Mill Line
Our advantage:
1) Standardized workshop of total 360,000 square meters.
2) Professional technical team with more than 10 years experience, We can produce different product with different kinds of requirements and work out reasonable flow chart as per customers' requirements to save space.
3) Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
FAQ
1. Do you offer custom service?
● Of course, most of our machines are built according to customers specifications, using top brand name components.
2. How to ensure the quality?
● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 5 years
●After all the equipment are completed, we will assembling all the machines and run parts testing for at least 12 hours to ensure the stable running in customers' factory
3.Do you provide after-sales service?
● After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools.
● After the commissioning, we will package the equipment by standard export package for shipment.
● We will arrange our engineers to customers' factory to do the installation and training.
● Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.
