Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
maxizm
-
Voltage:
-
380V
-
Power:
-
132kW
-
Dimension(L*W*H):
-
9360*2500*3660MM
-
Weight:
-
18000 kg
-
Product name:
-
Concrete Shotcrete Machine
-
Model:
-
XZS5180TPJ
-
Model of Spraying:
-
HPC30V
-
Engine model:
-
MC05.18-50
-
Output power:
-
132/2400kW/(r/min)
-
Emission standard:
-
China V
-
Max.travel speed:
-
90km/h
-
Max. spraying height:
-
18m
-
Max. spraying width:
-
29.6m
-
Max. Theoretical spraying capacity:
-
30m3/h
Quick Details
-
Max. Conveying Distance:
-
29.6m
-
Hose Inner Diameter:
-
100 mm
-
Air Consumption:
-
10-13m3/min
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
maxizm
-
Voltage:
-
380V
-
Power:
-
132kW
-
Dimension(L*W*H):
-
9360*2500*3660MM
-
Weight:
-
18000 kg
-
Product name:
-
Concrete Shotcrete Machine
-
Model:
-
XZS5180TPJ
-
Model of Spraying:
-
HPC30V
-
Engine model:
-
MC05.18-50
-
Output power:
-
132/2400kW/(r/min)
-
Emission standard:
-
China V
-
Max.travel speed:
-
90km/h
-
Max. spraying height:
-
18m
-
Max. spraying width:
-
29.6m
-
Max. Theoretical spraying capacity:
-
30m3/h
Product Description

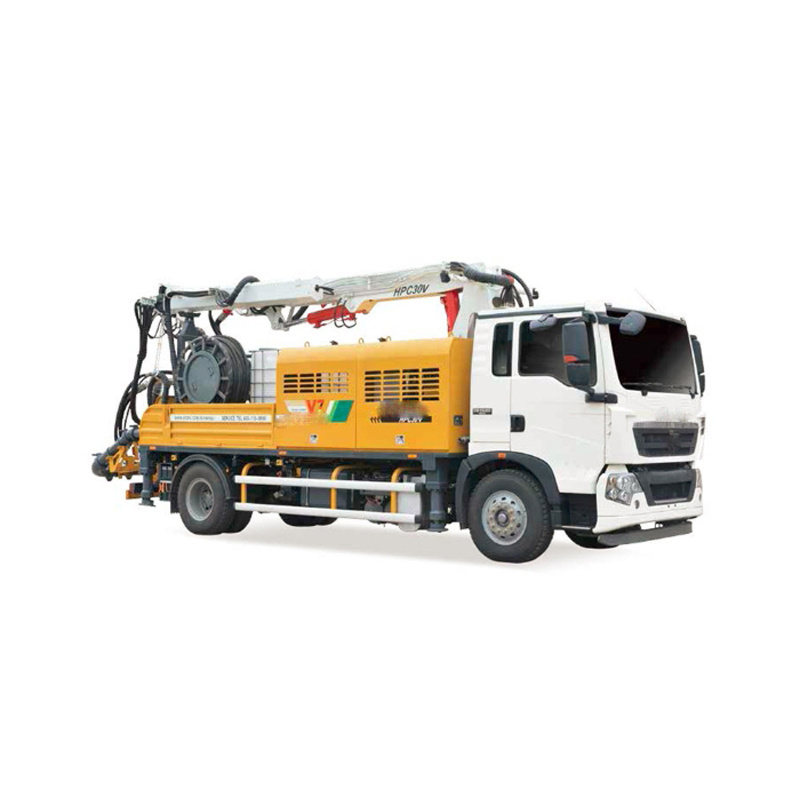

Concrete Spray Truck XZS5180TPJ wet type shotcrete machines
Product Features:
This machine is of excellent performance and fashionable shape and is industrial leading in compacting, driving and operating
performances and reliability, repair and maintenance performance and so on. It is ideal compacting equipment for road, airport,
harbor, railway, dam and industrial site.
This machine is of excellent performance and fashionable shape and is industrial leading in compacting, driving and operating
performances and reliability, repair and maintenance performance and so on. It is ideal compacting equipment for road, airport,
harbor, railway, dam and industrial site.
Specification:
|
Vehicle parameter
|
Unit
|
XZS5180TPJ
|
||
|
Model
|
|
XZS5180TPJ
|
||
|
Model of Spraying
|
|
HPC30V
|
||
|
Dimension(L×W×H)
|
mm
|
9360×2500×3660
|
||
|
Total vehicle weight
|
kg
|
18000
|
||
|
Traveling system
|
|
|
||
|
Chassis Model
|
|
ZZ1187K501GE1
|
||
|
Manufacturer
|
|
SINOTRUK
|
||
|
Engine model
|
|
MC05.18-50
|
||
|
Output power
|
kW/(r/min)
|
132/2400
|
||
|
Emission standard
|
|
China V
|
||
|
Displacement
|
L
|
4.58
|
||
|
Max.travel speed
|
km/h
|
90
|
||
|
Max.grade ability
|
%
|
30
|
||
|
Min.turning diameter
|
m
|
9.5
|
||
|
Wheel base
|
mm
|
5000
|
||
|
Track（front/rear）
|
mm
|
2035/1860
|
||
|
Tire size
|
|
10.00R20
|
||
|
Spraying system
|
|
|
||
|
Max. spraying height
|
m
|
18
|
||
|
Max. spraying width
|
m
|
29.6
|
||
|
Max. front spraying distance
|
m
|
14.8
|
||
|
Min. permissible tunnel height for spraying operation
|
m
|
4
|
||
|
Max. reach depth
|
m
|
7
|
||
|
Axial rotation of nozzle seat
|
°
|
360
|
||
|
Axial swing of nozzle seat
|
°
|
240
|
||
|
Nozzle deflection angle X Turning angle of brush
|
°
|
8×360
|
||
|
Pumping system
|
|
|
||
|
Max. Theoretical spraying capacity
|
m³/h
|
30
|
||
|
Max. permissible aggregate diameter (pumping/spraying)
|
MPa
|
8
|
||
|
Change valve
|
mm
|
22/16
|
||
|
Lubrication methods
|
|
Rock valve
|
||
|
Control methods
|
|
automatic manual/remote
|
||
|
Feeding height
|
mm
|
1400
|
||
|
Hopper capacity
|
L
|
500
|
||
|
Concrete delivery pipe diameter
|
mm
|
φ150-φ100-φ80
|
||
|
Air compressor
|
|
|
||
|
Air compressor
|
|
选配Optional
|
||
|
Wind supply capacity
|
m3/min
|
10~13
|
||
|
Wind pressure
|
MPa
|
0.8
|
||
|
Accelerant
|
|
|
||
|
Delivery pressure
|
MPa
|
0.8
|
||
|
Accelerant weighing/delivery capacity
|
L/h
|
60~600
|
||
