Quick Details
-
Model Number:
-
GR355C
-
Material:
-
Copper, Iron, Silicon Steel
-
Uasge:
-
Generate Electricity
-
Phase:
-
3 Phase
-
Voltage:
-
Low Voltage
-
Copper Wire:
-
Essex Copper Wire
-
Insulating Varnish:
-
Elantas E300 Insulation
-
Silicon Steel Sheet:
-
Wisco Silicon Steel
-
Insulating Paper:
-
DuPont Double-Layered
-
Bearings:
-
Renben Bearings
-
Maximum Overspeed:
-
2250rev/Min
Quick Details
-
Warranty:
-
1 year or 1000 working hours
-
Place of Origin:
-
Jiangsu
-
Brand Name:
-
Gloria
-
Model Number:
-
GR355C
-
Material:
-
Copper, Iron, Silicon Steel
-
Uasge:
-
Generate Electricity
-
Phase:
-
3 Phase
-
Voltage:
-
Low Voltage
-
Copper Wire:
-
Essex Copper Wire
-
Insulating Varnish:
-
Elantas E300 Insulation
-
Silicon Steel Sheet:
-
Wisco Silicon Steel
-
Insulating Paper:
-
DuPont Double-Layered
-
Bearings:
-
Renben Bearings
-
Maximum Overspeed:
-
2250rev/Min

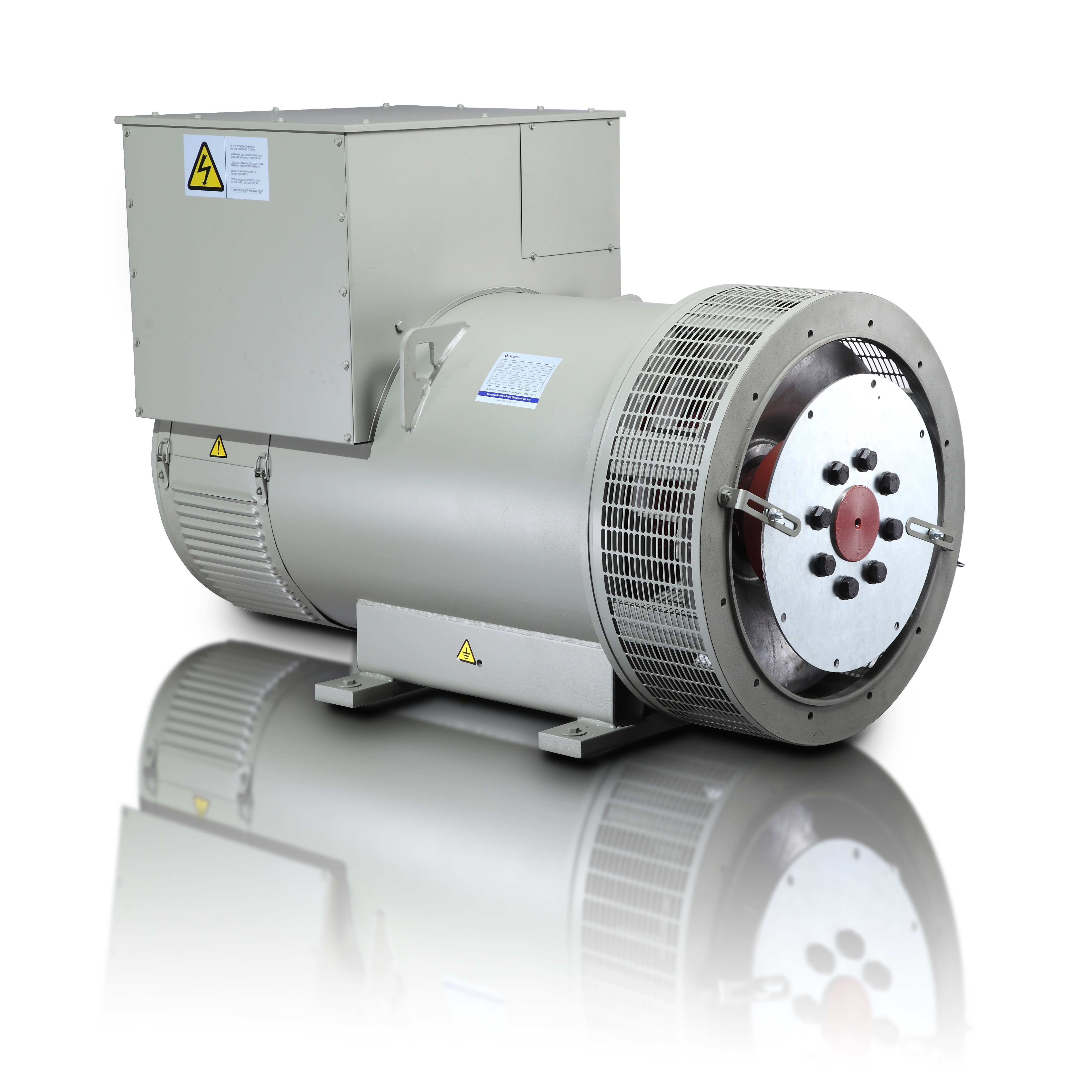

Cost Efficiency 1500rpm 1800rpm 3 Phase Brushless Land Alternator for Generator
| GLORIA 3PHASES LAND ALTERNATOR-GR355C | ||||||||
| C0NTROL SYSTEM | SEPARATELY EXCITED BY P.M.G. | |||||||
| AVR | MX341 | |||||||
| VOLTAGE REGULATION | ±1.0% | |||||||
| SUSTAINED SHORT CIRCUIT | REFER TO SHORT CIRCUIT DECREMENT CURVES | |||||||
| INSULATION SYSTEM | H | |||||||
| PROTECEION | IP21-IP23 | |||||||
| RATED POWER FACTOR | 0.8 | |||||||
| STATOR WINDONG | DOUBLE LAYER CONCENTRIC | |||||||
| WINDING PITCH | TWO THIRDS | |||||||
| WINDING LEADS | 12 | |||||||
| STATOR WDG.RESISTANCE | 0.00634Ω ( 27°C ) | |||||||
| ROTOR WDG.RESISTANCE | 0.98720Ω ( 27°C ) | |||||||
| EXCITER STATOR RESISTANCE | 16.22Ω ( 27°C ) | |||||||
| EXCITER ROTOR RESISTANCE | 0.07931Ω ( 27°C ) | |||||||
| R.F.I.SUPPRESSION | BS EN6000-6-2 & BS EN61000-6-4,VDE 1875G,VDE0875N.refer to factory for others | |||||||
| WAVEFORM DISTORTION | <1.5% | |||||||
| MAXIMUM OVERSPEED | 2250 Rev/Min | |||||||
| BEARING DRIVE END | 63172RZ | |||||||
| BEARING NON-DRIVE END | 63142RZ | |||||||
