Quick Details
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Wuhan Especial Optic
-
Model Number:
-
Customization
-
Product name:
-
Fresnel Lens
-
Application:
-
solar concentration, led staging lighting
-
Material:
-
Optical glass, PMMA
-
Diameter:
-
10-350mm
-
Ring spacing:
-
0.2mm, 0.5mm, 1mm, 2mm
-
Focal Length:
-
customizable
-
Transmittance:
-
>93%
-
Color:
-
Transparent
Quick Details
-
Usage:
-
Optical
-
Structure:
-
Plano
-
Shape:
-
Round or rectangular
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Wuhan Especial Optic
-
Model Number:
-
Customization
-
Product name:
-
Fresnel Lens
-
Application:
-
solar concentration, led staging lighting
-
Material:
-
Optical glass, PMMA
-
Diameter:
-
10-350mm
-
Ring spacing:
-
0.2mm, 0.5mm, 1mm, 2mm
-
Focal Length:
-
customizable
-
Transmittance:
-
>93%
-
Color:
-
Transparent

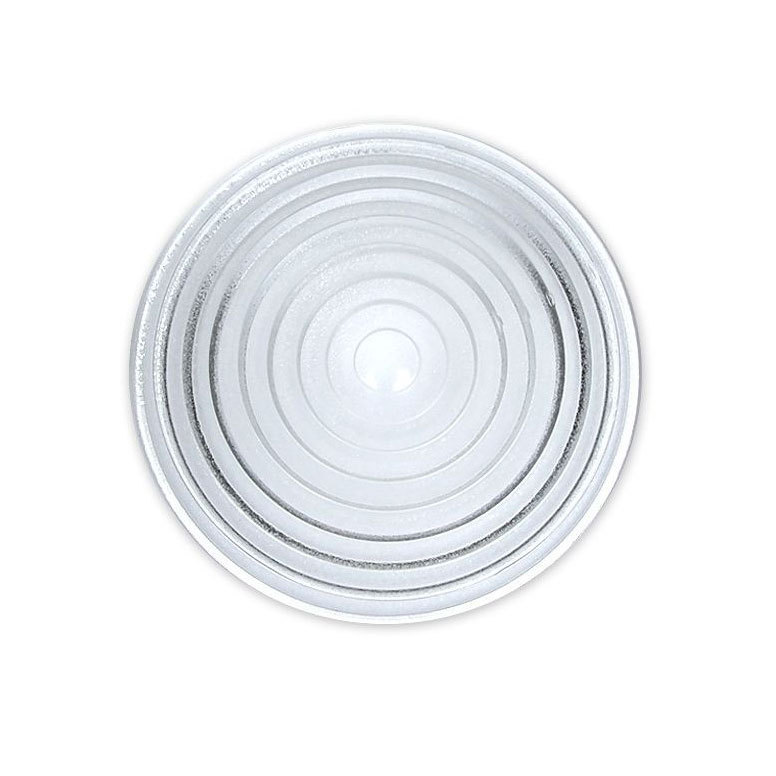

Large Fresnel Lens
A Fresnel lens is a type of composite compact lens originally developed by French physicist Augustin-Jean Fresnel (1788–1827) for lighthouses. It has been called "the invention that saved a million ships.
The design allows the construction of lenses of large aperture and short focal length without the mass and volume of material that would be required by a lens of conventional design. A Fresnel lens can be made much thinner than a comparable conventional lens, in some cases taking the form of a flat sheet. A Fresnel lens can capture more oblique light from a light source, thus allowing the light from a lighthouse equipped with one to be visible over greater distances.
Wuhan Especial Optic offers OEM service. And we can custom the lens strictly per your requirements based on your project. There are many sizes of Fresnel lenses in stock, so please tell us the specs you need, we will find a cheap lens for you.
|
Concentration coefficient
|
>500 times
|
|
|
||
|
Transmittance
|
>93%
|
|
|
||
|
Focal Length
|
63/70/150/290mm
|
|
|
||
|
Thickness
|
Customs Requirements
|
|
|
||
|
Diameter
|
Customs Requirements
|
|
|
||
|
Material
|
Acrylic/Plastic/Glass
|
|
|
||
WHEO is very good at developing and processing kinds of infrared optical components at ultra high precision, ultra thin, very large, ultra small and customization. Like 0.5mm thickness CaF2 window, 300mm diameter Germanium and ZnSe window. Our featured products include: Optical Protective Window (AR BBAR coating), High Reflection Mirrors (Metalic and Dielectric coating), Optical Lens (Aspheric Lens, Achromatic Lens, Cylindrical lens, Ball Lens, Powell Lens, Collimator Lens), Optical Filters (UV pass, IR pass, narrow bandpass, notch filter), Optical Prism, Galvo Mirror, Polarization rotators.
a: Dimesion size : 5-300mm , thickness up to customer requirements
b: Many material could be choosed, like BK7, Fused Silica, Sapphire, MgF2, CaF2, Ge, Si, Znse, ZnS and so on.
c: AR HR DLC coating or as your request
For more please visit our website: www.wheo.cn
Optical design
We can design optical components according to your requirements.
Production
Our current production capacity includes but not limited to cutting, grinding, polishing,coatin and testing.
After-sales service
If you have questions about our products you can contact us directly.
Packing Details: Protective film or Capacitor paper,Pearl cotton,Cardboard box.
Delivery Details: 7 days for stock.
3-4 weeks for custom-made products for sample.
in common, 4 weeks for mass production
What's the way of shipping?
We commonly use UPS, FedEx, DHL, TNT, SF, EMS etc. If you have your own express account, it's great.
How to pay?
We usually draft Trade Assurance Order on Alibaba, you can pay by the most convenient way which also protect most of your rights.
What's the deliver time?
For inventory: the delivery time is around 5 workdays.
Customized products: the delivery time is 10 to 30 workdays. According to the quantity and precision.
How to ensure the safety of payment?
Wuhan Especial Optic.,INC is the gold supplier and supports Alibaba Trade Assurance. Payment<=5000USD, 100% in advance. Payment>5000USD, 50% T/T in advance, balance before shippment.
Can I customize the products based on my need?
Yes, we can customize the material, specifications and optical coating for your optical components based on your needs. OEM is available.
