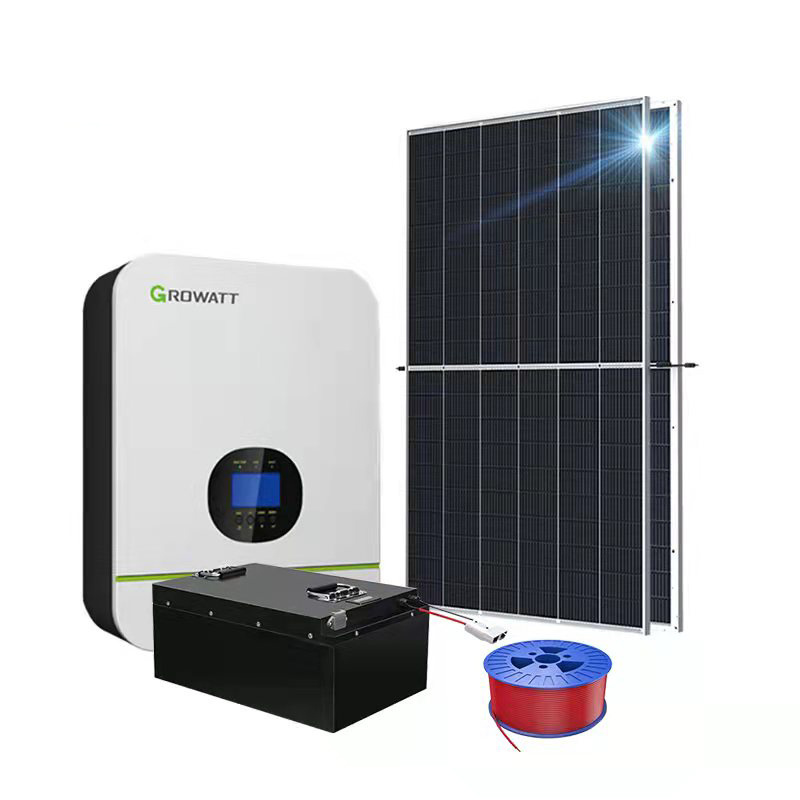

10 KW Hybrid solar system configuration
|
|
|
|
|
||||
|
NO.
|
item
|
specification
|
warranty
|
quantity
|
||||
|
1
|
solar panel
|
•Rated Max Power: 545 W •Size:2278*1134*35 mm
•Weight: 28.1 kg
|
25years
|
19 pcs
|
||||
|
2
|
hybrid inverter
|
•Rated AC Output Power: 5000W •Feed-in to the Grid and Self-consumption
• Programmable supply priority to PV, Battery or Grid, multiple operation modes: Grid-tie, off grid and grid-tie with backup •Monitoring software •220v/230v/240v three phase, 110/220v split phase50 or 60hz
|
5years
|
2 units
|
||||
|
3
|
battery
|
•51.2V 200Ah
• Lifepo4 type
•Free Maintenance
|
5years
|
2 units
|
||||
|
4
|
mounting bracket
|
•Aluminum Bracket For Roof •Wind Speed Up to 40m/s
|
15years
|
1 set
|
||||
|
5
|
AC distribution box
|
•For AC output combination and protection
|
10years
|
1 set
|
||||
|
6
|
PV cable
|
•
4mm
2
•UV protection
|
20years
|
200 meters
|
||||
|
7
|
MC4 compatible connector
|
•30A/1000V DC
•IP67 rated
|
10years
|
15 pairs
|
||||
|
Note: this is only a configuration suggestion，You can choose the configuration that suits you!
|
|
|
|
|
||||
