Quick Details
-
Wavelength:
-
1100-1600nm
-
Optical input range:
-
-8~+2dBm
-
Bandwidth:
-
45-862&1006MHz
-
Output port:
-
2 ports
-
Optical connector:
-
SCAPC or FCAPC
-
RF output level:
-
102dBuV
-
Power supply:
-
AC30-AC110V or AC165-C245V
-
Warranty:
-
1 year
Quick Details
-
Type:
-
Fiber Optic Transceivers
-
Place of Origin:
-
China
-
Use:
-
FTTX
-
Wavelength:
-
1100-1600nm
-
Optical input range:
-
-8~+2dBm
-
Bandwidth:
-
45-862&1006MHz
-
Output port:
-
2 ports
-
Optical connector:
-
SCAPC or FCAPC
-
RF output level:
-
102dBuV
-
Power supply:
-
AC30-AC110V or AC165-C245V
-
Warranty:
-
1 year
Product Description

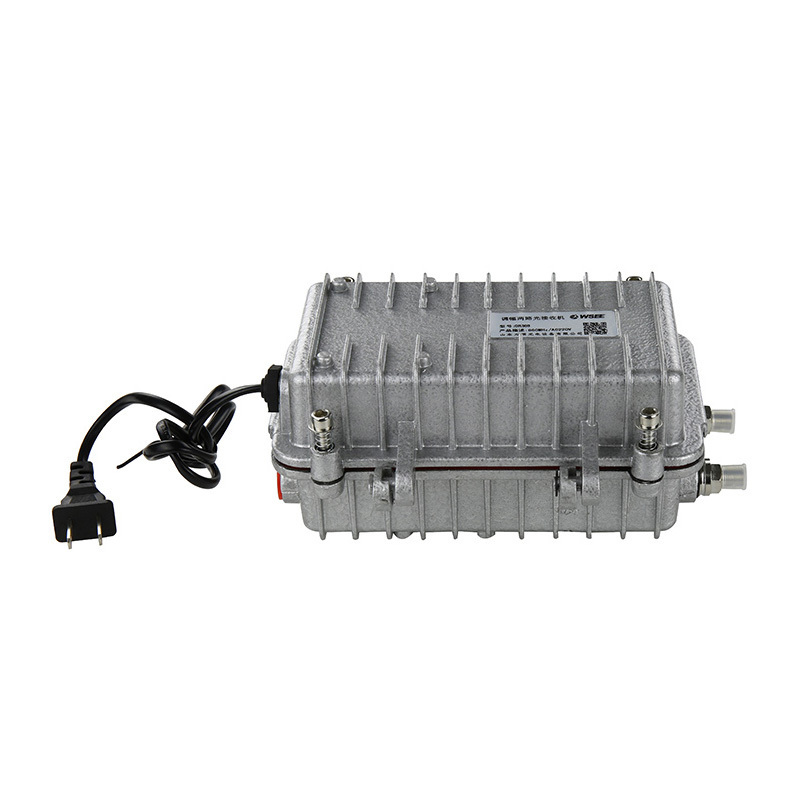

1G 220V or 60V CATV 2 Way Outdoor Optical Node
Outdoor 2 outputs CATV Optical Node Receiver
ORX-300 can work together with ONU or EOC to realize the network convergence. OR303 AGC control range is +2~-8dBm, when the optical input power +2~-8dBm, the output level will be same, which is easy for debug.
|
Technical Data
|
|
ORX-300 Optical Node Receiver
|
|
||
|
Wave Length
|
|
1100~1600nm
|
|
||
|
Optical input power
|
|
-8dBm~+2 dBm
|
|
||
|
Optical AGC range
|
|
-8dBm~+2 dBm
|
|
||
|
Optical Return Loss
|
|
>45dB
|
|
||
|
Optical Connector
|
|
FC/APC & SC/APC
|
|
||
|
Bandwidth
|
|
40~750 & 862 & 1006MHz
|
|
||
|
Flatness
|
|
±0.75dB@40~750 MHz ±1dB@40~862&1006 MHz
|
|
||
|
RF return loss
|
|
≥16dB@40~550MHz ≥14dB@550~750@862&1006MHz
|
|
||
|
ATT adjustable range
|
|
0-20dB
|
|
||
|
EQ adjustable range
|
|
0-18dB
|
|
||
|
RF Impedance
|
|
75Ω
|
|
||
|
C/N (Note3)
|
|
≥51dB
|
|
||
|
CTB(Note 3)
|
|
≥65dB
|
|
||
|
CSO(Note 3)
|
|
≥62dB
|
|
||
|
Power supply
|
|
AC35-AC90V & AC140V-265V or customized
|
|
||
|
Main board voltage
|
|
+24V,+8V
|
|
||
|
Working Tem.
|
|
-25℃~+55℃ or customized
|
|
||
|
Consumption
|
|
≤10w
|
|
||
|
Power supply way
|
|
220V@ Chinese outlet with 1m power cord 60V@G283 independent power supply port
|
|
||
|
Net Size
|
|
210X165X90mm(220V) & 225X160X90mm(60V)
|
|
||
|
Weight withinnerbox
|
|
1.3kgs(N.W.1.15kgs)
|
|
||
|
Wholecartonweight
|
|
13kgs(10pcs)
|
|
||
