Quick Details
-
Brand Name:
-
Tonhe
-
Name:
-
DN32 electric ball valve
-
Valve size:
-
1-1/4''( 1-1/2" or 2" )
-
Voltage:
-
DC12V DC24V AC/DC9-35V AC110-240V
-
wiring diagram:
-
CR201, CR202 ,CR303, CR305, CR501,CR502
-
Sealing material:
-
FKM & PTFE
-
Service life:
-
100000 times
-
Working Current:
-
less than 60mA
-
Actuator torque:
-
10N.M
-
Open/close time:
-
≤15S
-
certification:
-
NSF61-G CE(EMC,LVD) RHOS IP67 PICC SGS9001
Quick Details
-
Port Size:
-
1 1/4" inch
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
A100-T32-S2-C
-
Brand Name:
-
Tonhe
-
Name:
-
DN32 electric ball valve
-
Valve size:
-
1-1/4''( 1-1/2" or 2" )
-
Voltage:
-
DC12V DC24V AC/DC9-35V AC110-240V
-
wiring diagram:
-
CR201, CR202 ,CR303, CR305, CR501,CR502
-
Sealing material:
-
FKM & PTFE
-
Service life:
-
100000 times
-
Working Current:
-
less than 60mA
-
Actuator torque:
-
10N.M
-
Open/close time:
-
≤15S
-
certification:
-
NSF61-G CE(EMC,LVD) RHOS IP67 PICC SGS9001

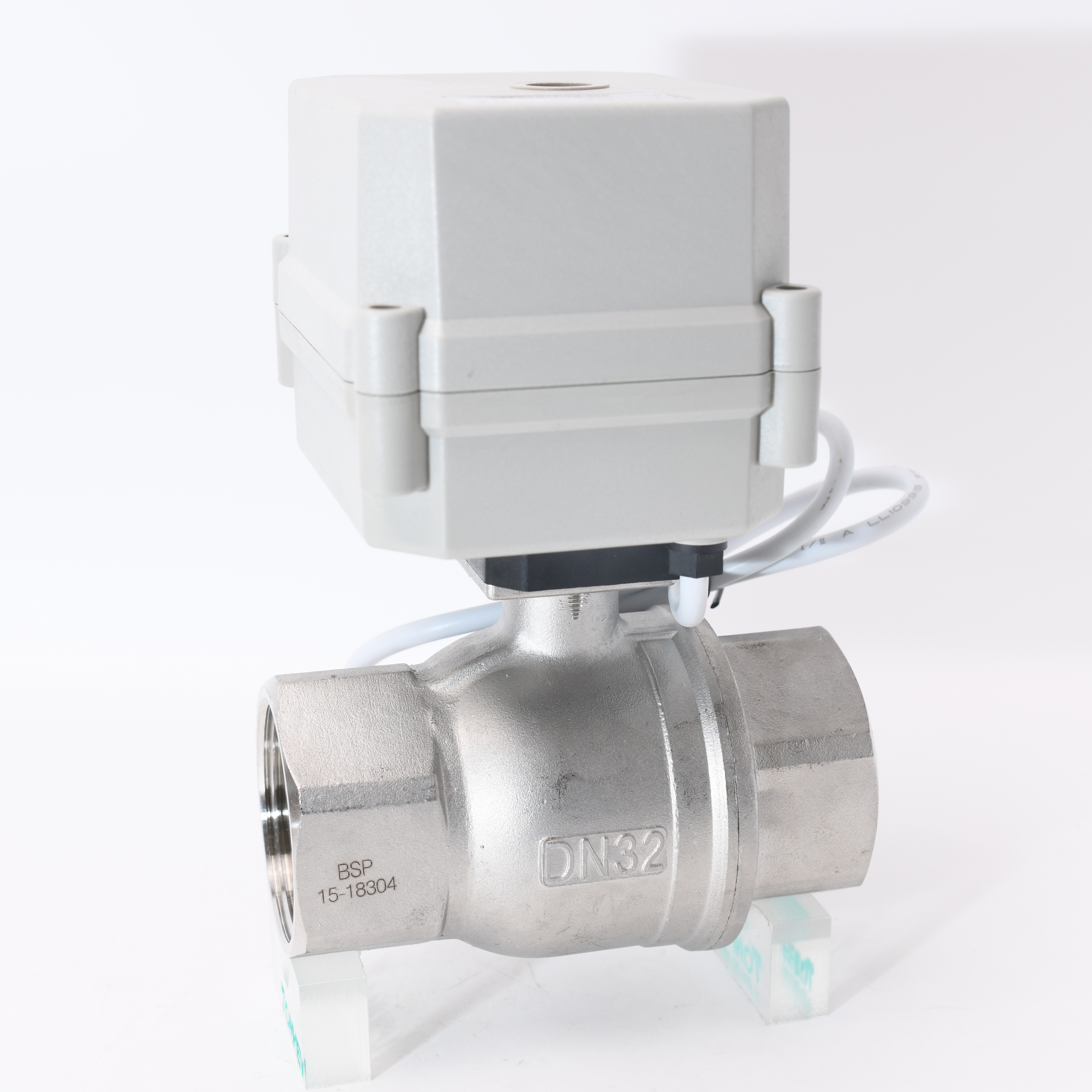

DN32 2-way 1 1/4" inch motorized stainless steel valve with NSF61 electric actuator ball valve
Pls confirm the details below when you order them.
| No. | Item | Need to be confirmed |
| 1 | Valve thread | BSP or NPT female thread |
| 2 | Auto return | Normal close or normal open |
| 3 | Wiring diagram | CR202 or CR303 |
CR202 wiring diagram AC/DC110-230V
Normai close:
When SW is CLOSED, the valve OPEN, the actuator automatically power off after in place. ·
When SW is OPEN, the valve CLOSED, the actuator automatically power off after in place.
Normal open:
When SW is CLOSED, the valve CLOSE, the actuator automatically power off after in place. ·
When SW is OPEN, the valve OPEN, the actuator automatically power off after in place.
Suitable Working Voltage: AC/DC110-230V
Exceeding the working voltage is forbidden
CR306 wiring diagram AC/DC110-230V
Normai close:
RD& GR connect with positive, the BK connect with negative.
SW CLOSED, the valve CLOSED , the actuator automatically power off after in place
SW OPEN, the valve OPEN , the actuator automatically power off after in place .
The valve will be auto closed when power is failure.
Normai open:
RD& GR connect with positive, the BK connect with negative.
SW CLOSED, the valve OPEN , the actuator automatically power off after in place
SW OPEN, the valve CLOSE , the actuator automatically power off after in place .
The valve will be auto opened when power is failure.
Suitable Working Voltage: AC/DC110-230V
Exceeding the working voltage is forbidden
Normally closed: the valve will be auto closed when the power is off(without power); the valve will be auto open when the power is on.
Normally open: the valve will be auto open when the power is off(without power); the valve will be auto closed when the power is on.
Kindly Remind: please charge the motorized ball valve for 1 minute before using
We have 2 way and 3 way, DC5V DC12V DC24V 220V working voltage, and brass, stainless steel, PVC valve for your choice.
Variety, stable quality and reasonable price, welcome to consult and order!
