Quick Details
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Chunbin
-
Model Number:
-
H05VV-F H07VV-F
-
Rated voltage:
-
300/500V, 450/750V
-
Number of cores:
-
single core/multi cores
-
Rated Voltage:
-
300/500V, 450/750V
-
Insulation:
-
PVC
-
Packing:
-
ROLL
-
MOQ:
-
1000 Meters
-
Conductor:
-
copper
-
Length:
-
Lengths Customize
-
Product name:
-
House Wires
-
Certification:
-
CE CCC
Quick Details
-
Application:
-
Underground
-
Conductor Material:
-
Copper
-
Conductor Type:
-
Stranded
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Chunbin
-
Model Number:
-
H05VV-F H07VV-F
-
Rated voltage:
-
300/500V, 450/750V
-
Number of cores:
-
single core/multi cores
-
Rated Voltage:
-
300/500V, 450/750V
-
Insulation:
-
PVC
-
Packing:
-
ROLL
-
MOQ:
-
1000 Meters
-
Conductor:
-
copper
-
Length:
-
Lengths Customize
-
Product name:
-
House Wires
-
Certification:
-
CE CCC
Product Description
|

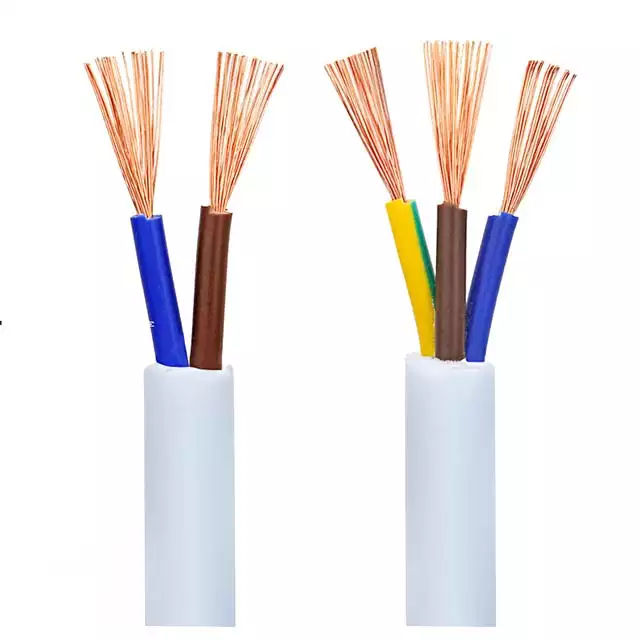

H07VV-F RVV
|
Application
Ordinary duty PVC cable for use in domestic appliances, kitchens and offices. For use with light portable appliances such as table lamps and office equipment. Generally unsuitable for outdoor use or industrial applications.
|
Characteristics
|
Characteristics
|
|
|
Conductor
|
Flexible Class 5 copper conductor
|
|
|
Max. operating temperature
|
70 °C
|
|
|
Short circuit temperature
|
160 °C (max. 5 sn.)
|
|
|
Rated voltage
|
450/750 V
|
|
|
Insulation
|
PVC
|
|
|
Sheath/Jacket
|
PVC
|
|
|
Filler
|
PVC
|
|
Parameters
|
Nominal cross-section
|
Overall Diameter (approx.)
|
Net Weight (approx.)
|
DC Conductor Resistance at 20 °C
|
Current Carrying Capacity
|
|
|
|
|
|
In Air at 30 °C
|
|
mm2
|
mm
|
kg/km
|
ohm / km
|
A
|
|
2 x 1,5
|
8.1
|
105.58
|
13.3
|
16
|
|
2 x 2,5
|
9.7
|
150.99
|
7.98
|
20
|
|
2 x 4
|
10.9
|
198.92
|
4.95
|
25
|
|
2 x 6
|
14.5
|
340.74
|
3.3
|
33
|
|
2 x 10
|
16.8
|
487.96
|
1.91
|
45
|
|
2 x 16
|
19.0
|
665.84
|
1.21
|
61
|
|
2 x 25
|
22.2
|
924.97
|
0.78
|
80
|
|
2 x 35
|
24.5
|
1185.43
|
0.554
|
103
|
|
2 x 50
|
28.8
|
1665.54
|
0.386
|
120
|
|
2 x 70
|
33.4
|
2273.73
|
0.272
|
152
|
|
2 x 95
|
37.0
|
2927.93
|
0.206
|
184
|
|
2 x 120
|
42.0
|
3711.43
|
0.161
|
212
|
|
2 x 150
|
47.0
|
4180.00
|
0.129
|
315
|
|
3 x 1,5
|
8.7
|
127.55
|
13.3
|
16
|
|
3 x 2,5
|
10.5
|
184.44
|
7.98
|
20
|
|
3 x 4
|
11.8
|
246.63
|
4.95
|
25
|
|
3 x 6
|
15.3
|
405.62
|
3.3
|
33
|
|
3 x 10
|
17.7
|
591.01
|
1.91
|
45
|
|
3 x 16
|
20.1
|
819.84
|
1.21
|
61
|
|
3 x 25
|
23.6
|
1145.41
|
0.78
|
80
|
|
3 x 35
|
26.1
|
1484.76
|
0.554
|
103
|
|
3 x 50
|
30.8
|
2099.71
|
0.386
|
120
|
|
3 x 70
|
35.8
|
2881.21
|
0.272
|
152
|
|
4 x 1,5
|
9.7
|
156.69
|
13.3
|
16
|
|
4 x 2,5
|
11.3
|
220.37
|
7.98
|
20
|
|
4 x 4
|
12.8
|
301.90
|
4.95
|
25
|
|
4 x 6
|
16.6
|
494.13
|
3.3
|
33
|
|
4 x 10
|
19.3
|
726.89
|
1.91
|
45
|
|
4 x 16
|
21.9
|
1018.58
|
1.21
|
61
|
|
4 x 25
|
25.8
|
1431.02
|
0.78
|
80
|
|
4 x 35
|
28.8
|
1879.83
|
0.554
|
103
|
|
4 x 50
|
33.9
|
2650.95
|
0.386
|
120
|
|
5 x 1,5
|
10.7
|
189.49
|
13.3
|
16
|
|
5 x 2,5
|
12.6
|
271.61
|
7.98
|
20
|
|
5 x 4
|
14.4
|
375.42
|
4.95
|
25
|
|
5 x 6
|
18.0
|
589.42
|
3.3
|
33
|
|
5 x 10
|
20.9
|
872.22
|
1.91
|
45
|
|
5 x 16
|
23.9
|
1230.33
|
1.21
|
61
|
|
5 x 25
|
28.3
|
1742.48
|
0.78
|
80
|
|
5 x 35
|
31.7
|
2301.93
|
0.554
|
103
|
|
5 x 50
|
37.4
|
3255.73
|
0.386
|
120
|
|
3 x 16+10
|
21.3
|
943.76
|
1,21 / 1,91
|
61
|
|
3 x 25+16
|
24.8
|
1323.94
|
0,78 / 1,21
|
80
|
|
3 x 35+16
|
26.9
|
1642.64
|
0,554 / 1,21
|
103
|
|
3 x 50+25
|
32.1
|
2345.35
|
0,386 / 0,78
|
120
|
|
3 x 70+35
|
37.5
|
3243.50
|
0,272 / 0,554
|
152
|
Packing & Delivery
Package
: Generally, pack in rolls or wooden drums. Accept customized service for free.
Rolls, Wooden Drums, Steel Drums, Reels
.
High Quality Material
Related Cables
Our Factory
The Chunbin Cable Group Co,. Ltd covers an area of 68,000 square meters, with a construction area of 18,000 square meters and fixed assets of 106.8 million RMB. We own advanced production equipment and perfect testing machine. Our company mainly produces mineral insulated cable, pv cable,overhead line cable, OPLC rail transit cable, optical fiber composite cable, medium and low voltage XLPE insulated power cable, PVC insulated power cable, aluminum alloy cable, fire resistant cable, flame retardant cable, control cable, overhead insulated cable, low-smoke halogen-free cable, rubber cable, mining cable, aluminum stranded wire and steel core aluminum stranded wire, PVC insulated wire and cable, shielded monitoring line, protection More than 50 varieties, more than 1000 specifications, such as line, agricultural land embedding, anti-aging line, coaxial cable. At the same time, it can also produce British standard American standard and German standard wire and cable, and customize special type wire and cable for customers.
Certifications
Our company strictly controls the quality of products. The products have passed the inspections of the national , provincial and municipal quality supervision departments for many years, and successfully passed the Chinese state. These certifications includes compulsory product certification, coal mine safety certification, national industrial product production license and ISO9001 international quality management system certification. It has obtained the national certificate of use of flame retardant products and is qualified as a foreign trade operator.
FAQ
Are you a factory or trade company ?
We are a professional cable manufacturer with 31 years experience.
The factory is located in Luoyang, Henan province, China.
Whether these products quality assured ?
Most of cables are certificated. Also, we have strict QC, all products are tested before delivery. Quality is assured.
When I want customized products, how to do?
Contacting our customers survice, we have a professional R&D team and quality inspection team that can customize products according to customer's needs.
Can you send a sample for us to test?
If we have inventory, you can get 1-5meters sample for free, but freight cost need to be paid by your compony.
If need a lot of samples , sample and
freight cost have to be paid by your esteemed company. We will return the sample cost to you when we receiving your initial
order.
If we want to purchase, how to pay ?
Generally we do T/T in 30% deposit before production, 70% balance against copy of
B/L . Also payment terms are negotiable depending on customer's request.
When you arrange delivery after we place an order ?
Normally,we will arrange delivery in 7-15 days after order , and negotiation is allowed according to your quantity.
After I pay, what about shipping method?
Goods can be delivered by air, by express or by sea; International Express as FEDEX, UPS, DHL, TNT; You can choose the best way as you wish.
