Quick Details
-
Brand Name:
-
Siko Instruments
-
Model Number:
-
HGL-302
-
Measuring range:
-
0...1m...200mH2O
-
Accuracy:
-
±0.5%F.S(Std.)
-
Output signal:
-
4-20mA (2-wire) 0/1-5/10V(3-wire) RS485 (4-wire)
-
Power supply:
-
DC 3-5V / DC 9-32V (DC 24V Std. )
-
Sensor housing:
-
SS 304
-
Vented cable:
-
polyurethane cable
-
Electrical connection:
-
2-wire (3-wire 4-wire optional)
-
Protection:
-
IP 68
-
Keywords:
-
Submersible Sludge Level Transmitter
-
Whats_App/We_chat/Tel:
-
+86 193 5591 6250
Quick Details
-
Grade:
-
DIY, Industrial
-
Warranty:
-
2 years
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Siko Instruments
-
Model Number:
-
HGL-302
-
Measuring range:
-
0...1m...200mH2O
-
Accuracy:
-
±0.5%F.S(Std.)
-
Output signal:
-
4-20mA (2-wire) 0/1-5/10V(3-wire) RS485 (4-wire)
-
Power supply:
-
DC 3-5V / DC 9-32V (DC 24V Std. )
-
Sensor housing:
-
SS 304
-
Vented cable:
-
polyurethane cable
-
Electrical connection:
-
2-wire (3-wire 4-wire optional)
-
Protection:
-
IP 68
-
Keywords:
-
Submersible Sludge Level Transmitter
-
Whats_App/We_chat/Tel:
-
+86 193 5591 6250

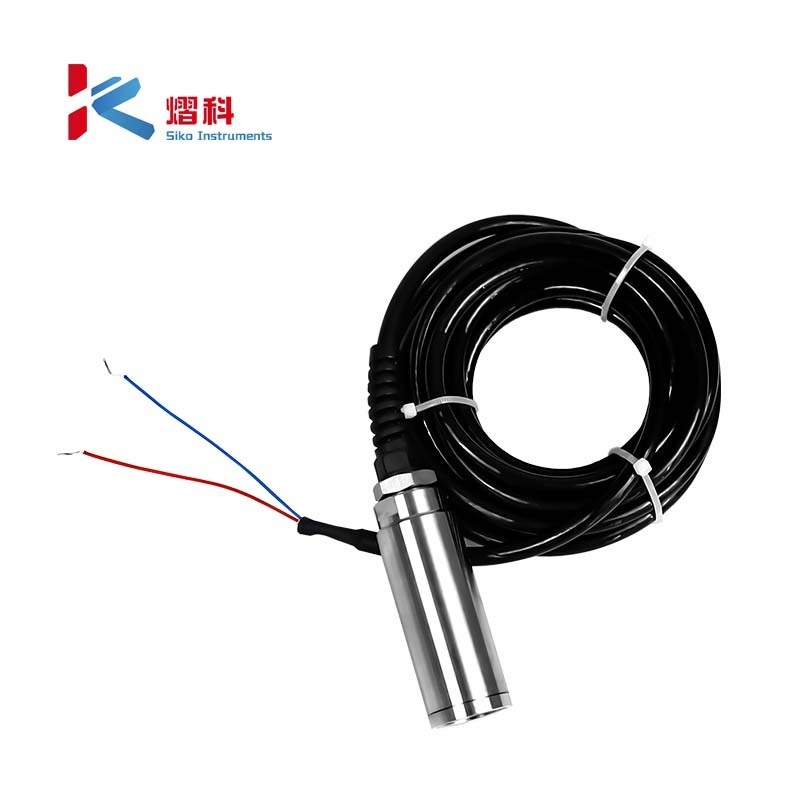

HGL-302 Sludge Level Indicator Titanium Pressure Water Level Sensor Flush Diaphragm 100Kpa
T
HGL-100 Submersible Level Transmitter designed for accurate measurement of the depth and level of liquids in many applications, it can be submerged into liquids directly to measure level from the transmitter bottom to the liquids surface.
It uses high performance piezoresistive pressure sensor as sensing element and the measurement is based on the principle that the measured liquids static pressure is positive proportional to the level depth accurately, and convert the pressure signals into standard electrical signals output by amplifier circuit board to measure precise level depth. After built-in temperature compensation and linear calibration, the converted standard current, voltage, RS 485 and other signals output can be directly connected to PLC or DCS for the operations and process control at work sites.
HGL-100 is widely used for water and other liquid level measurement and control in fields of borehole, environmental protection, petroleum, chemicals industry, power station, urban water supply, drainage and hydrology and other industrial process control.
It uses high performance piezoresistive pressure sensor as sensing element and the measurement is based on the principle that the measured liquids static pressure is positive proportional to the level depth accurately, and convert the pressure signals into standard electrical signals output by amplifier circuit board to measure precise level depth. After built-in temperature compensation and linear calibration, the converted standard current, voltage, RS 485 and other signals output can be directly connected to PLC or DCS for the operations and process control at work sites.
HGL-100 is widely used for water and other liquid level measurement and control in fields of borehole, environmental protection, petroleum, chemicals industry, power station, urban water supply, drainage and hydrology and other industrial process control.
Features
|
01.
|
4-20mA, 0-10V, RS 485 etc outputs available.
|
|
02.
|
Submersible deep-water level measurement rated IP 68.
|
|
03.
|
Excellent chemical compatibility with 304 construction and polyurethane cable.
|
|
04.
|
Non-clogging and anti-blocking large flush ceramic diaphragm to inhibits grease, bio-solid buildup, floating solids and other viscous medium.
|
|
05.
|
Maintenance free filter eliminates particulate or water droplets from entering and damaging the transmitter.
|
|
06.
|
Ventilation tube in the cable automatically compensates for changes in atmospheric pressure. Robust cable with Kevlar core for length stabilization and capillary tube for venting.
|
Product Description
Technical Parameters
Selection Table
Outline Dimension
