Quick Details
-
Brand Name:
-
CHONGHONG
-
Model Number:
-
CHYXJ11228
-
Product name:
-
Eye Bolt
-
Size:
-
6-24mm
-
Surface treatment:
-
Polished
-
Color:
-
Silver
-
Technology:
-
Precision casting
-
Application:
-
Lifting Fittings
-
Usage:
-
Lifting and connecting
-
Package:
-
Carton
-
OEM:
-
Accept
Quick Details
-
Finish:
-
Polished
-
Material:
-
Stainless steel
-
Place of Origin:
-
China
-
Brand Name:
-
CHONGHONG
-
Model Number:
-
CHYXJ11228
-
Product name:
-
Eye Bolt
-
Size:
-
6-24mm
-
Surface treatment:
-
Polished
-
Color:
-
Silver
-
Technology:
-
Precision casting
-
Application:
-
Lifting Fittings
-
Usage:
-
Lifting and connecting
-
Package:
-
Carton
-
OEM:
-
Accept

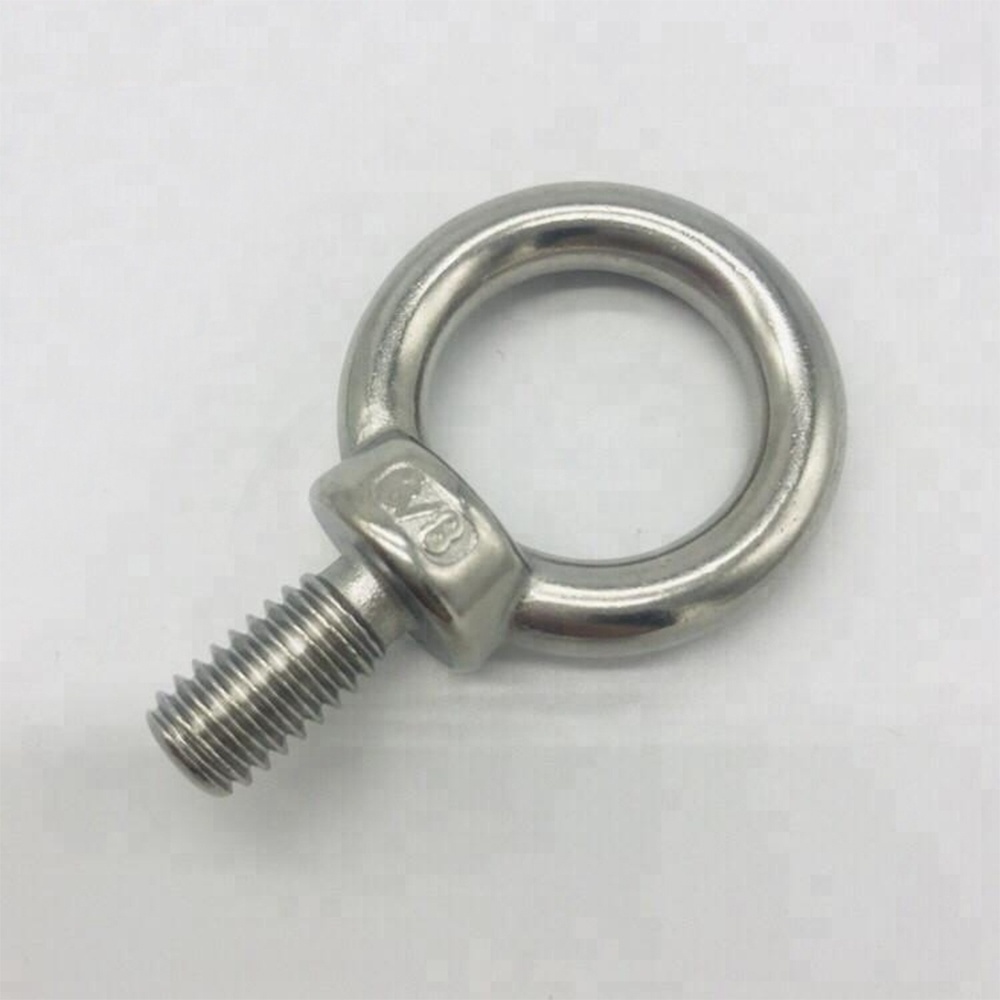

High Quality Stainless Steel 304/316 M6 M8 M10 M12 JIS B Type 1168 Eye Bolt High Polished Lifting Bolt
- Place of Origin:China
- Brand Name:CHONGHONG
- Product Name:Eye Bolt
- Standard:JIS B 1168
- Material:Stainless Steel 304/316
- Size:6-24mm
- Surface treatment:Polished
- Also Available in Carbon steel,Galvanized,Electro Galvanized,Hot dip galvanized,Self-color etc.
- Color:Silver
- Technology: Precision Casting
- Application:Lifting Fittings
- Usage:Lifting and connecting
- Packaging:Polybag, carton or as per customer's requirements
- Special specifications can also be produced according to drawing and sample.
Product advantages
- Low Density and High strength.
- Excellent Corrosion Resistance.
- Good resistance to high temperature.
- Excellent Bearing to cryogenic property.
- Good thermal properties.
- Low Modulus of Elasticity.
- Toughness ,light weight.
- High property of acid and alkali resistance.
| Size | A | B | C | D | WLL | WT |
| (mm) | (mm) | (mm) | (mm) | (mm) | (Tons) | (kgs) |
| 6 | 6 | 30 | 16 | 10 | 0.05 | 0.055 |
| 8 | 8 | 33 | 20 | 15 | 0.08 | 0.06 |
| 10 | 10 | 48 | 25 | 18 | 0.15 | 0.11 |
| 12 | 12 | 61 | 30 | 22 | 0.22 | 0.18 |
| 14 | 14 | 68 | 32 | 24 | 0.3 | 0.28 |
| 16 | 16 | 72 | 35 | 27 | 0.45 | 0.28 |
| 18 | 18 | 82 | 37 | 28 | 0.5 | 0.45 |
| 20 | 20 | 86 | 40 | 30 | 0.63 | 0.45 |
| 22 | 22 | 106 | 44 | 32 | 0.8 | 0.86 |
| 24 | 24 | 111 | 50 | 38 | 0.95 | 0.86 |
|
M.O.Q |
100PCS |
|
Delivery time |
10-20days after order confirmation |
|
Notes |
Special specifications and marks can be made according to customers requirements; |
|
Other related products |
Eye bolts,Turnbuckles,Wire Rope Clips,Shackles ,Chain accessories,Load binders,Hooks,Thimbles,Connecting Links,Master Links,Anchors,Lashing fittings and many other rigging hardwares. |
