Quick Details
-
Brand Name:
-
DEWO
-
Model Number:
-
SS5-00N2-200
-
Max. Current:
-
5A
-
Operating Temperature:
-
40T125
-
Protection Level:
-
IP40
-
Item:
-
5a 125vac micro switch
-
Model NO.:
-
SS5-00N2-200
-
Rating:
-
5A 125/250V
-
Electrical Life:
-
50,000 cycles
-
Mechanical Life:
-
1,000,000 cycles
-
Autuator:
-
button
-
Terminal Type:
-
solder terminal
-
Operating Force:
-
0.5~2.5N or as your requirement
-
Circuit:
-
SPST-NC
-
Approval:
-
UL, CUL, CB, KC, CE, CQC
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DEWO
-
Model Number:
-
SS5-00N2-200
-
Max. Current:
-
5A
-
Operating Temperature:
-
40T125
-
Protection Level:
-
IP40
-
Item:
-
5a 125vac micro switch
-
Model NO.:
-
SS5-00N2-200
-
Rating:
-
5A 125/250V
-
Electrical Life:
-
50,000 cycles
-
Mechanical Life:
-
1,000,000 cycles
-
Autuator:
-
button
-
Terminal Type:
-
solder terminal
-
Operating Force:
-
0.5~2.5N or as your requirement
-
Circuit:
-
SPST-NC
-
Approval:
-
UL, CUL, CB, KC, CE, CQC

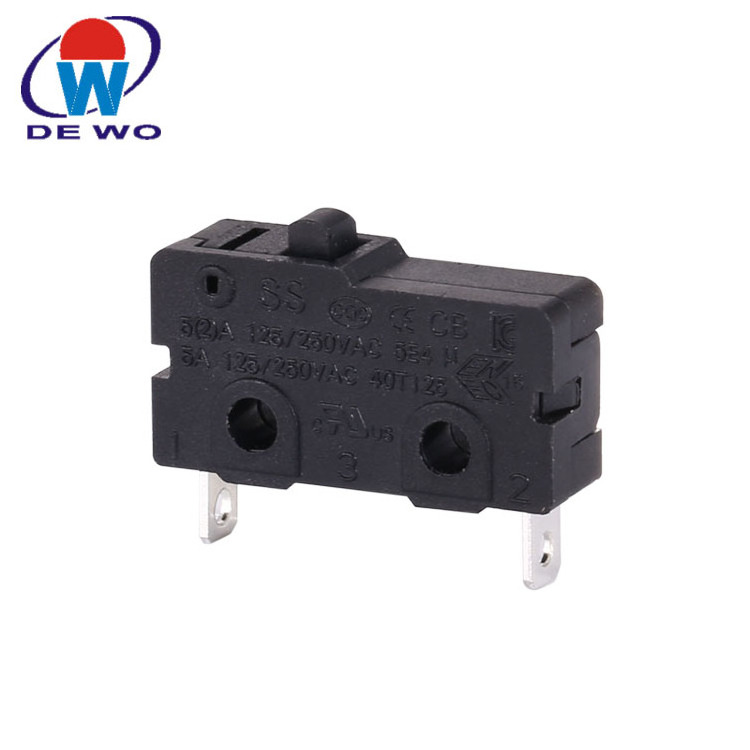

ENEC normally closed small 2 pin 40t125 5a 125vac micro switch
Features :
(1) Various levers and terminal types are available for choice.
(2) Compact design, assemble easily.
(3) Fast action, long life, which could decline cost.
(4) Quality is reliable, has got UL, CUL, ENEC, SGS, CQC, CE, CB, KC certificates.
(5) Strict inspection: automated machine and human double full-inspection.
(6) Widely used in home appliances, electronic devices, automobile industry automation machines.
|
Item |
ENEC normally closed small 2 pin 40t125 5a 125vac micro switch |
|
Model Number |
SS5-00N2-200 |
|
Rating |
5A 250VAC |
|
Temperature Range |
-40°C~+125°C |
|
IP Code |
IP40 |
|
Dimension |
19.8*10.6*6.4mm |
|
Material of Case & Knob |
PBT |
|
Material of Contacts |
AgNi10 |
|
Material of Terminal |
Sliver plated copper |
|
Electrical Service Life |
10,000 Cycles |
|
Mechanical Service Life |
1,000,000 Cycles |
|
Approval |
UL, CUL, ENEC, SGS, CQC, CE, CB, KC |
