Quick Details
-
Voltage:
-
220/380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
YIMU
-
Dimension(L*W*H):
-
2000(L)*800(W)*1700(H) mm
-
Weight:
-
400 KG
-
After-sales Service Provided:
-
Field maintenance and repair service
-
Labeling speed:
-
100-300 PCS/min
-
Suitable for label width:
-
5-150mm
-
Suitable for label length:
-
5-200mm
-
Labeling accuracy:
-
1mm
-
Keyword:
-
Tubular pens labeling machine
-
Product name:
-

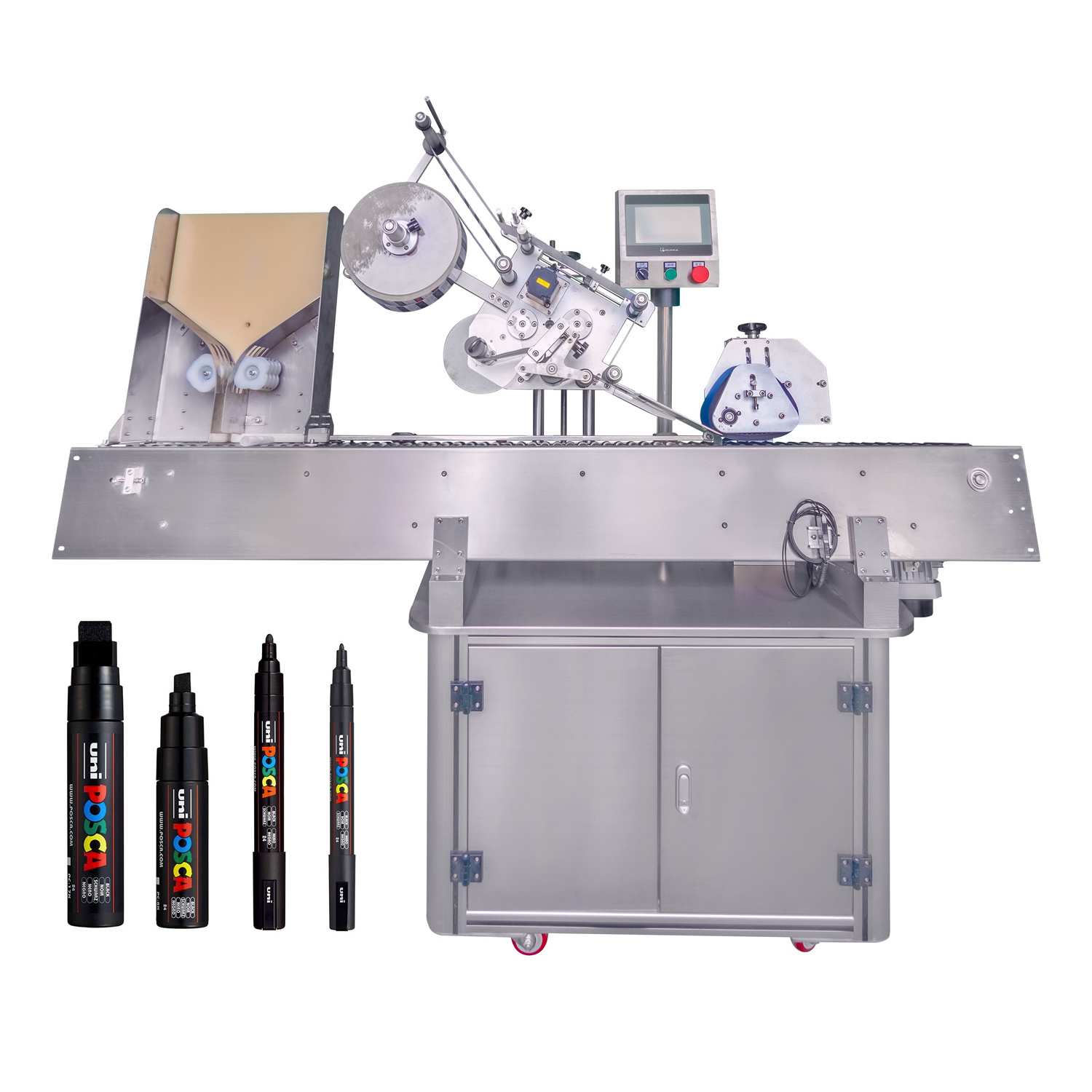

Auto Drawing Tools Sticker Labeling Machine
-
Usage:
-
Paint Pens labeling machine
-
Function:
-
Ahesive Sticker Labeling
-
Labeling type:
-
Wrap Round
Quick Details
-
Application:
-
Food, Beverage, Commodity, Chemical
-
Packaging Type:
-
case
-
Packaging Material:
-
Wood
-
Voltage:
-
220/380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
YIMU
-
Dimension(L*W*H):
-
2000(L)*800(W)*1700(H) mm
-
Weight:
-
400 KG
-
After-sales Service Provided:
-
Field maintenance and repair service
-
Labeling speed:
-
100-300 PCS/min
-
Suitable for label width:
-
5-150mm
-
Suitable for label length:
-
5-200mm
-
Labeling accuracy:
-
1mm
-
Keyword:
-
Tubular pens labeling machine
-
Product name:
-
Auto Drawing Tools Sticker Labeling Machine
-
Usage:
-
Paint Pens labeling machine
-
Function:
-
Ahesive Sticker Labeling
-
Labeling type:
-
Wrap Round
APPLICATION
PRODUCTS DESCRIPTION
1.This labeller is designed for cylindrical body or bottles with small diameter. It cannot stand on conveyor steadily. Such as ampoule, injecting bottles, correction fluid bottles, dry cells, pens, and so on.
2. It is horizontal labeling, automatic feeding product with distribution device.
3. The machine will stop running automatically when no label. Advanced international control system make labeling in high stability and high speed and low rate of leaving out.
4. PLC with touch screen control, stable performance and easy to operate.
5. Used stainless steel material and aluminum alloy. Good appearance and durable to use.
2. It is horizontal labeling, automatic feeding product with distribution device.
3. The machine will stop running automatically when no label. Advanced international control system make labeling in high stability and high speed and low rate of leaving out.
4. PLC with touch screen control, stable performance and easy to operate.
5. Used stainless steel material and aluminum alloy. Good appearance and durable to use.
PRODUCT PARAMENTERS
|
1
|
Label width(height)
|
10-150mm
|
|
2
|
10Label length
|
5-200mm
|
|
3
|
Capacity
|
20-300pcs/min(can be customized)
|
|
4
|
Conveyor speed
|
0-30m/min
|
|
5
|
Labeling accuracy
|
±0.5mm
|
|
6
|
Power supply
|
700W , 220V,50Hz/60Hz (customized)
|
|
7
|
Label reel Inner diameter
|
76mm or 40mm
|
|
8
|
Label reel outer diameter
|
Max 380mm
|
|
9
|
Machine size
|
L2000 * W750 * H1650 mm
|
|
10
|
Machine net weight
|
300KG
|
|
11
|
Online printer
|
Optional
|
|
12
|
Control system
|
Japanese Mitsubishi PLC
|
MAIN CONFIGURATION LIST
|
PLC
|
SIEMENS / MITSUBISHI
|
|
HMI
|
SIEMENS / WEINVIEW
|
|
Motor
|
RAYNEN servo motor / KINCO stepper motor
|
|
Sensor
|
SICK / KEYENCE / PANASONIC
|
|
Touches screen
|
WEINVIEW (Taiwan)
|
|
Frequency changer
|
Schneider(Germany)
|
|
Stainless steel material
|
304SS
|
|
PLC
|
SIEMENS / MITSUBISHI
|
|
HMI
|
SIEMENS / WEINVIEW
|
|
Motor
|
RAYNEN servo motor / KINCO stepper motor
|
|
Sensor
|
SICK / KEYENCE / PANASONIC
|
|
Touches screen
|
WEINVIEW (Taiwan)
|
|
Frequency changer
|
Schneider(Germany)
|
|
Stainless steel material
|
304SS
|
