- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
U30
-
Place of Origin:
-
China
-
Sampling Modes:
-
Real-time/ Pre-sampling/ Triggered sampling/ Periodic sampling
-
Features:
-
Support cable network and wireless network
-
ECG Algorithm:
-
Automatic Measurement & Analysis
-
Heart Rate Detection Range:
-
30-350
-
Frequency Response:
-
0.01 ~ 350Hz
-
Time Constant:
-
≥ 3.2s
-
CMRR:
-
≥ 115dB
-
Input Circuit:
-
≤ 50μA
-
Input Impedance:
-
≤ 50μA
-
A/D shift:
-
24 bits
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Brand Name:
-
Aliroad
-
Model Number:
-
U30
-
Place of Origin:
-
China
-
Sampling Modes:
-
Real-time/ Pre-sampling/ Triggered sampling/ Periodic sampling
-
Features:
-
Support cable network and wireless network
-
ECG Algorithm:
-
Automatic Measurement & Analysis
-
Heart Rate Detection Range:
-
30-350
-
Frequency Response:
-
0.01 ~ 350Hz
-
Time Constant:
-
≥ 3.2s
-
CMRR:
-
≥ 115dB
-
Input Circuit:
-
≤ 50μA
-
Input Impedance:
-
≤ 50μA
-
A/D shift:
-
24 bits

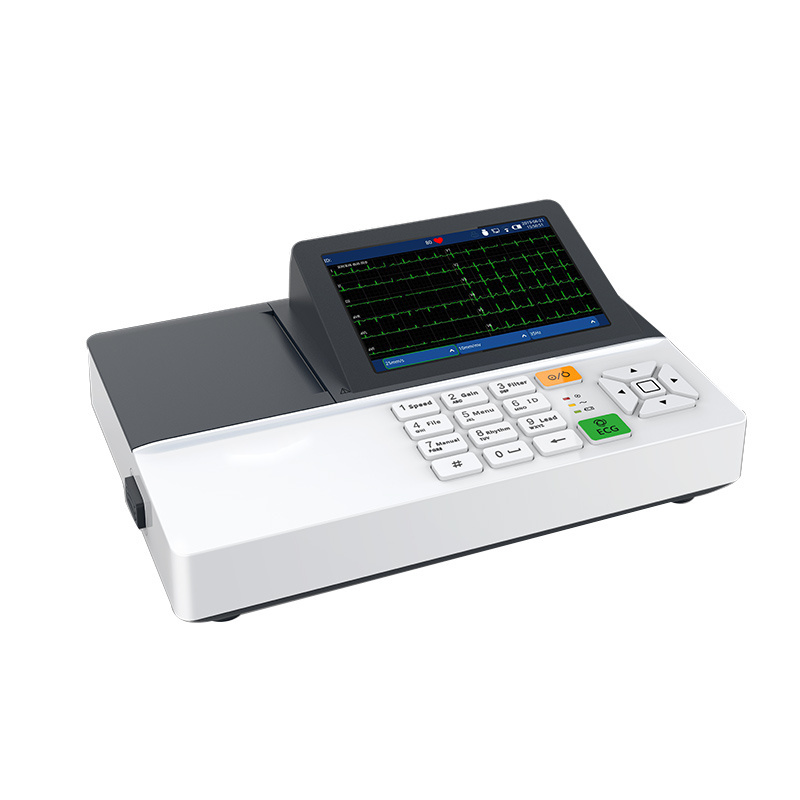

Product Description
Feature
5-inch tilted screen with grid backgrounde 12-lead synchronous acquisition and displays
Sampling rate : 32000HZ0
01-350HZ ultra-wide frequency response could acquire signals of patients from
pediatric to elder
With report management function , it supports report preview , query , editing , printing and transmitting
Support paperless records and storage of electronic cases , the machine stores more than 100cases
Support output of multiple formatss
Support wired and wireless way to connect InternOptional lifting trolley
Specification
|
connection
|
Support direct connection to third party systems, such as HIS and EMR system
|
|
Noise Level
|
≤ 50μA
|
|
Input Impedance
|
≥ 50 MΩ(10 Hz)
|
|
Sensitivity valve
|
20 μV
|
|
Polarization Voltage
|
±950mV
|
|
A/D shift
|
24 bits
|
|
Paper Speed
|
5, 6.25,10,12.5, 25, 50mm/s
|
|
Paper Type
|
Z-Fold Paper or Roll Paper
|
|
Paper Size
|
80mm*70mm-14m or 80mm*20m
|
|
Electrical Power
|
AC: 100V-240V, 50Hz/60Hz, 75VA
DC: Built-in Lithium Battery
|
|
Atmospheric Pressure
|
57kpa～106kpa
|
|
|
Ambient Temperature: +5℃～+ 40℃
Ambient Humidity: 20%~85%( no condensation)
|
|
System Inputs & Outputs
|
2*USB2.0/ LAN Connector/ SD Card Slot
|
