Quick Details
-
Table Size:
-
1200*1200mm or custom
-
Overall Dimensions:
-
custom to your needs
-
Weight:
-
1169 kg
-
Keywords:
-
Safety Door
-
Platform:
-
Checkered Steel Plate
-
Feature:
-
Easy Operation
-
Load capacity:
-
2000-8000kg
-
Lifting height:
-
4-12m
-
After Warranty Service:
-
Video Technical Support Maintenance Service
-
Product:
-
Hydraulic Guide Rail Cargo Lift
-
Use:
-
Work High
-
Capacity:
-
300kg-2000kg
-
Install:
-
Installed
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong
-
Power:
-
3kw
-
Table Size:
-
1200*1200mm or custom
-
Overall Dimensions:
-
custom to your needs
-
Weight:
-
1169 kg
-
Keywords:
-
Safety Door
-
Platform:
-
Checkered Steel Plate
-
Feature:
-
Easy Operation
-
Load capacity:
-
2000-8000kg
-
Lifting height:
-
4-12m
-
After Warranty Service:
-
Video Technical Support Maintenance Service
-
Product:
-
Hydraulic Guide Rail Cargo Lift
-
Use:
-
Work High
-
Capacity:
-
300kg-2000kg
-
Install:
-
Installed

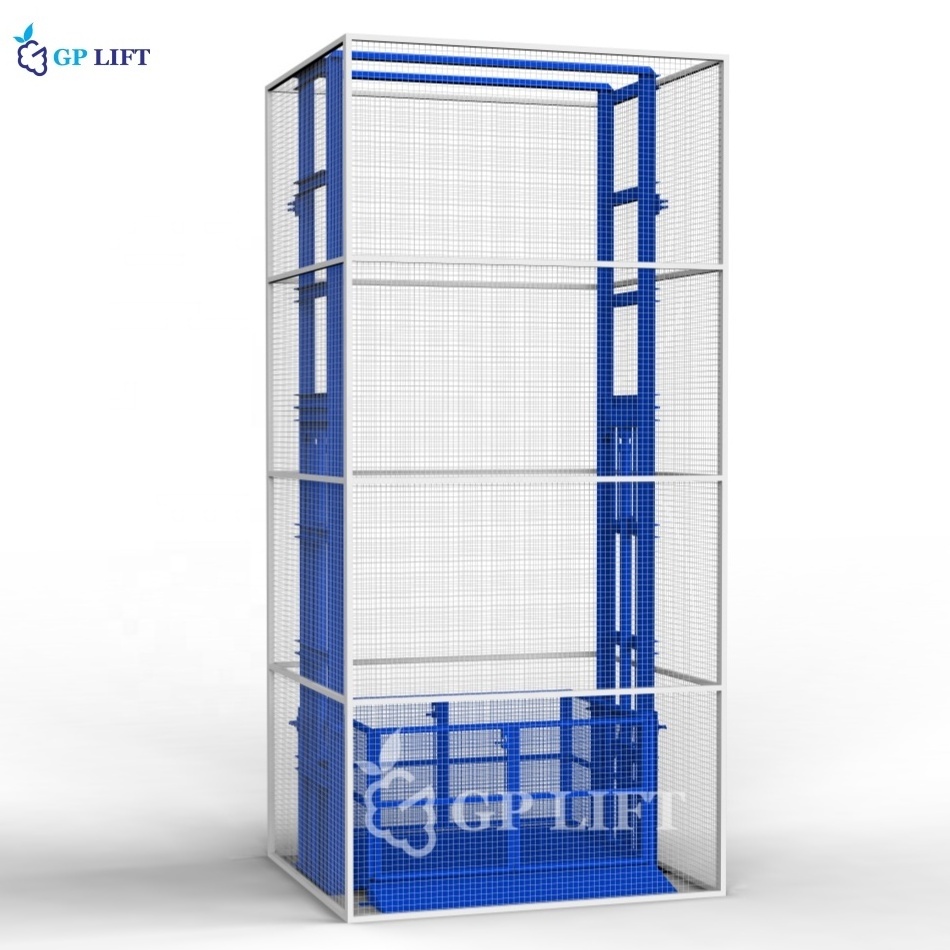

Crago lift / freight elevator is mainly a machine with a hydraulic cylinder to lift the table and drive the goods up.
Different parameters have different price.
So please confirm the parameters with us first, in order to design a best lift.
Different parameters have different price.
So please confirm the parameters with us first, in order to design a best lift.
Product Paramenters
|
Model
|
Loading Capacity
|
Platform Size
|
Travel Height
|
Motor Power
|
|
GPC1-3
|
1000 kg
|
1800*1800 mm
|
3000 mm
|
3.0 kw
|
|
GPC1-6
|
1000 KG
|
1800*1800 mm
|
6000 mm
|
3.0 kw
|
|
GPC1-9
|
1000 KG
|
1800*1800 mm
|
9000 mm
|
3.0 kw
|
|
GPC2-4
|
2000 KG
|
2000*3000 mm
|
4000 mm
|
4.0 kw
|
|
GPC2-8
|
2000 KG
|
2000*3000 mm
|
8000 mm
|
4.0 kw
|
|
GPC5-4
|
5000 KG
|
3000*4000 mm
|
4000 mm
|
5.5 kw
|
|
GPC5-8
|
5000 KG
|
3000*4000 mm
|
8000 mm
|
5.5 kw
|
|
GPC10-4
|
10000 KG
|
4000*5000 mm
|
4000 mm
|
11 kw
|
|
GPC10-8
|
10000 KG
|
4000*5000 mm
|
8000 mm
|
11 kw
|
|
GPC0.5-6
|
500 kg
|
1200*1200 mm
|
6000 mm
|
2.2 kw
|
|
GPC0.5-12
|
500 kg
|
1200*1200 mm
|
12000 mm
|
2.2 kw
|
|
GPC1-6
|
1000 kg
|
1200*1200 mm
|
6000 mm
|
3.0 olw
|
|
GPC1-12
|
1000 kg
|
1200*1200 mm
|
12000 mm
|
3.0 kw
|
