Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ewelift
-
Model Number:
-
NKLA15
-
Torque:
-
High Torque
-
Dynamic Load Push(N):
-
8000N
-
Speed at Full Load(mm/s):
-
3mm/s
-
Stroke Length(mm):
-
≤400mm
-
Mounting position:
-
H type or V type
-
Limit Switch:
-
Build-in
-
Overload Protection:
-
Yes
-
Duty Cycle:
-
10%. max 2min. continuous use
-
IP Grade:
-
IP54
-
Operating Temperature:
-
+5℃~ +40℃
-
Operation:
-
Head rotate
Quick Details
-
Speed(RPM):
-
High Speed
-
Continuous Current(A):
-
Current
-
Efficiency:
-
IE 2
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ewelift
-
Model Number:
-
NKLA15
-
Torque:
-
High Torque
-
Dynamic Load Push(N):
-
8000N
-
Speed at Full Load(mm/s):
-
3mm/s
-
Stroke Length(mm):
-
≤400mm
-
Mounting position:
-
H type or V type
-
Limit Switch:
-
Build-in
-
Overload Protection:
-
Yes
-
Duty Cycle:
-
10%. max 2min. continuous use
-
IP Grade:
-
IP54
-
Operating Temperature:
-
+5℃~ +40℃
-
Operation:
-
Head rotate
Product Description

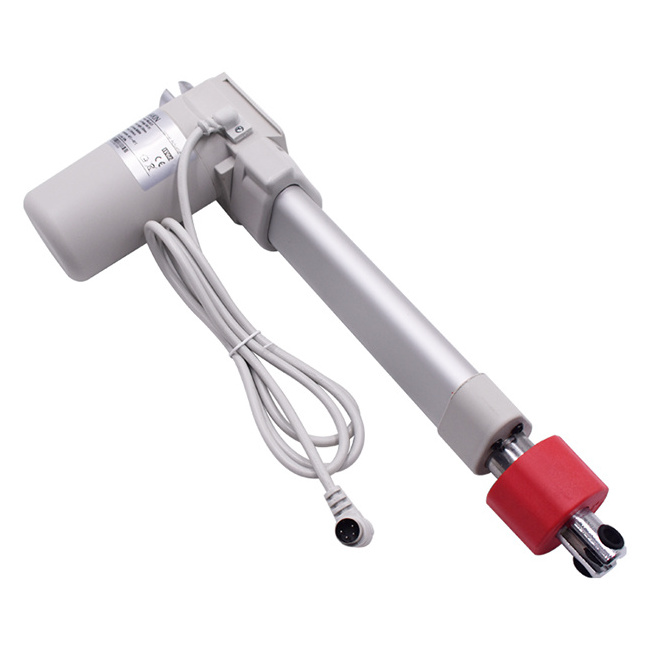

NKLA15 model
head rotate 8000n patient lift linear actuator
Actuator for all Bestcare 400 lb Patient Lift Models
100mm 4-inch Linear Actuator Motor Heavy Duty DC 12V for Auto Car RV Electric Door Opener Industrial Agricultural Machinery Clean
Sweeping Vehicles Vessels Cargo (1500N/330LBS, 1500N/330LBS)
Sweeping Vehicles Vessels Cargo (1500N/330LBS, 1500N/330LBS)
A single lift can tackle all of your transfer needs, whether it’s from the car, wheelchair, bed, recliner, or floor. Compatible
with most slings, you’ll never have to purchase a separate lift for the home and car. The sturdy frame can support up to a 350lbsweight capacity, making this a perfect, affordable solution for most use cases.
with most slings, you’ll never have to purchase a separate lift for the home and car. The sturdy frame can support up to a 350lbsweight capacity, making this a perfect, affordable solution for most use cases.
|
Product Name
|
Electric Linear actuator
|
|
Dynamic Load push(N)
|
8000N
|
|
Input(VDC)
|
12V/24V
|
Feature
Application
EWELIFT Linear actuators are widely used in medical line ,industrial line , home care line , smart office line and many other applications
Production line
we have linear actuators , lifting columns , control box , wired handset and wireless remote controller production lines and other lines.
Certifications
EWELIFT has passed system certification of ISO9001 ,and our products has been approved by CE .
Packing & Delivery
10pcs linear actuators packed in one carton , few cartons packed in pallet , shipping by sea , air and express.
and we also accept customized, please inform us in advance.
