Quick Details
-
Brand Name:
-
ELITE
-
Applicable Industries:
-
Laser industry, Laser Scanning, Industrial Equipment, Measuring Equipment
-
Weight (KG):
-
0.01 KG
-
Product name:
-
Processing 650nm 5mW Glass Lens Red Line Level Laser Production
-
Wavelength:
-
450nm(custom)
-
Operating Temperature:
-
-20℃~60℃
-
MOQ:
-
1 Piece
-
Output Power:
-
1mW ~ 200mW
-
Material:
-
Aluminium or Brass
-
Aperture:
-
1.0mm ~D8.0mm (Custom)
-
Laser Drive Modes:
-
CW, Analog Modulation, Digital Modulation
-
Lens:
-
Optical Glass Lens
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Spare Parts Type:
-
blue line laser diode module
-
Marketing Type:
-
New Product 2023
-
Brand Name:
-
ELITE
-
Applicable Industries:
-
Laser industry, Laser Scanning, Industrial Equipment, Measuring Equipment
-
Weight (KG):
-
0.01 KG
-
Product name:
-
Processing 650nm 5mW Glass Lens Red Line Level Laser Production
-
Wavelength:
-
450nm(custom)
-
Operating Temperature:
-
-20℃~60℃
-
MOQ:
-
1 Piece
-
Output Power:
-
1mW ~ 200mW
-
Material:
-
Aluminium or Brass
-
Aperture:
-
1.0mm ~D8.0mm (Custom)
-
Laser Drive Modes:
-
CW, Analog Modulation, Digital Modulation
-
Lens:
-
Optical Glass Lens
|
Specification
|
Industrial Diode Laser Module
|
|
|
|
|||
|
Wavelength
|
450nm （Custom)
|
|
|
|
|||
|
Output Power
|
1, 5, 10, 20, 35, 50, 80, 100, 150 and 200mW（Custom）
|
|
|
|
|||
|
Fan Angle
|
3° 5° 10° 15° 20° 30° 45° 60° 75° 90° 105° 120° (Custom)
|
|
|
|
|||
|
Linewidth at 1/e^2
|
0.1mm, 0.3mm, 0.5mm, 1.0mm, 2.0mm ,3.0mm,5.0mm,6.0mm,8.0mm(Custom)
|
|
|
|
|||
|
CDRH Class
|
I, II, IIIa, IIIb
|
|
|
|
|||
|
Laser Drive Modes
|
CW, Analog Modulation, Digital Modulation
|
|
|
|
|||
|
Lens
|
Optical Glass Lens
|
|
|
|
|||
|
Dimension
|
Ø6.5x14mm ~ Ø14x50mm (Custom)
|
|
|
|
|||
|
Operating Current
|
< 300mA
|
|
|
|
|||
|
Input Voltage
|
3.0V, 5.0V, 9.0V, 12.0V, 24.0V
|
|
|
|
|||
|
Operating Temperature
|
-20℃~60℃
|
|
|
|
|||
|
Storage Temperature
|
-40℃~85℃
|
|
|
|
|||
|
MTBF
|
>10,000hours
|
|
|
|
|||
Product Category

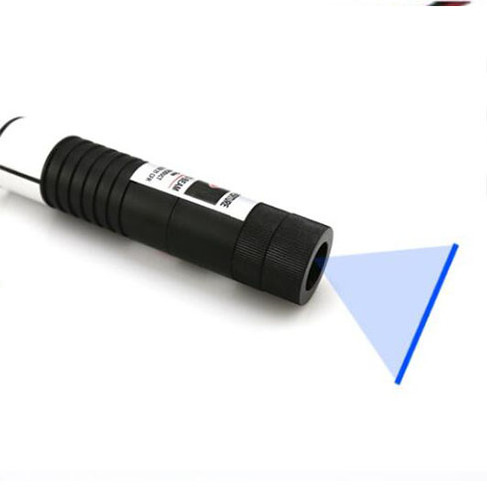

Various size Customize Adjustable 450nm 1-200 mw Blue Line Light Laser Head Pointer
Beam shapes: Point laser module, Line laser module,Cross line laser module, Micro-spot laser module.
Common Wavelength
Customize Adjustable 450nm 1-200 mw Blue Line Light Laser Head Pointer
Blue wavelength: 405nm, 445nm, 450nm, 488nm
Hot Sale 650nm 5mW Glass Lens Red Line Level Laser
Green wavelength: 520nm Various size Customize Adjustable 450nm 1-200 mw Blue Line Light Laser Head Pointer
Red wavelength: 635nm, 640nm, 650nm, 660nm, 685nm
Infrared wavelength: 730nm, 785nm, 808nm, 830nm, 850nm, 940nm, 980nm
Green wavelength: 520nm Various size Customize Adjustable 450nm 1-200 mw Blue Line Light Laser Head Pointer
Red wavelength: 635nm, 640nm, 650nm, 660nm, 685nm
Infrared wavelength: 730nm, 785nm, 808nm, 830nm, 850nm, 940nm, 980nm
Product Features
Processing 650nm 5mW Glass Lens Red Line Level Laser Production
1. Industrial laser modules use high-quality laser diodes.
Hot Sale 650nm 5mW Glass Lens Red Line Level Laser
2. Specially designed collimating lens and high stability (APC) drive circuit.
3. Reliable performance, service life of more than 10,000 hours, and high stability.
2. Specially designed collimating lens and high stability (APC) drive circuit.
3. Reliable performance, service life of more than 10,000 hours, and high stability.
