Quick Details
-
Productivity:
-
20M³/H
-
Place of Origin:
-
China
-
Weight:
-
6000 kg
Quick Details
-
Power Type:
-
Diesel
-
Max. vertical conveying distance:
-
500M
-
Max. horizontal conveying distance:
-
200M
-
Productivity:
-
20M³/H
-
Place of Origin:
-
China
-
Weight:
-
6000 kg

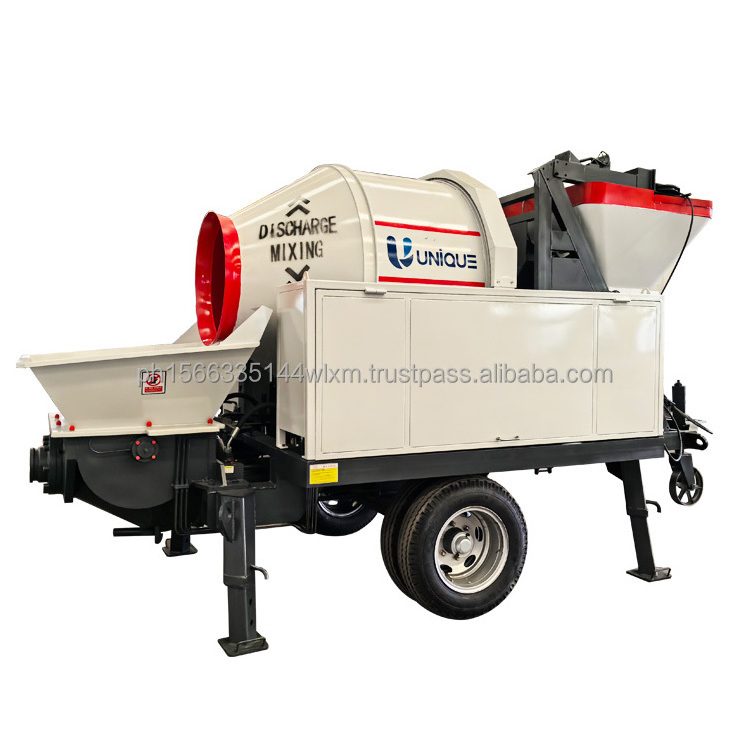

Concrete mixer with pump mobile diesel or electric concrete mixer pump jbt30
Product Description
Concrete mixer pump
is a new kind of engineering equipment of the combination of concrete mixer and concrete pump. It uses dual-cylinder hydraulic pumping system, small size and operating space and large concrete pouring and excellent characteristics of the mature and stable performance.
The product is suitable for 2 to 12-storey small building construction, and a variety of cave, roads, railway tunnels, water conservancy and hydropower engineering, geological hazards slope treatment works.
| Concrete |
JBS30
|
JBS40
|
JBS30
|
JBS40
|
|
|
Transfer Pump
|
Max. theoretical output
|
30m3/h
|
40m3/h
|
30m3/h
|
40m3/h
|
|
Theo. pumping pressure
|
9Mpa
|
10Mpa
|
10Mpa
|
10Mpa
|
|
|
Max. conveyor height
|
140m
|
160m
|
140m
|
160m
|
|
|
Max. distance
|
350m
|
500m
|
350m
|
500m
|
|
|
Distribution cylinder
|
The S tube placed valve
|
||||
|
Power type
|
Motor
|
Motor
|
Diesel
|
Diesel
|
|
|
Motor power
|
37kw
|
45kw
|
62kw
|
82kw
|
|
|
Main oil pump capacity
|
71ml/min
|
112ml/min
|
71ml/min
|
112ml/min
|
|
|
Hopper capacity
|
550L
|
550L
|
550L
|
550L
|
|
|
Max. aggregate diameter
|
20/30mm
|
30/40mm
|
20/30mm
|
30/40mm
|
|
|
|
Loading capacity
|
560L
|
720L
|
560L
|
720L
|
|
Unloading capacity
|
350L
|
450L
|
350L
|
450L
|
|
|
Mixing motor
|
5.5x2kw
|
5.5x2kw
|
/
|
/
|
|
|
Hoisting motor
|
4.5kw
|
4.5kw
|
/
|
/
|
|
|
Total
|
Dimension
|
4270x2350
x2980mm
|
4800x2200
x2800mm
|
4800x2200
x2800mm
|
6000x2200
x2800mm
|
|
Weight
|
3300kg
|
5000kg
|
5500kg
|
6000kg
|
|
