tubular linear actuator for Lift Assisted Driveway Bollards RS-L8-55

tubular linear actuator for Lift Assisted Driveway Bollards RS-L8-55

FOB Reference Price: Get Latest Price

≥10 Pieces

US $79

≥100 Pieces

US $69

≥500 Pieces

US $59

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: 1 year

Place of Origin:: Anhui, China

Brand Name:: RISESAT

Model Number:: RS-L8-75

Torque:: Requests

Diameter of the outer tube:: 55mm

Load Max.:: 15000N Max.

Voltage:: 12V/24V DC

IP grade:: IP66

Duty Cycle:: 10% 2 Mins Continuous Max

warranty time:: 1 year

Color:: Black / stainless steel color

Limited Switches:: built in (not adjustable)

Options:: Hall Sensor

Quick Details

Speed(RPM):: High Speed

Continuous Current(A):: 4A

Efficiency:: IE 1

Warranty:: 1 year

Place of Origin:: Anhui, China

Brand Name:: RISESAT

Model Number:: RS-L8-75

Torque:: Requests

Diameter of the outer tube:: 55mm

Load Max.:: 15000N Max.

Voltage:: 12V/24V DC

IP grade:: IP66

Duty Cycle:: 10% 2 Mins Continuous Max

warranty time:: 1 year

Color:: Black / stainless steel color

Limited Switches:: built in (not adjustable)

Options:: Hall Sensor

Products Description

We are factory. We can OEM and ODM.

Linear Actuator RS-L8-55

Feature / Benefits

Speclfications

Input：12-24V DC
Load Capacity：8000N
Speed：3-120mm/S
Standard stroke：100、150、200、250、300、350、400.mm（Option）
Min.install dimension:S+500mm(Option)
limit switches：Inner
Type of duty：S2-10min
Opera&on Temperature：-40°~+70°
Colour：Black or gray

Options : Hall Sensor,

Product Paramenters

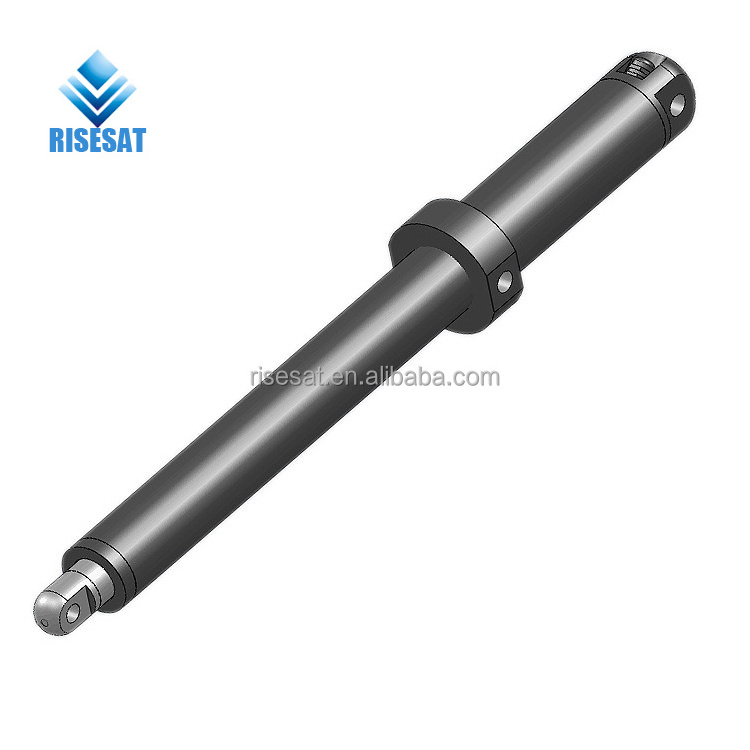

RS-L8-55 is a compact in-line linear actuator.

it is a slim in-line actuator with a robust design, high efficiency, hall sensor for positioning and synchronous function.

Applications
1. Solar Tracking
2. Industrial
3. Agricultural

Type	Max. Force(N)			Self-lock load(N)	Max. Speed(mm/s)		Current (24v)
	push	pull		Self-lock load(N)	no Load	full load	Current (24v)
RS-L8-55-01	8000	8000	10000	2.5	2	4.4
RS-L8-55-02	6000	6000	8000	3.5	3	4.4
RS-L8-55-03	4000	4000	6000	7.5	6.5	2.4
RS-L8-55-04	2000	2000	4200	14.5	12.5	2.4
RS-L8-55-05	100	100	100	120	118	1.8
