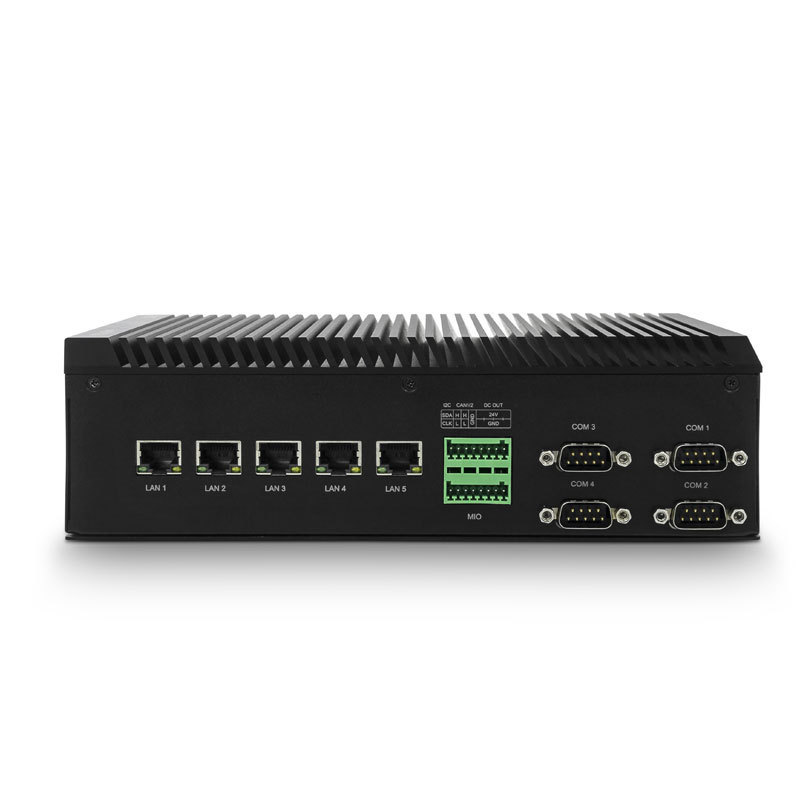

Specification Of the Industrial PC
|
Intel® Rocket Lake-S ， LGA1200， TDP 65W
|
|
|
CPU
|
|
|
|
Processor
|
Intel Celeron 6305E/Intel Core i3-1115G4E/Intel Core i5-1145G7 /Intel Core i7-1165G7
|
|
|
Chipset
|
Intel Tiger Lake U SOC
|
|
|
Memory
|
|
|
|
SSD
|
Max. Capacity DDR4-3200 Up to 32GB, Onboard 4GB/8GB/16GB DDR4 (Optional) and 1 x DDR4 SODIMM expansion slot
|
|
|
Storage
|
|
|
|
SATA/M.2/mSATA
|
1 x SATA3.0+PWR 2.5" HDD (Only one signal, not exist the same time to M.2)
|
|
|
|
1 x M.2 Key-M 2242/2280 SSD (SATA or NVME)
|
|
|
Display
|
|
|
|
Controller
|
Intel UHD Graphics for 11th or Iris Xe Graphics (Optional)
|
|
|
VGA/DVI-D/HDMI/DP
|
Three Displays: HDMI+DP+eDP
|
|
|
|
HDMI 2.0 max resolution up to 4096*2160@60Hz
|
|
|
|
DP1.4A up to 4096x2304x36bpp@60Hz or 5120x3200x24bpp@60Hz
|
|
|
|
eDP1.4 up to 4096x2304x36bpp@60Hz or 5120x3200x24bpp@24Hz
|
|
|
Network
|
|
|
|
Network Interface Card
|
4 x Intel i226 2.5Gb RJ45 (support POE, Optional ）
|
|
|
|
1 x Intel i210AT RJ45 (4KV Anti-surge）
|
|
|
I/O
|
|
|
|
USB
|
4 x USB3.0, 2个USB2.0 contact pin , 1 x USB2.0 Type A Inside
|
|
|
COM
|
4 x COM，COM1&2 RS232/485,COM3&4 RS232
|
|
|
LAN
|
5 x RJ45
|
|
|
GPIO
|
32-bit I/O (16-bit input, 16-bit output), 4 bit 24V@1A Constant voltage light source power supply
|
|
|
Audio
|
Mic-in+Line-out, support Digital audio output with power amplifier(3W, 4Pin wafer)
|
|
|
PS2
|
1 x PS/2
|
|
|
Other
|
2 x CAN2.0, Phoenix Port
|
|
|
Expansion
|
|
|
|
eSPI/LPC/SM BUS/I2C
|
1 x SM bus and 1 x I²C, Support 2.0mm Wafer for intelligence sensor
|
|
|
Other
|
1 x M.2 Key-B 3042/3052, support 4G/5G Wireless module (USB3+PCIe x1)
|
|
|
|
1 x M.2 Key-E 2230 slot, support half-length Wifi+BT module expansion
|
|
|
other
|
|
|
|
Watch dog
|
255-level timer interval, setup by software, Support timeout interrupt or system reset
|
|
|
TPM
|
Onboard encryption chip SLB9670, support TPM2.0
|
|
|
Power
|
|
|
|
Power
|
DC 9V~36V 2-Pole Phoenix DC plug in, Front I/O Power switch, LED Indicators
|
|
|
Software
|
|
|
|
BIOS
|
AMI UEFI BIOS
|
|
|
OS
|
|
|
|
OS
|
Win10 x64, Win11 x64, Linux Ubuntu 21.04 and above
|
|
|
Environment
|
|
|
|
Temperature & Humidity
|
Normal temperature: 0℃～45℃, 0%～90%, Non-Condensing, 85~105kPa
|
|
|
|
Wide temperature: -20℃~60℃, 0%～90%, Non-Condensing, 85~105kPa
|
|
|
Dimensions
|
|
|
|
L*W*H
|
230mm(L)×160mm(W)×68mm(H)
|
|
|
Installation
|
|
|
|
Type
|
Desktop & Wall Mount & DIN Rail & VESA
|
|
|
Part No.
|
CPU
|
DIMM
|
LAN
|
USB3.0
|
USB2.0
|
COM
|
CAN
|
GPIO
|
M.2
|
|
JEC-2510
|
6305E
|
4GBDDR4
|
4*2.5GbE POE
|
3
|
2
|
4
|
2
|
32bit
|
2
|
|
|
|
|
1*2.5GbE
|
|
|
|
|
|
|
|
JEC-2510
|
i3-1115G4E
|
8GBDDR4
|
4*2.5GbE POE
|
3
|
2
|
4
|
2
|
32bit
|
2
|
|
|
|
|
1*2.5GbE
|
|
|
|
|
|
|
|
JEC-2510
|
i5-1145G7
|
8GBDDR4
|
4*2.5GbE POE
|
3
|
2
|
4
|
2
|
32bit
|
2
|
|
|
|
|
1*2.5GbE
|
|
|
|
|
|
|
|
JEC-2510
|
i7-1165G7
|
8GBDDR4
|
4*2.5GbE POE
|
3
|
2
|
4
|
2
|
32bit
|
2
|
|
|
|
|
1*2.5GbE
|
|
|
|
|
|
|
