25mm2 50mm2 DC Power Cable 1x25mm2 Solar PV Wire H1Z2Z2 K Solar Panel Cable

25mm2 50mm2 DC Power Cable 1x25mm2 Solar PV Wire H1Z2Z2 K Solar Panel Cable

FOB Reference Price: Get Latest Price

≥500 Meters

US $1.7

≥5000 Meters

US $1.2

≥10000 Meters

US $0.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Jacket:: XLPE XLPO

Place of Origin:: Henan, China

Brand Name:: RMjT

Model Number:: H1Z2Z2-K ; PV1-F

Core:: 1 Core 2 Core

Rated Voltage:: DC: 1500V, 1800V; AC: 0.6/1kV

Size:: As requested

Color:: Red black

Standard:: 2 PfG 1169/08.2007

Certificate:: ROHS/CCC/VDE/ISO9001:2008/CE

Product name:: 1x25mm2 solar wire h1z2z2 k solar cable

Conductor:: Class stranded tinned copper IEC 60228,5

Keyword:: 50mm2 dc power cable

Name:: 25mm2 pv wire solar pannel cable

Quick Details

Insulation Material:: Xlpe

Application:: Industrial

Conductor Material:: Copper

Jacket:: XLPE XLPO

Place of Origin:: Henan, China

Brand Name:: RMjT

Model Number:: H1Z2Z2-K ; PV1-F

Core:: 1 Core 2 Core

Rated Voltage:: DC: 1500V, 1800V; AC: 0.6/1kV

Size:: As requested

Color:: Red black

Standard:: 2 PfG 1169/08.2007

Certificate:: ROHS/CCC/VDE/ISO9001:2008/CE

Product name:: 1x25mm2 solar wire h1z2z2 k solar cable

Conductor:: Class stranded tinned copper IEC 60228,5

Keyword:: 50mm2 dc power cable

Name:: 25mm2 pv wire solar pannel cable

25mm2 50mm2 DC Power Cable 1x25mm2 Solar PV Wire H1Z2Z2 K Solar Pannel Cable

_{PV1-F photovoltaic cable is a special cable used for solar photovoltaic modules in the system. It has the characteristics of weather resistance, high temperature resistance, and friction resistance. It has a long service life and high-quality oxygen-free tinned copper conductors. To ensure the superior conductive effect, high-performance insulating materials and sheath materials after radiation cross-linking by a high-energy electron accelerator have reliable insulating and mechanical properties.}

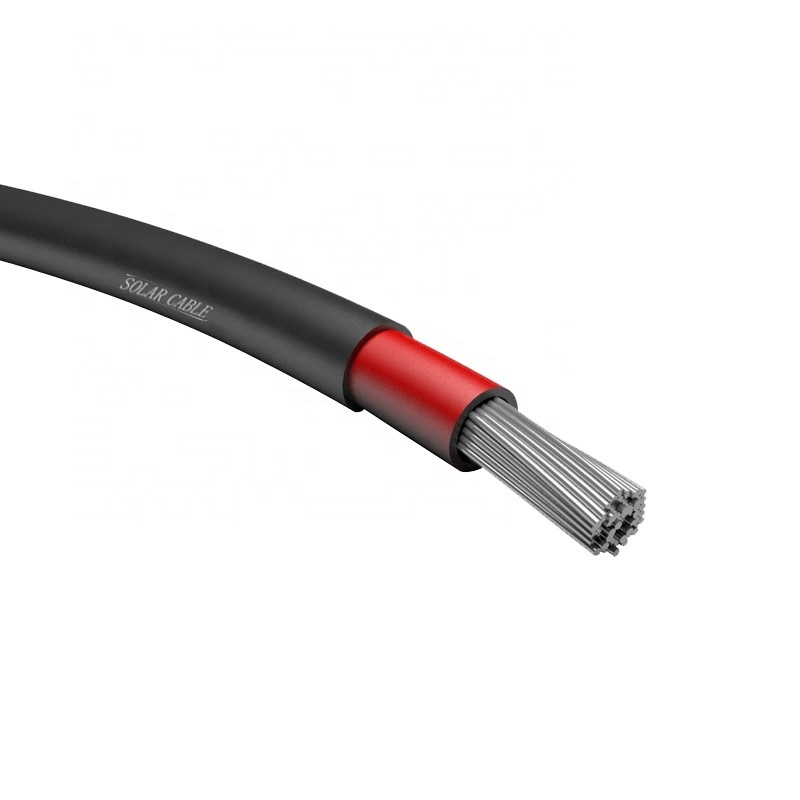

_Structure

_{Application standard:

2 PfG 1169/08.2007

Conductor:

Stranded tinned copper wire conforming to DIN VDE 0295 and IEC 60228 Class 5

Insulation:

Irradiation cross-linked low-smoke halogen-free flame-retardant polyolefin}

_{Sheath:

Irradiation cross-linked low-smoke halogen-free flame-retardant polyolefin}

_{Insulation nominal thickness:

0.8mm}

_{Nominal thickness of sheath:

0.9mm}

_{Nominal cross section:

4mm2}

_{Outer diameter of finished wire:

6.1±0.1mm

Specification:

1×1.5～1×70mm²; 2×1.5～2×35mm² AWG American standard and other specifications can be consulted and customized}

^{Electrical Performance}

^{Rated voltage U0/U:

0.6/1 kV AC; 0.9/1.5 kV DC

Maximum allowable AC voltage:

1.8 kV DC (conductor/conductor, no grounding system,

when the circuit is unloaded)}

^{Insulation resistance:

1000 MΩ-km}

^{Conductor resistance (20℃):

≤5.09Ω/km}

^{Sheath surface resistance:

the surface resistance of the finished cable sheath should not be less than 109Ω}

^{Thermal Performance}

^{Indoor temperature:

-40℃ ~ +90℃

Conductor temperature:

IEC / EN 60216-1 120 ℃ (20000h)

Short circuit temperature:

200℃/5 s

Heat resistance test:

EN 60216-2 (temperature +120° C)

High temperature pressure test:

EN 60811-3-1

Heat resistance:

EN60068-2-78, 85% humidity}

_{Mechanical Behavior}

_{Minimum bending radius:

4×OD (fixed), 5×OD (flexing)

Osmotic:

2 PfG 1169 / 08.2007 appendix F

Slot propagation:

2 PfG 1169/08.2007 Appendix G

Tensile strength and elongation of insulation and sheath:

EN 60811

Life expectancy:

25 years}

_{Nominal cross-sectional area}	_mm2	_1.5	_2.5	_4.0	_6.0	₁₀	₁₆	₂₅	₃₅
_{Conductor type}			5	5	5	5	5	5	5	5
_{Nominal conductor diameter}	mm	_1.58	_2.04	_2.59	_3.17	_4.07	_5.22	_6.51	_7.71
_{Nominal insulation thickness}	mm	0.7	0.7	0.7	0.7	0.7	0.7	0.9	0.9
_{Nominal sheath thickness}	mm	0.8	0.8	0.8	0.8	0.8	0.9	1.0	1.1
_{Average outer diameter upper limit}	mm	5.4	5.9	6.6	7.4	8.8	10.1	12.5	14.0
_{Nominal weight}	kg/km	52	67	87	113	178	254	363	473

_{Application

PV1-F cable for indoor photovoltaic solar installation of electric equipment line.

Main features and advantages:

PV1-F cable having superior photovoltaic UV, heat, cold, ultraviolet radiation resistance, ozone resistance, water resistance, acid resistance, salt corrosion, the superior wear resistance and weather capability.}

_Packing

^{Material:

Steel wooden drum (fumigation) Cable length in each drum: 500m/1000m or as per actual cable length requirements.

Drum size:

As per cable length and container size

*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!}

_Delivery

^{Port:

Tianjin, or other ports as per your requirements.

Sea freight:

FOB/C&F/CIF quotation are all available.

*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.}

Our Company

_{People's Cable Group was established in 2007. It is a national non-regional enterprise integrating R&D, production and sales of wires and cables, with a total area of more than 300,000 square meters and a building area of 230,000 square meters. The actual capital assets exceed 350 million U.S. dollars, and there are 630 employees, including 65 professional and technical experts. It is located at No. 13, Yongding East Road, People's Cable Industrial Park, Gongyi Economic and Technological Development Zone, Zhengzhou City, Henan Province, China. National Highway 310 and Lianhuo Expressway run through it. The geographical position is superior and the transportation is very convenient. It is a good place for tourism and business negotiation.}

Main Products

^{People's Cable Group Co., Ltd. specializes in the production of high, medium and low voltage series of wires and cables. The main products are PVC insulated power cables, fire-resistant cables, flame-retardant cables, control cables, rubber cables, overhead insulated cables, low-voltage coaxial cables-smokeless Halogen-free cables and shielded cables, pre-branched cables, waterproof cables, rat-proof cables, aluminum stranded wires, steel core aluminum stranded wires, railway transportation cables and cables, PVC insulated wires, buried wires, anti-aging wires, etc., more than 30 varieties, More than 3000 products of several specifications have been exported to more than ten countries and regions such as Southeast Asia, the Middle East, Africa and South America.}

Certificate

_{People's Cable Group Co., Ltd. has strong technical force, advanced production equipment, complete testing equipment, reliable product quality and excellent after-sales service. The products are produced in strict accordance with GB, ICE, BS and other standards. It has passed ISO9001-2008 quality system certification, 14001-2004 environmental system certification, 28001-2001 occupational health and safety management system certification, national compulsory CCC certification, and obtained a national industrial product production license. Over the years, it has passed the inspections of national, provincial and municipal quality supervision departments many times. In 2010, it was recognized as a provincial-level enterprise technology research and development center by the Henan Provincial Development and Reform Commission.}

FAQ

_{Q1:When can I get the price?

We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

Q2.How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.

Q3.How long can I expect to get the sample?

After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days.
The samples will be sent to you via express and arrive in 3~5 days.

Q4.What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.}
