Quick Details
-
Application:
-
forging,Hardening,Annealing,Quenching
-
Input voltage:
-
380V, 3 phase, 50/60HZ
-
Frequency:
-
10KHZ ~ 50KHZ
-
Power:
-
1KW-60KW
-
Max Water Temperature:
-
50℃
-
Certification:
-
CE ISO
-
After Warranty Service:
-
Online support
Quick Details
-
Place of Origin:
-
Shandong, China (Mainland)
-
Brand Name:
-
ENWEI
-
Weight (KG):
-
60
-
Application:
-
forging,Hardening,Annealing,Quenching
-
Input voltage:
-
380V, 3 phase, 50/60HZ
-
Frequency:
-
10KHZ ~ 50KHZ
-
Power:
-
1KW-60KW
-
Max Water Temperature:
-
50℃
-
Certification:
-
CE ISO
-
After Warranty Service:
-
Online support
High Frequency induction heating machine
Induction Heating Equipment offers a controllable and localized heating method to the parts or components with very low cost but creates significant costs savings versus other traditional process heating technologies. According with different heating solutions, Induction Heating machine suppling the medium frequency series, high frequency series, Ultrasonic frequency for a wide applications like soldering, brazing, heat treating, bending, melting, crystal growing, hardening, annealing, and shrink fitting.

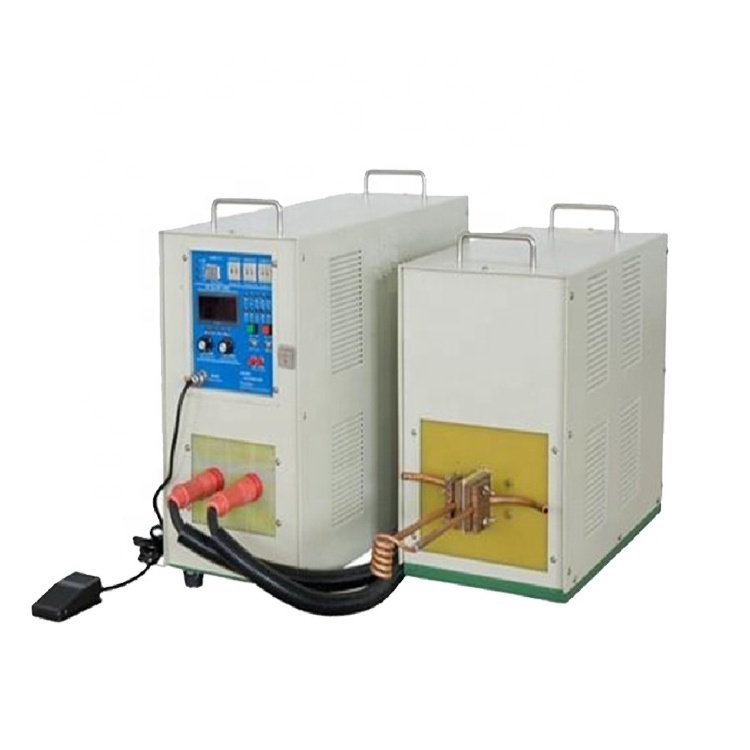

High Frequency Induction Heating Machine
Application:
* Brazing
* Forging
* Hardening Tempering
* Annealing Quenching
* Melting
* Other heating treatment
Features:
* Model: 15KW, 25KW, 35KW 45KW
* IGBT Type
* Frequency: 30 ~ 100KHZ
* 24 Hour
continuous
work
* Voltage & current full display. Adjust heating, Holding time
* Easy to operate and more stable
* Design different type induction coil
|
Model
|
MY-15KW
|
MY-25KW
|
MY-35KW
|
MY-45KW
|
|||
|
Input Voltage
|
220V
|
3 x 380V, 50/60HZ
|
|
|
|||
|
Input Current
|
20A
|
30A
|
50A
|
65A
|
|||
|
Ouptut Power
|
1~15KW
|
1~25KW
|
1 ~ 35KW
|
1~45KW
|
|||
|
Output Frequency
|
30~100KHZ
|
|
|
30~80KHZ
|
|||
|
Cooling Water
|
Ø 0.2 Mpa 2 ~ 6 L/Min
|
|
0.2 Mpa 4 ~ 8 L/Min
|
|
|||
|
Cable Length
|
1 ~ 5 meters
|
|
|
|
|||
|
Size (cm)
|
48 x 21 x 44
|
59 x 24 x 48
|
65 x 26 x 52
58 x 28 x 48 |
69 x 31 x 52
58 x 28 x 48 |
|||
|
Weight
|
22kg
|
30 kg
|
60 kg
|
70 kg
|
|||
|
Model
|
MY-60KW
|
MY-80KW
|
MY-120KW
|
MY-160KW
|
|||
|
Input Voltage
|
3 x 380V, 50/60HZ
|
|
|
|
|||
|
Input Current
|
90A
|
120A
|
50A
|
65A
|
|||
|
Ouptut Power
|
1~60KW
|
1~80KW
|
1 ~ 120KW
|
1~160KW
|
|||
|
Output Frequency
|
10~50KHZ
|
|
|
10~5KHZ
|
|||
|
Cooling Water
|
Ø 0.2 Mpa 4 ~ 10 L/Min
|
|
0.2 Mpa 5-12 L/Min
|
|
|||
|
Cable Length
|
1 ~ 5 meters
|
|
|
|
|||
|
Size (cm)
|
75 x 55 x 80
60 x 50 x 55 |
75 x 55 x 80
60 x 50 x 55 |
75 x 55 x 120
70 x 55 x 60 |
75 x 55 x 120
70 x 55 x 60 |
|||
|
Weight
|
80kg
|
100 kg
|
120 kg
|
140 kg
|
|||
* Heat treatment for various automobile and motorcycle fittings, such as crankshaft,connecting rod, piston pin, chain wheel,
aluminum wheel, valve, rock arm shaft,semi drive shaft, small shaft and fork.
* Heat treatment for various electric tools, such as gear and axes.
* Heat treatment for machine tools,such as lathe deck and guide rail.
* Hardening for various hardware metal parts and machined parts, such as shaft, gear chain wheel, cam, chuck and clamp etc.
* Annealing of various stainless steel products, such as stainless steel basin, annealed and extruded can, annealed folded edge, annealed sink, stainless steel tube, tableware and cup.
* Forging of various other metal work pieces, such as round steel, sheet/plate, pipe and others.
Induction heating power and transformer generally choose the standard fumigation-free wood packing boxes for packaging.Other accessories, according to the specific items to choose the appropriate packaging.
Q: Why choose our Company?
A: We are manufacture which had in this filed for nearly 20 years.No matter quality,price,service,delivery time,we all have large advantage.
Q:How to choose suiteble machine?
A:You can tell us your application,need forging,hardening,welding,melting or other,pass me workpiece material & size,Temperature requirement and heating time requirement.Then we will recommend fit machine for you reference.
Q:How about the machine delivery time?
A: Small machine delivery time is 3~7 workdays.Big machine delivery time 15~25 workdays.
Q:How about the machine warranty?
A:Our goods support one year warranty not by personal purpose,support technical service all life.
During the warranty,if machine have problem need change spare parts,we can replace for you charge free.
