Quick Details
-
Model Number:
-
145BGL
-
Frequency:
-
50Hz
-
Communication Mode:
-
RS485
-
encoder type:
-
1024/2500 line incremental,resolver
-
control mode:
-
vector control SVPWM
-
protect function:
-
over load,over current,over voltage,over heat,encoder fault
-
position precision:
-
1 pulse
-
Control:
-
DSP
-
motor insulation:
-
Class B(130deg. temp)
-
weight:
-
28~273kgs
-
application:
-
NC, packing machine, printer, textile, plastic machine
Quick Details
-
AC Voltage:
-
220V/380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Lunyee
-
Model Number:
-
145BGL
-
Frequency:
-
50Hz
-
Communication Mode:
-
RS485
-
encoder type:
-
1024/2500 line incremental,resolver
-
control mode:
-
vector control SVPWM
-
protect function:
-
over load,over current,over voltage,over heat,encoder fault
-
position precision:
-
1 pulse
-
Control:
-
DSP
-
motor insulation:
-
Class B(130deg. temp)
-
weight:
-
28~273kgs
-
application:
-
NC, packing machine, printer, textile, plastic machine
Specification
|

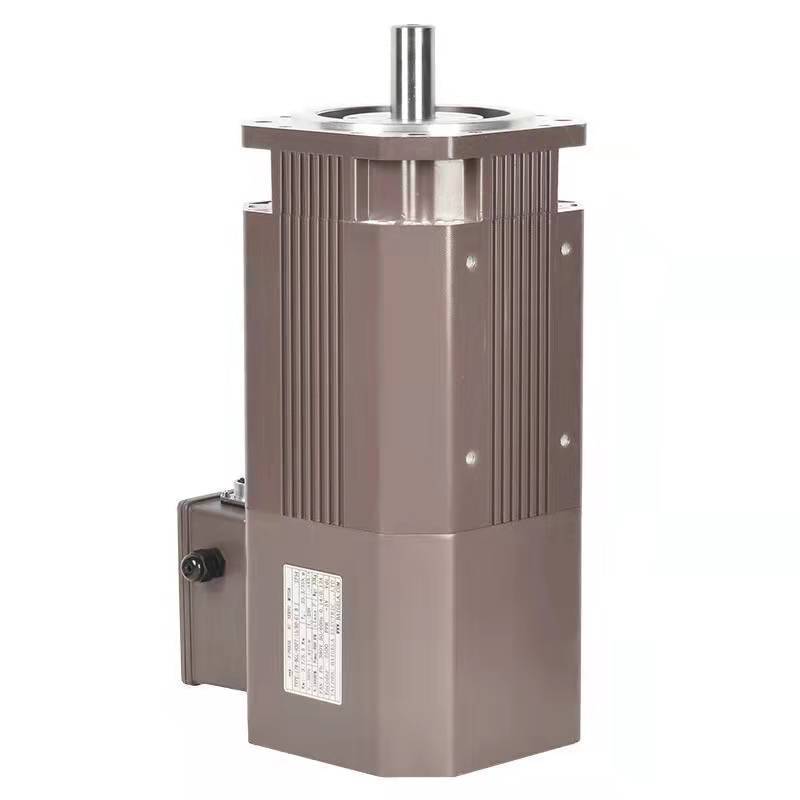

Motor Model
|
145BGL-M3P715/240
|
|
Rated Power(KW)
|
3.7
|
|
Rated Current(A)
|
12
|
|
Rated Torque(Nm)
|
11.6
|
|
Rated Voltage(V)
|
280
|
|
Rated Speed(r/min)
|
3000
|
|
Rated Frequency(HZ)
|
100
|
|
Max Speed(r/min)
|
24000
|
|
Inertia(KG.cm2)
|
41.5
|
|
Fan Power(W)
|
50
|
|
Fan Voltage(V)
|
220
|
Torque Curve
Drawing
Packing & Delivery
Applications
1. CNC lathes,milling machines,vertical lathes,heavy sleeper;
2. CNC milling machines,vertical machining centers,horizontal machining centers,horizontal machining center;
3. CNC grinding machine,vertical grinding machines,boring and milling machine;
4. drilling center,engraving and milling machine,hobbing machine,slotting machine,milling machine;
5. electric vehicles
