Quick Details
-
Place of Origin:
-
Guangdong, China
-
Input Voltage:
-
100-240VAC
-
Output current:
-
1.0A
-
light type:
-
dimmable
-
Size:
-
86*86*48.5MM
-
Warranty:
-
5 years
-
Remote distance:
-
30m
Quick Details
-
Warranty(Year):
-
5-Year
-
Type:
-
AC Triac led Dimmer switch
-
Max. Load Power:
-
240V
-
Place of Origin:
-
Guangdong, China
-
Input Voltage:
-
100-240VAC
-
Output current:
-
1.0A
-
light type:
-
dimmable
-
Size:
-
86*86*48.5MM
-
Warranty:
-
5 years
-
Remote distance:
-
30m
Technical parameters of AC Triac led Dimmer switch
● Input voltage: AC100-240V
● Output voltage: AC100-240V
● Output current: Max 1.0A
● Remote distance: 30m
● Work temperature: -30°C~55°C
● Product size: L86×W86×H48.5mm

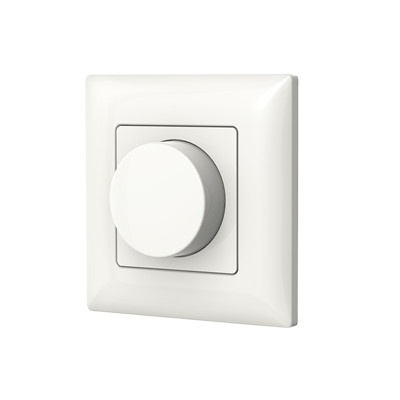

The KS is an innovative AC phase-cut dimmer with both RF control and rotary manual control. The AC dimmer is
designed with 100-240VAC wide input and output, 1 channel output, both triac dimmable and mosfet dimmable.
The RF triac dimmer can be compatible with a variety of single color RF series remote controls. While working
with a WiFi-Relay controller, the dimmer can be WiFi controlled via APP installed on IOS or Android system.
Feature
● Rotary panel AC phase-cut dimmer, 1 channel output.
● To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights.
● Rotate knob to change brightness, support push and long push operation.
● Smooth dimming and switch without any flickering.
● Leading edge dimming or trailing edge dimming set by dip switch.
● Great compatibility with a variety of dimming RF remote.
● Adopt 2.4GHz wireless technology, remote distance up to 30m.
● Work with WiFi-relay controller after install APP on IOS and Android system.
Safety information Warranty agreement
1. The product shall be installed and serviced by a qualified person.
2. This product is non-waterproof.Please avoid the sun and rain.
3. Goodheat dissipation will prolong the working life of the LED driver, please ensure good ventitation.
4. Ensure all wire connections and polarities are correct and secure before applying power to avoid any damages to the LED lights.
5. If a fault accurs please return the product to your supplier.Do not attmept to fix this product by yourself.
Warranty agreement
1,3-year warranty
●The warranty is for free repair or replacement and covers manufacturing faults only.
●Do not include fees of on site maintenance and consumumable parts.
2,Limited warranty
●Artificial damage caused by improper use, such as improper accessories, improper installation, did not follow the instructions, error using or negligence.
●Any damages caused by force majeure, such as natural disaster, abnormal voltage.
●The normal use of products caused by aging, wear and tear, but it does not affect the normal use.
