Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, Other, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
lingchuang
-
Voltage:
-
220V/380V/440V
-
Dimension(L*W*H):
-
3700*2100*2700mm
-
Weight (KG):
-
6000 kg
-
Product Name:
-
Hollow Block Making Machine
-
Model:
-
QTJ4-20
-
Power:
-
20.5kw
-
Weight:
-
6000kg
-
Overall size:
-
3700*2100*2700mm
-
Vibrating frequency:
-
300-4500r/pmm
-
Vibrationg force:
-
60KN
-
Forming cycle:
-
20-25s
-
Raw material:
-
Flyash
-
Pallet size:
-
900*550*30mm
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Other
-
Brick Raw Material:
-
CONCRETE
-
Production Capacity (Pieces/8 hours):
-
Other, 4480 pcs/8hours, 2500 pcs/8hours, 3400 pcs/8hours, 1920 pcs/8hours, 5760 pcs/8hours, 1500 pcs/8hours, 1280 pcs/8hours, 3000 pcs/8hours, 12000 pcs/8hours, 3200 pcs/8hours, 2560 pcs/8hours, 1000 pcs/8hours, 800 pcs/8hours, 20000-50000blocks/day
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, Other, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
lingchuang
-
Voltage:
-
220V/380V/440V
-
Dimension(L*W*H):
-
3700*2100*2700mm
-
Weight (KG):
-
6000 kg
-
Product Name:
-
Hollow Block Making Machine
-
Model:
-
QTJ4-20
-
Power:
-
20.5kw
-
Weight:
-
6000kg
-
Overall size:
-
3700*2100*2700mm
-
Vibrating frequency:
-
300-4500r/pmm
-
Vibrationg force:
-
60KN
-
Forming cycle:
-
20-25s
-
Raw material:
-
Flyash
-
Pallet size:
-
900*550*30mm

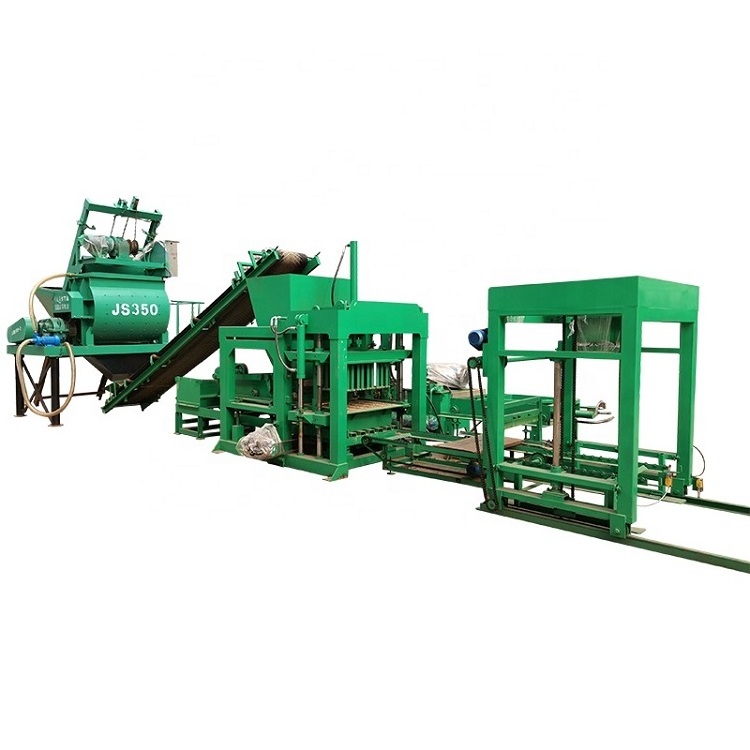

QT4-20 Full Automatic Concrete Hollow Block Bricks Making Machine Maker Manufacturer Price In India China
Working Video:
https://www.youtube.com/watch?v=qaVuMKAqhXs&feature=youtu.be
QTJ4-20 Block Production Line Main Parameter
|
Model |
QTJ4-20 |
Power |
20.5kw |
|
Weight |
5000kg |
Overall size |
3700(L)*2100(W)*2700(H)mm |
|
Forming cycle |
20-25S |
Pallet size |
850/880*550*20mm |
|
Vibrating force |
60KN |
Down pressure |
4-7 ton |
QTJ4-20 Block Production Line Base Installation
|
Area |
2600-3300 m2 |
workshop |
80m2 |
|
Raw Material Work Shop |
400m2 |
Office |
50m2 |
|
Staff And Workers |
5-6 person |
Power Distribution |
40kw |
|
Water Consumption |
5T per day |
Pallets need |
1500pcs |
QTJ4-20 block making machine Production capacity:
|
Size(LxWxH) |
Pcs/Mould |
Pcs/hour |
Pcs/ 8 Hr |
|
400X150X200 |
5 |
1200 |
9600 |
|
400X200X200 |
4 |
960 |
7680 |
|
400X100X200 |
7 |
1680 |
13440 |
|
400X250X200 |
3 |
720 |
5760 |
|
240X115X52 |
26 |
6240 |
49920 |
|
250x250x60 |
6 |
1440 |
11520 |
|
200x100x60 |
14 |
3360 |
26880 |
|
200x160x60 |
9 |
2160 |
17280 |
|
225x112.5x60 |
12 |
2880 |
23040 |
|
Can Produce all kind of hollow and solid block,paving blocks |
|||
