Quick Details
-
Product name:
-

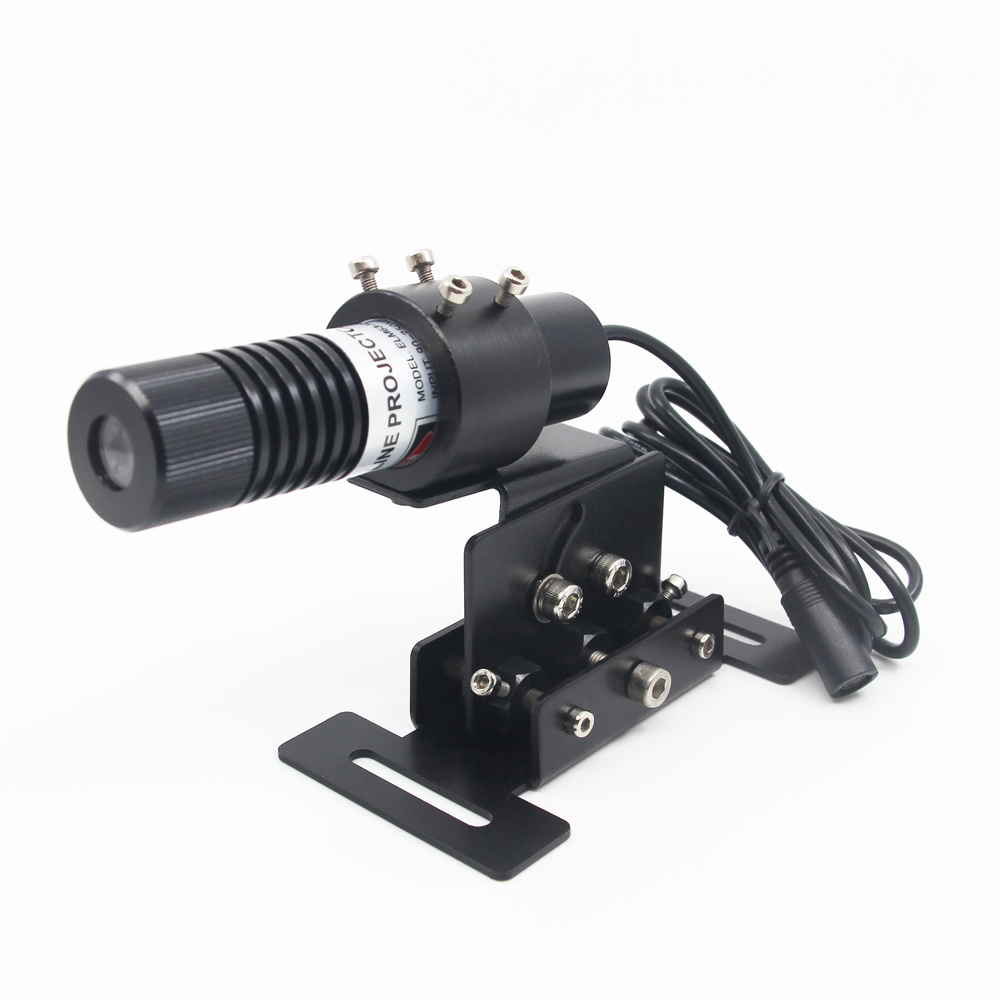

High Stability Line Laser Projector
-
Wavelength:
-
635nm 640nm 650nm 660nm
-
Output power:
-
3mw to 200mw
-
Material:
-
Aluminum
-
CDRH Class:
-
Class IIIa, Class IIIb
-
Type:
-
Focusd
-
Fan Angle:
-
130°,110°,90°(Custom)
-
Lens:
-
Optical glass
-
Minimum Quantity:
-
1pc
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Spare Parts Type:
-
laser component
-
Weight (KG):
-
1 KG
-
Product name:
-
High Stability Line Laser Projector
-
Wavelength:
-
635nm 640nm 650nm 660nm
-
Output power:
-
3mw to 200mw
-
Material:
-
Aluminum
-
CDRH Class:
-
Class IIIa, Class IIIb
-
Type:
-
Focusd
-
Fan Angle:
-
130°,110°,90°(Custom)
-
Lens:
-
Optical glass
-
Minimum Quantity:
-
1pc
|
Specification
|
Laser Line Projector
|
|
|
|
|
|
|
||||||
|
Dimension
|
φ16×70mm；φ26×110mm；φ40×180mm；φ50×210mm
|
|
|
|
|
|
|
||||||
|
Wavelength
|
520nm, 532nm, 635nm, 650nm
|
|
|
|
|
|
|
||||||
|
Output Power
|
1, 5, 10, 20, 35, 50, 80, 100, 150 and 200mW（Custom）
|
|
|
|
|
|
|
||||||
|
CDRH Class
|
IIIa
|
|
|
|
|
|
|
||||||
|
Fan Angle
|
110°or 90°（Custom）
|
|
|
|
|
|
|
||||||
|
Line Width
|
1mm(@3m), 2mm(@5m)
|
|
|
|
|
|
|
||||||
|
Operating Current
|
50 mA ~ 250 mA
|
|
|
|
|
|
|
||||||
|
Operating Voltage
|
5VDC or 90 ~ 250 VAC (50/60Hz)
|
|
|
|
|
|
|
||||||
|
Operating Temp.
|
- 10°C ~ 50°C
|
|
|
|
|
|
|
||||||
|
Storage Temp.
|
- 40°C ~ 80°C
|
|
|
|
|
|
|
||||||
|
Lens
|
Optical Glass
|
|
|
|
|
|
|
||||||
|
MTBF
|
>8,000hours
|
|
|
|
|
|
|
||||||
Description
Elite Laser Line Projector is mainly used in such applications as stone, wood, and cloth cutting by projecting a distinct red or green line on the object. Special power supply and
mounting
frame are included.
Features
Compact Size Design
High Reliability & Stability
Convenient adjusting
Easy Mounting
Long Life
30mW 50mW red laser module pointer line and dot laser locator for stone wood cutting indicating
1. Compact and light weight
2. High Reliability & Stability with APC drive circuit
30mW 50mW red laser module pointer line and dot laser locator for stone wood cutting indicating
3. Convenient adjusting 4. Easy Mounting
30mW 50mW red laser module pointer line and dot laser locator for stone wood cutting indicating
5. Static, surge, and Reverse Polarity Protected 6. High Brightness
30mW 50mW red laser module pointer line and dot laser locator for stone wood cutting indicating
Outdoor working or operating can be supported. Just let us know your ideas, we will provide the best solutions!
FAQs
1. What's the way of shipping
Shipping via DHL, TNT, UPS, FedEx, and EMS.
2. What's the payment method?
Assurance payment on Alibaba
3. What's your MOQ?
1 Piece
4. What's the delivery time?
3 – 7 days for International Shipping
5. Can I customize the products based on my requirements?
Yes. We can design and produce lasers based on your special requirements.
6. Do you have any certifications for lasers?
Yes. All our lasers are certified with CE, RoHS, and IEC.
7. How long is the warranty period?
12 months.
Shipping via DHL, TNT, UPS, FedEx, and EMS.
2. What's the payment method?
Assurance payment on Alibaba
3. What's your MOQ?
1 Piece
4. What's the delivery time?
3 – 7 days for International Shipping
5. Can I customize the products based on my requirements?
Yes. We can design and produce lasers based on your special requirements.
6. Do you have any certifications for lasers?
Yes. All our lasers are certified with CE, RoHS, and IEC.
7. How long is the warranty period?
12 months.
