Quick Details
-
Product name:
-
Copper Wire Scrap Recycling Machine
-
Capacity:
-
200 pcs/h
-
Material:
-
Carbon Steel
-
Applicable Stator Type:
-
8 Slots / 12 Slots
-
Treatment Diameter:
-
5-12cm (inner diameter)
-
Pull Stroke:
-
200mm limit control (adjustable)
-
Application:
-
household appliances, motor stators
-
Keywords:
-
Motor Recycling Copper Wire Stripping Machine
-
Working life:
-
20 years
-
Package:
-
Export wooden case
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SHUOMAN
-
Weight (KG):
-
280
-
Product name:
-
Copper Wire Scrap Recycling Machine
-
Capacity:
-
200 pcs/h
-
Material:
-
Carbon Steel
-
Applicable Stator Type:
-
8 Slots / 12 Slots
-
Treatment Diameter:
-
5-12cm (inner diameter)
-
Pull Stroke:
-
200mm limit control (adjustable)
-
Application:
-
household appliances, motor stators
-
Keywords:
-
Motor Recycling Copper Wire Stripping Machine
-
Working life:
-
20 years
-
Package:
-
Export wooden case
High Quality Food Hygiene Standards Copper Winding Wire Scrap Electric Motor Recycling Stripping Machine
Electric Motor Copper Wire Stator Cutting Recycling Machine
Products Description

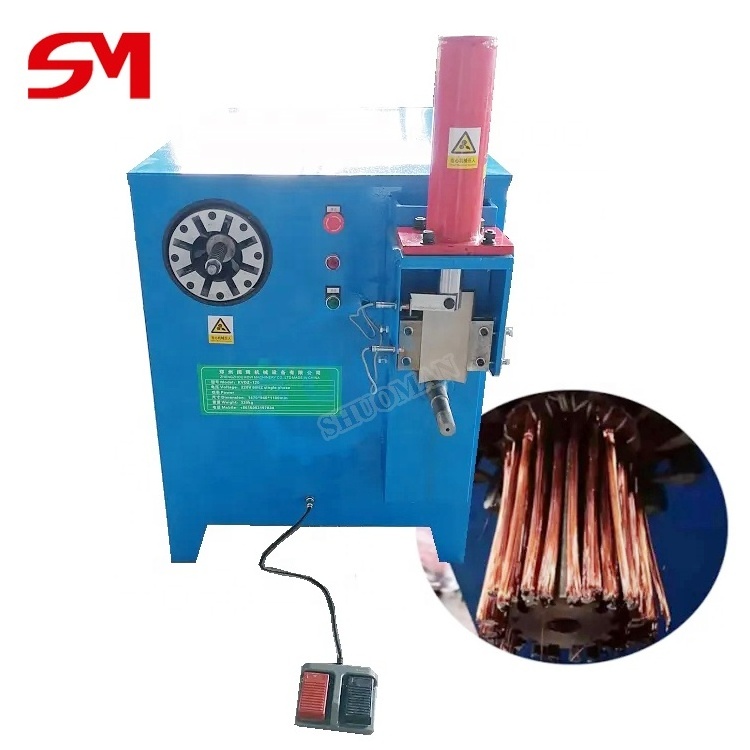

This motor stator recycling machine is used to process the waste motor stator to get the copper wire. The smaller machine is mainly for the motor stators of washer, pump, fans and so on.
The bigger machine is used to process the bigger motor. It could cut the motor with cast cover, then cut the motor stator & pull the wires out.
1.Stator Recycling Machine is a kind of waste stator/motor/engine recycling equipment.
2.There are three main functions:cutting copper,grasping copper and pulling copper wire.
3.High Sealing and high power pure copper-core motor has high energy efficiency, strong power conversion, fast disassembly and stable performance.
4.It can help you to process more easily and efficient motor stator cutting dismantling recycling.
Advange of
Electric Motor Copper Wire Stator Cutting Recycling Machine
:
1.Stator Recycling Machine is a kind of waste stator/motor/engine recycling equipment.
2.It can help you to process more easily and efficient motor stator cutting dismantling recycling.
3.It's very cost-effective and convenient in using.
4.Our Stator/ motor recycling machine is suitable for household appliances, motor stators, air conditioner compressors, fans,refrigerator compressors, washing machines ect.
5.It can separate copper and steel sheets by 100%.
Feature of
Electric Motor Copper Wire Stator Cutting Recycling Machine
:
Product Paramenters
|
Model
|
SM-M12
|
SM-M30
|
|
|
Applicable Stator Type
|
8 Slots / 12 Slots
|
2KW-55KW can be processed
|
|
|
Treatment Diameter
|
5-12cm (inner diameter)
|
inner diameter>=4cm
|
|
|
Tangential Stoke
|
50mm limit control (adjustable)
|
|
|
|
Pull Stroke
|
200mm limit control (adjustable)
|
|
|
|
Size
|
1100*680*900mm
|
2500*1200*1200mm
|
|
|
Package Weight
|
280KG
|
400KG
|
|
|
Power
|
4KW
|
4 KW
|
|
|
Work Pressure
|
20Mpa
|
25Mpa
|
|
|
Control Method
|
Foot switch control
|
Foot switch control
|
|
Products Application
Stator Recycling Machine is a kind of waste stator/motor/engine recycling equipment, suitable for household appliances, motor stators,it can 100% separate copper and steel sheets.
Details Images
Packaging & Shipping
PACKAGE:
Standard export carton or wooden case packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
