Quick Details
-
Brand Name:
-
TONGDA
-
Year:
-
2020
-
Voltage:
-
380V,50HZ,3PHASE
-
Dimension(L*W*H):
-
3*1.55*2.35m
-
Hollow part volume:
-
2L
-
Screw L/D Ratio:
-
25
-
Screw diameter (mm):
-
50 mm
-
Screw Heating Power(kW):
-
6.8 kW
-
Extruder Motor Power(kW):
-
11 kW
-
Mold Platen Size(Width)(mm):
-
310 mm
-
Mold Platen Size(Height)(mm):
-
320 mm
-
Air Pressure(MPa):
-
0.6 MPa
-
Air Comsumption(m³/min):
-
04 m³/min
-
Die Head Heating Power(kW):
-
5.2 kW
-
Accumulator Capacity(L):
-
0 L
-
Power (kW):
-
30.5
-
Weight (T):
-
3.3
-
High Pressure Valve Brand:
-
AirTac
-
Rotary Cylinder Brand:
-
FESTO
-
Product name:
-
Blow Molding Machine
-
Key words:
-
Extrusion Blow Molding Machine
-
Color:
-
Blue
-
Material:
-
HDPE LDPE LLDPE
-
Type:
-
Extrusion Blow Molding Equipment
-
Capacity:
-
200 Pcs/hr
-
Use:
-
Making Bottle
-
Suitable bottle:
-
100-2000ml
Quick Details
-
Clamping Force (kN):
-
44
-
Output (kg/h):
-
50 kg/h
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TONGDA
-
Year:
-
2020
-
Voltage:
-
380V,50HZ,3PHASE
-
Dimension(L*W*H):
-
3*1.55*2.35m
-
Hollow part volume:
-
2L
-
Screw L/D Ratio:
-
25
-
Screw diameter (mm):
-
50 mm
-
Screw Heating Power(kW):
-
6.8 kW
-
Extruder Motor Power(kW):
-
11 kW
-
Mold Platen Size(Width)(mm):
-
310 mm
-
Mold Platen Size(Height)(mm):
-
320 mm
-
Air Pressure(MPa):
-
0.6 MPa
-
Air Comsumption(m³/min):
-
04 m³/min
-
Die Head Heating Power(kW):
-
5.2 kW
-
Accumulator Capacity(L):
-
0 L
-
Power (kW):
-
30.5
-
Weight (T):
-
3.3
-
High Pressure Valve Brand:
-
AirTac
-
Rotary Cylinder Brand:
-
FESTO
-
Product name:
-
Blow Molding Machine
-
Key words:
-
Extrusion Blow Molding Machine
-
Color:
-
Blue
-
Material:
-
HDPE LDPE LLDPE
-
Type:
-
Extrusion Blow Molding Equipment
-
Capacity:
-
200 Pcs/hr
-
Use:
-
Making Bottle
-
Suitable bottle:
-
100-2000ml
Products Description

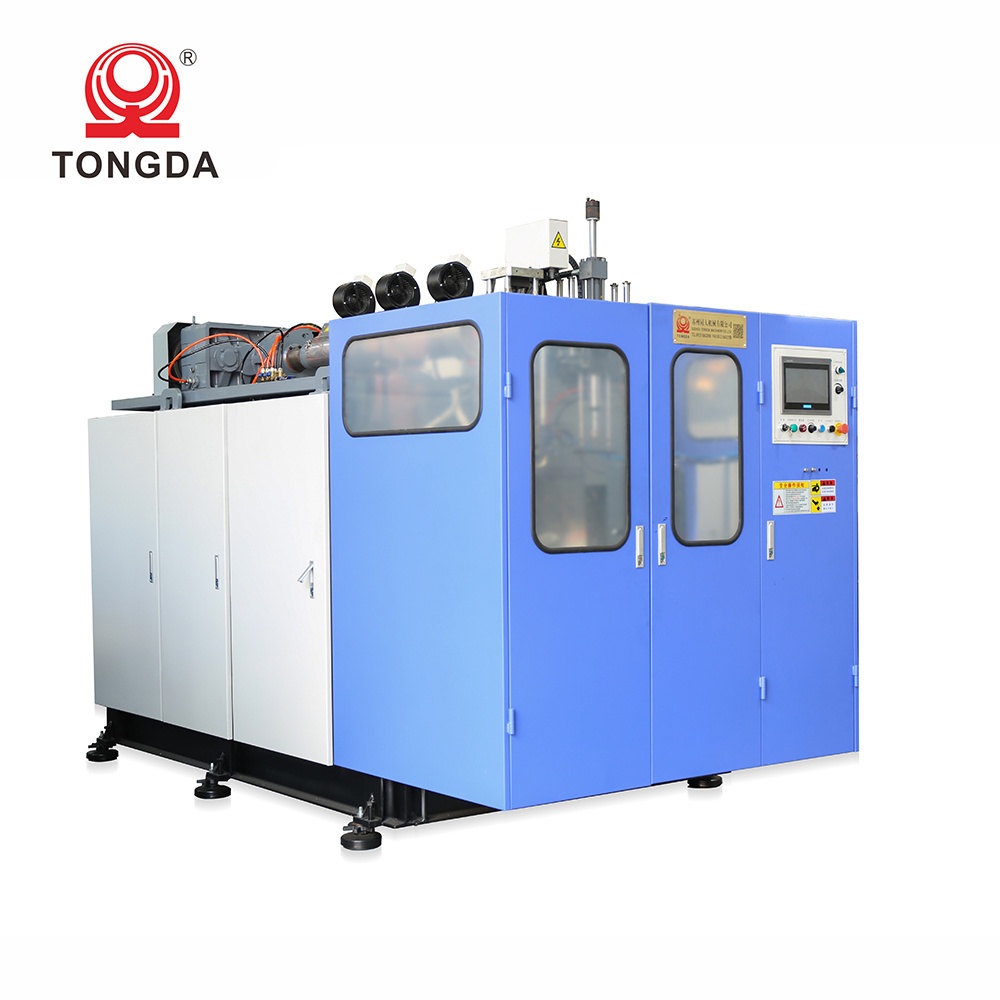

HT-2L
This is our basic series machine.It is single station.This machine is suitable for the small bottles.The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.
|
Specification
|
|
|
|
|||
|
Station
|
|
Single
|
|
|||
|
Max.product volume
|
L
|
2
|
|
|||
|
Dry cycle
|
pc/h
|
900
|
|
|||
|
Central distance of double head
|
mm
|
130
|
|
|||
|
Output of HDPE
|
kg/h
|
50
|
|
|||
|
Weight of machine
|
kg
|
3300
|
|
|||
|
Size of machine(L*W*H)
|
m
|
3*1.55*2.35
|
|
|||
|
Die head
|
|
|
|
|||
|
Max.die diameter
|
mm
|
108
|
|
|||
|
Die head heating zone
|
|
3
|
|
|||
|
Die head heating
|
kw
|
5.2
|
|
|||
|
Clamping Unit
|
|
|
|
|||
|
Platen distance
|
mm
|
138~368
|
|
|||
|
Mold moving stroke
|
mm
|
320
|
|
|||
|
Clamping force
|
kn
|
44
|
|
|||
|
Extruder Unit
|
|
|
|
|||
|
Screw diametre
|
mm
|
50
|
|
|||
|
Screw length/diametre ratio
|
|
25
|
|
|||
|
Screw heating power
|
kw
|
6.8
|
|
|||
|
No.of heating zone
|
|
3
|
|
|||
|
Power Unit
|
|
|
|
|||
|
Oil pump motor power
|
kw
|
7.5
|
|
|||
|
Screw motor power
|
kw
|
11
|
|
|||
|
Total power
|
kw
|
30.5
|
|
|||
|
Remarks
|
|
|
|
|||
|
Air consumption
|
m³/min
|
0.4
|
|
|||
|
Blow pressure
|
Mpa
|
0.6
|
|
|||
|
Cooling water pressure
|
Mpa
|
0.3
|
|
|||
|
Water consumption
|
L/min
|
35
|
|
|||
|
Max size of mold(W*H)
|
mm
|
310*320
|
|
|||

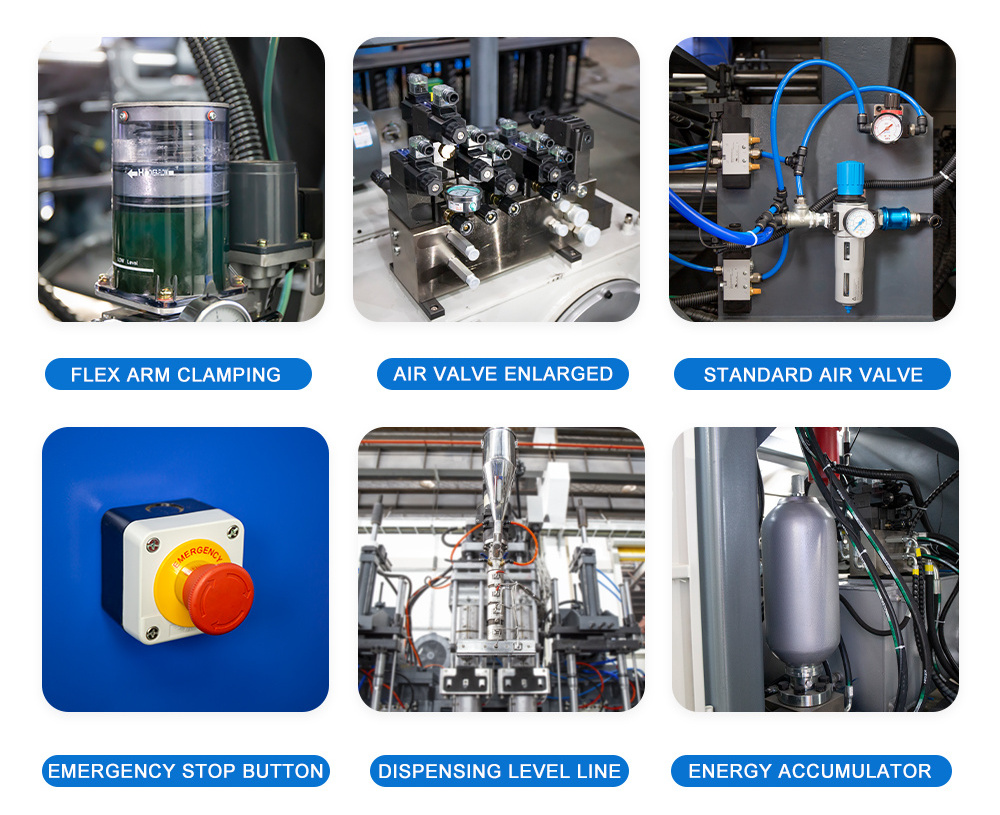

Machine Details
