Quick Details
-
Dimension(L*W*H):
-
as per model
-
Weight:
-
KG, 4.2-25.7T
-
Product Name:
-
Grinding Mill Machine, Stone Powder Grinding Machine Raymond Mill
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Finished Production Size of Raymond Mill:
-
0.2-0.044mm
-
Roller NO. of Raymond Mill:
-
3/4/5
-
Power(W):
-
18.5-75kw
-
Applications: Widely:
-
4.2-25.7T
-
Operation:
-
Easy and convenient
-
Spare parts:
-
Supply
Quick Details
-
Capacity(t/h):
-
refer to paraeter, Max 9.5
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Baichy
-
Dimension(L*W*H):
-
as per model
-
Weight:
-
KG, 4.2-25.7T
-
Product Name:
-
Grinding Mill Machine, Stone Powder Grinding Machine Raymond Mill
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Finished Production Size of Raymond Mill:
-
0.2-0.044mm
-
Roller NO. of Raymond Mill:
-
3/4/5
-
Power(W):
-
18.5-75kw
-
Applications: Widely:
-
4.2-25.7T
-
Operation:
-
Easy and convenient
-
Spare parts:
-
Supply

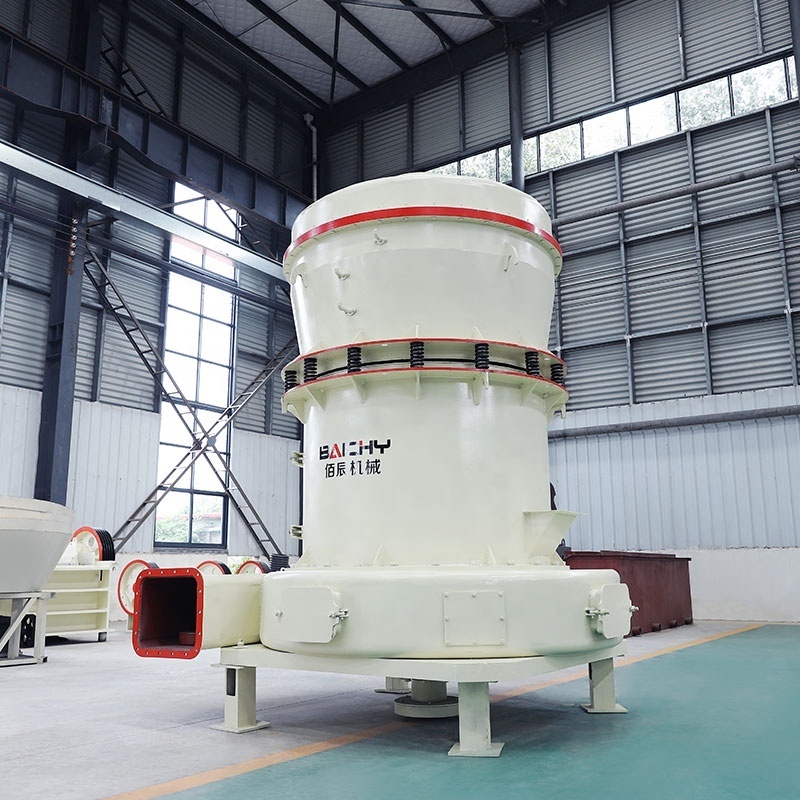

Factory Price Barite Limestone Gypsum Calcite Ultrafine Powder Grinding Mill Machine, Stone Powder Grinding Machine Raymond Mill
[ Capacity ]: 0.5–60 t/h
[ Applicable Material ]:
Raymond mill, also known as raymond grinding mill, raymond roller mill and raymond grinder, is suitable for grinding non-flammable and non-explosive materials.The finished powder size can be adjusted between 30 and 425 mesh(0.613mm-0.044mm).Working principle
According to users’ need the mill can also be equipped with accessory equipments like crusher bucket elevators hopper electromagnetic vibrating feeder and switch box etc. Inside the mainframe the roller subassembly is suspended on the roller suspender through horizontal supporting axis and the roller suspender fixed up with the main shaft and shovel stand. Located outside of the roller bearing house the pressure springs make rollers push down the inside surface of ring through horizontal supporting axis. Shovels installed on the shovel stand and rollers rotate together when the motor drives main shaft through transmission device and the rollers roll appressed the inside surface of ring and rotate at the same time. The separator impellers are driven by motor through transmission device to rotate more higher the speed of separator impellor more fine the powders been separated.Model | Roller | Roll Dia. (mm) | Roll Ring Size (mm) | Max. Input Size (mm) | Output Size (mm) | Capacity T/Shaft | Power (Kw) | Dimension | |
3R | 1510 | 3 | 150*100 | 570*100 | 15 | 0.125-0.044 | 0.8-10 | 7.5 | 3200*1200*3800 |
2115 | 3 | 210*150 | 630*150 | 15 | 0.125-0.044 | 1-12 | 15 | 3500*3300*4500 | |
2615 | 3 | 260*150 | 780*150 | 20 | 0.125-0.044 | 1.5-20 | 18.5 | 4650*3600*5100 | |
2715 | 3 | 270*150 | 830*150 | 20 | 0.125-0.044 | 2-28 | 22 | 4700*3600*5100 | |
3015 | 3 | 300*150 | 875*150 | 25 | 0.125-0.044 | 2-35 | 30 | 5300*4100*5200 | |
4R | 3016 | 4 | 300*160 | 890*160 | 25 | 0.125-0.044 | 3-36 | 30 | 5400*4100*5200 |
3216 | 4 | 320*160 | 970*160 | 25 | 0.125*0.044 | 4-45 | 37 | 7100*5900*7900 | |
3220 | 4 | 320*200 | 970*200 | 25 | 0.125-0.044 | 4-55 | 45 | 9900*5800*1058 | |
5R | 4119 | 5 | 410*190 | 1270*190 | 30 | 0.613-0.044 | 8-60 | 75 | 9200*7250*9700 |
Features
1. Compared with other mills its capacity increases by 10%-20% under the same power condition and compression force of rollers to material improve 800-1200kgf under the force of high-pressure spring.
2. Size of final product can be 0.613mm (30mesh) –0.033mm (425mesh). Some can reach the fineness of 0.013mm (1000 mesh).
3. High Pressure Suspension Mill meets the requirement of national dust-dump standard.
4. The separator can be adjusted very easily.
5. The multi-class seals are adopted to keep the grinding equipment tightly closed.
20 national service mileage:
Service mileage for local customers to provide equipment installation, commissioning and after-sales service
1. Are you manufacture or trading company?
We are factory, established in 2003.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
