Quick Details
-
Panel Size:
-
320*160mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
LEADING-LDCODP10
-
Product name:
-
P10 pharmacy cross led display
-
Protecting Rating:
-
IP65
-
Control:
-
RS232, RJ45 LAN, WIFI
-
Frame Material:
-
Steel / Aluminum
-
Drive Mode:
-
1/4 scan constant currents
-
screen size:
-
1000*1000mm
-
Cabinet Dimension:
-
1000*1000*100mm(customization)
-
Cabinet Resolution:
-
96*96pixels
-
Module Dimension:
-
320*160mm
-
Display Content:
-
animation, graphics, text, date, time, temperature, humidity
-
Pixel Pitch:
-
P4 / P5 / P6 / P8 / P10 / 12.5 / P16...
Quick Details
-
Application:
-
Outdoor / Indoor
-
Brand Name:
-
LEADING
-
Color:
-
Full Color
-
Panel Size:
-
320*160mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
LEADING-LDCODP10
-
Product name:
-
P10 pharmacy cross led display
-
Protecting Rating:
-
IP65
-
Control:
-
RS232, RJ45 LAN, WIFI
-
Frame Material:
-
Steel / Aluminum
-
Drive Mode:
-
1/4 scan constant currents
-
screen size:
-
1000*1000mm
-
Cabinet Dimension:
-
1000*1000*100mm(customization)
-
Cabinet Resolution:
-
96*96pixels
-
Module Dimension:
-
320*160mm
-
Display Content:
-
animation, graphics, text, date, time, temperature, humidity
-
Pixel Pitch:
-
P4 / P5 / P6 / P8 / P10 / 12.5 / P16...
HD 1000mm led pharmacy cross sign outdoor led cross screen full color led cross pharmacy
|
Part Number |
Value |
|
Pixel Pitch |
10mm |
|
Physical Density |
10240dots |
|
Pixel configuration |
Three leds(RGB) |
|
LED lamp |
SMD3535 |
|
Module Resolution |
32×16pixels |
|
Module Dimension |
320×160mm |
|
Cabinet Resolution |
96×96pixels |
|
Cabinet Dimension |
1000×1000×100mm |
|
Cabinet Weight |
40KG |
|
Brightness Level |
6000nits |
|
Max Power Consumption |
960W |
|
Ave Power Consumption |
300W |
|
Viewing Angle |
120°/120° |
|
Operating Power Source |
AC90-240V 50-60Hz |
|
Operating Temperature |
−20℃~+60℃ |
|
Drive Mode |
1/4 scan, constant current |
|
Communication Mode |
RS232,RJ45,RF Wireless, WIFI--Default configuration(RF Wireless) |
|
Side |
One/two |
|
Life Span |
100,000Hours |
|
MTBF |
5,000Hours |
|
Protecting Rating |
IP65 |
|
Display Content |
animation, graphics, text, date, time, temperature, humidity |
|
Languages |
English, French, Spanish, Greek, Russian and Italian |
|
Operating system |
Windows (2000/XP/Vista/Win7) / Android / ios..... |
|
Verification |
CE, EMC, LVD, ROHS |
1) For outdoor usage, pour epoxy resin on the surface, full waterproof
2) Good quality with two side display, remote control board change the display shape.
3) Animations: all leds on, flashing, wave chasing
4) High bright LED for 100,000h
5) Input voltage: AC90-240V 50-60Hz,DC 5V
6) Power consumption:200W
7) Other colors, sizes and one side available!

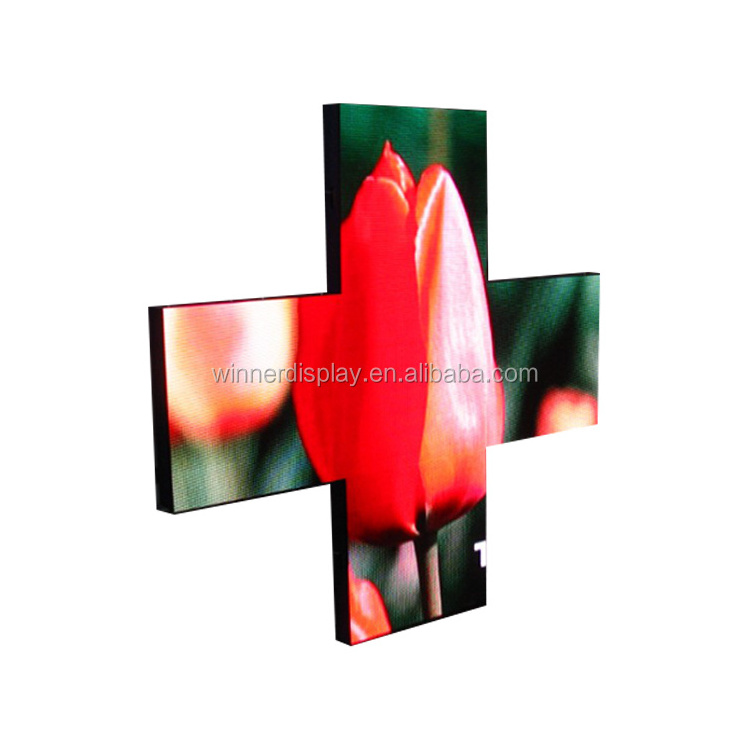

China led cross pharmacy RGB outdoor WIFI cross led display 1000MM P10
Features of LED Pharmacy Cross
1. waterproof, radiation proof
2. light weight, thin depth, front maintenance
3. low power consumption, high bright, easy installation
4. asynchronous control (RF/LAN/WIFI/RS232)
5. display content 2D/3D(animation, graphic, text, time, temperature)
P10 pharmacy cross led outdoor led cross sign 1000mm
Application
LED pharmacy cross is one kind of heteromorphic display consisting of LED cross modules and cross cabinet. The system combines with the technology of optics, microelectronics, information processing and transmission, mechanics and other technology etc. as a whole. The main application areas: the chemist's shop, pharmacy, drugstore, Apotheke, farmacia, church, hospital and crossroad.
1. We provide 2 years warranty. If the item is defective, please notify us within 7 days after goods delivered.
2. All items must be returned in their original condition, in order to qualify for a refund or exchange of goods.
3. The buyer is responsible for all shipping costs incurred.
4.Support 24 Hours Online Guide & Help if you have any problems!
5. High quality original LED Chip with CE,ROHS,FCC certified.
6. We gaurantee to test every part before the delivery and gaurantee the quality!
