Quick Details
-
Model Number:
-
MPT910S
-
Product Name:
-

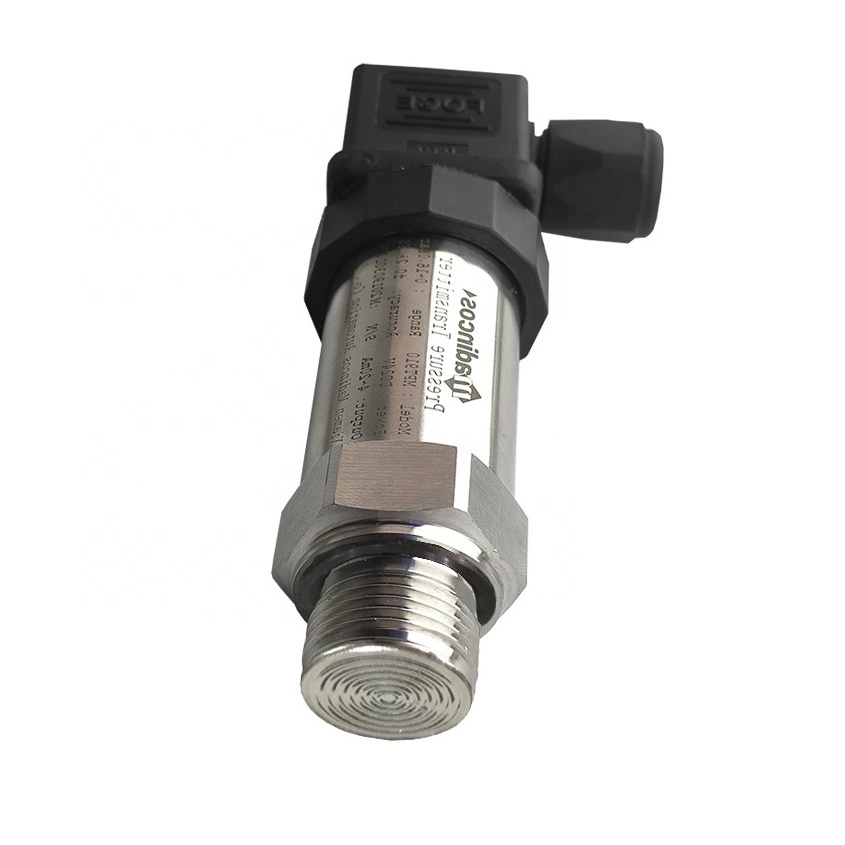

Universal Flush Pressure Transmitter
-
Measured media:
-
High Temperature ,High Viscosity Fluid,milk, food,Pasteurization
-
Accuracy:
-
0.1%FS;0.2%
-
Long Term Stability:
-
0.1% %F. S/year (standard)
-
Output signal:
-
4-20ma,0-10VDC
-
Process connection:
-
G1/2'', G1'' flush
-
Electrical connection:
-
Cable, Air-plug, Hirschman plug
-
Working Temp:
-
-20...80degC; 0 to 120degc, 0 to 150degc
-
Compensation:
-
support multi-point wide temperature compensation, optional
-
Power supply:
-
12-40VDC, 24VDC as standard
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Madincos
-
Model Number:
-
MPT910S
-
Product Name:
-
Universal Flush Pressure Transmitter
-
Measured media:
-
High Temperature ,High Viscosity Fluid,milk, food,Pasteurization
-
Accuracy:
-
0.1%FS;0.2%
-
Long Term Stability:
-
0.1% %F. S/year (standard)
-
Output signal:
-
4-20ma,0-10VDC
-
Process connection:
-
G1/2'', G1'' flush
-
Electrical connection:
-
Cable, Air-plug, Hirschman plug
-
Working Temp:
-
-20...80degC; 0 to 120degc, 0 to 150degc
-
Compensation:
-
support multi-point wide temperature compensation, optional
-
Power supply:
-
12-40VDC, 24VDC as standard
|
High Accuracy, High Stability, Digital Electrical Board, Diffusion Silicon Sensor with Low Temperature Shift
|
|
|
|
|||
|
Accuracy
|
0.2%FS, 0.1%F. S
|
|
|
|||
|
Stability
|
0.1% %F. S/year (standard); 0.2% %F. S/year (Max.)
|
|
|
|||
|
Zero temperature Shift
|
±0.03%FS/℃(≤100Kpa); ±0.02%FS/℃(>100Kpa)
|
|
|
|||
|
Full range temperature Shift
|
±0.03%FS/℃(≤100Kpa); ±0.02%FS/℃(>100Kpa)
|
|
|
|||
|
Compensation temperature
|
20℃; -10 to 70℃
|
|
|
|||
|
Overload pressures
|
200%F.S
|
|
|
|||
|
Specification for Variour Process Pressure Measurement
|
|
|
|
|||
|
Measured Pressure
|
Gauge, Absolute, negative
|
|
|
|||
|
Measuring range
|
-100kpa to 40MPa
|
|
|
|||
|
Measured medium
|
Gas, liquid, oil compatible with 316 stainless steel
|
|
|
|||
|
Fluid Process Temperature
|
-20 to 80℃; or higher up t0 120 degC with accessory.
|
|
|
|||
|
Diaphragm material
|
316SS
|
|
|
|||
|
Process Connection material
|
304SS; optional 316SS
|
|
|
|||
|
Housing Material
|
304SS;optional 316SS
|
|
|
|||
|
Process Connection:
|
1/2''G, G1'' M flush etc
|
|
|
|||
|
Electrical Connection type
|
Hirschman plug; Air Plug, Cable
|
|
|
|||
|
Output signal
|
4-20mA, 0-10VDC
|
|
|
|||
|
Power supply
|
12-24VDC, standard: 24VDC±5%, ripple less than 1%
|
|
|
|||
|
IP protection
|
IP 65
|
|
|
|||
|
Package &Shipment
|
|
|
|
Size
|
D=26.5mm; Box size:18.5x16.5x5.5cm
|
|
|
G.W.
|
0.3kg per pc with 5 layer hard box
|
|
|
|
Package: The normal package is paper box(Size: 120L*120W*150HMM).
PC+Bubble box +paper box with prection further to garantee the delivery the goods to you great.
Delivery: by DHL, TNT, UPS, FEDEX;
