Quick Details
-
Core Components:
-
Other
-
Operating Speed:
-
0.69~1.38 M/S
-
Tillage Depth:
-
≥ 120 MM
-
Design Rotational Speed of Blade-axle:
-
280 R/MIN
-
Maximum Rotation Radius of Blade-axle:
-
245 MM
-
Total No. of Blade:
-
60 PCS
-
Rated Power of Tractor:
-
60HP~95HP
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HAOFENG/OEM
-
Weight:
-
1500 KG
-
Core Components:
-
Other
-
Operating Speed:
-
0.69~1.38 M/S
-
Tillage Depth:
-
≥ 120 MM
-
Design Rotational Speed of Blade-axle:
-
280 R/MIN
-
Maximum Rotation Radius of Blade-axle:
-
245 MM
-
Total No. of Blade:
-
60 PCS
-
Rated Power of Tractor:
-
60HP~95HP
Products Description

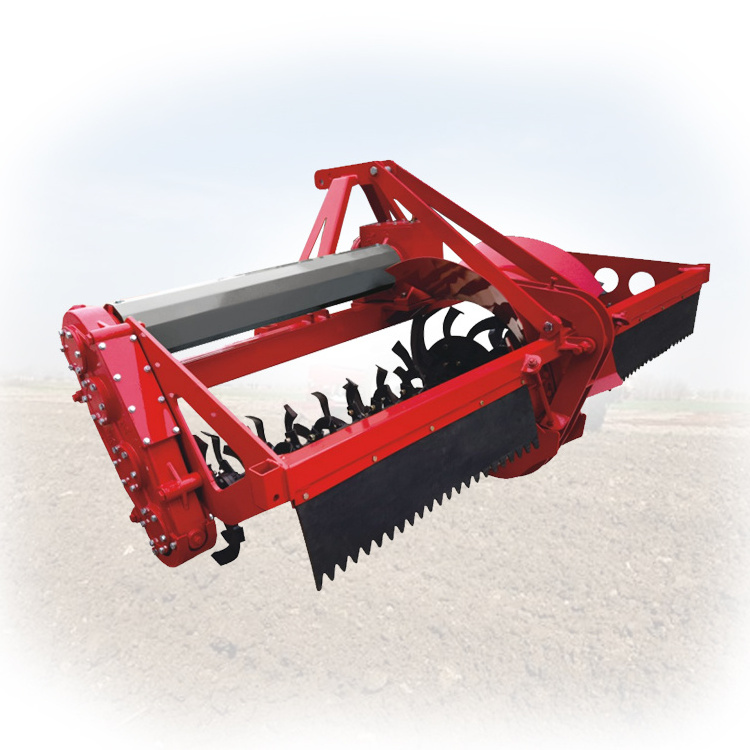

This machine is mainly suitable for trenching, soil cultivation, ridging of crops such as scallions, ginger, potatoes, tobacco, sugarcane, flowers, and other crops, as well as trenching and drainage operations in southern paddy fields. It is paired with wheeled tractors and can complete multiple agronomic tasks such as soil rotary tillage, trenching and ridging in one go. It adopts a side transmission mechanism, with stable operation, uniform and standardized trenching, and high efficiency. It is an ideal new generation of rotary tillage and trenching machinery
|
name
|
unit
|
Design value
|
|
|
|
Model name
|
kw
|
12KG-33 (200) Rotary Tillage Trencher
|
12KG-33 (230) Rotary Tillage Trencher
|
|
|
auxiliary power
|
kw
|
58.8~73.5
|
66.2~80.9
|
|
|
Working breadth
|
cm
|
200
|
230
|
|
|
Overall dimensions
|
cm
|
1240x2270x1190
|
1240x2570x1190
|
|
|
Rotary tillage depth
|
cm
|
80~160
|
|
|
|
Trenching specifications
|
cm
|
Trench surface width 18-25, trench bottom width 181, trench depth 18-33
|
|
|
|
work efficiency
|
hm²/h
|
0.56-1.39 (8-20 mu/hour) 0.56-1.39 (8-20 mu/hour)
|
|
|
The blades are made of high-quality special steel with good strength and wear resistance.
D uPont Bright Powder is used for surface coatings with a glossiness of over 90%.
Side gear drive or chain drive
The transmission shaft adopts a double cone seal
Universal three point hitch
Applicable Terrain
Why Choose Us
We have our own factory with a variety of agricultural machinery products to choose from, providing one-stop shopping
Our products are exported to various parts of the world and have received unanimous praise.
