OEM push button switches keypads & keyboards price membrane switches keypad keyboard panel FPC membrane switch with 3M adhesive

OEM push button switches keypads & keyboards price membrane switches keypad keyboard panel FPC membrane switch with 3M adhesive

FOB Reference Price: Get Latest Price

≥10 Pieces

US $1.2

≥500 Pieces

US $1

≥1000 Pieces

US $0.8

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: membrane switch keypad

Keypad Button Material:: polyester

Name:: FPC membrane switch

color:: Pantone and RAL

certification:: ROHS,REACH

material:: Polyester,PET,PC,FPC,3M or custom

size:: custom design

delivery time:: 10-20 days

sample time:: 3-6 days

connector:: female/male/ZIF

payment:: T/T,Western Union

OEM:: membrane switch keypad

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: FPC membrane switch with 3M adhesive

Model Number:: FPC membrane switch

Application:: membrane switch keypad

Keypad Button Material:: polyester

Name:: FPC membrane switch

color:: Pantone and RAL

certification:: ROHS,REACH

material:: Polyester,PET,PC,FPC,3M or custom

size:: custom design

delivery time:: 10-20 days

sample time:: 3-6 days

connector:: female/male/ZIF

payment:: T/T,Western Union

OEM:: membrane switch keypad

OEM push button switches keypads & keyboards price membrane switches keypad keyboard panel FPC membrane switch with 3M adhesive

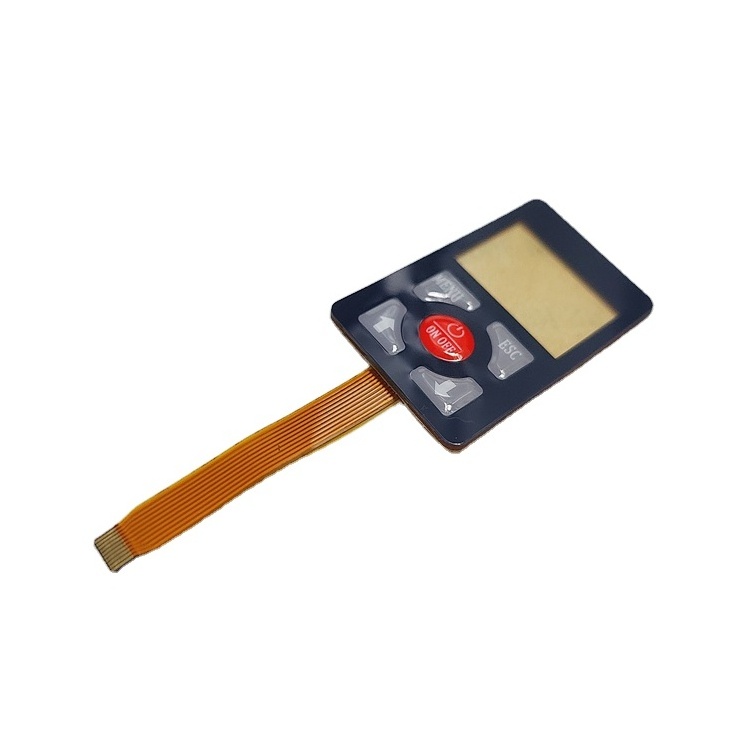

FPC membrane switch

The difference between FPC membrane switches and ordinary membrane switches is that the circuit is no longer a silver paste printed circuit, but a more stable FPC circuit material, which is more resistant to high temperatures and corrosion. FPC membrane switch circuit layer uses FPC flexible circuit board. This circuit has high precision, minimum output spacing of 0.5mm, low resistance value, more stable circuit function and longer service life.

For the flex circuit membrane switches, there are two types: Silver printed PET circuit and copper etched FPC circuit.Their difference and advantages & disadvantages are listed bellow:

Items	Silver Printed Circuit	Copper Etched FPC Circuit
Material	PET (Polyester)	Polyimide
Conductor	Printed silver	Copper
Contact Fingers	Silver and Carbon	Gold plated
Contact Buttons Pads	Silver	Gold plated
Life & Reliability	normal	good
Stability	normal	good
Resistance	Normal	Very low
Cost	low	high
Lead Time	12-15 working days	12-15 working days
Pitch	1.0mm,1.27mm,2.54mm	0.5mm, 1.0mm,1.27mm,2.54mm

FPC membrane advantages compared with silver film switch
1.Low resistance(10% of silver film switch)
2.load large current(Normally 1Acurrent/0.5mm line)
3.Components(LED and resistance)can be welded more firmly
4.Good oxidation resistance, suitable for humid environment
5.The connector at the end of cable can be made to smaller to save space.

FPC Membrane Switch design options:

Single-sided – conductive traces one side copper of the film substrate

Double-sided – conductive traces both sides copper of the film substrate

Rigid-Flex – a laminated combination of a Copper Flex switch with a rigid FR4 PCB membrane switch

Solder active and passive components into the switch design

FPC + MEMBRANE SWITCH + RUBBER KEYPAD

FPC+MEMBRANE SWITCH+ TOUCH PANEL

PCB+MEMBRANE SWITCH

WATERPROOF MEMBRANE SWITCH

Possible pitch 0.5mm and 0.3mm for ZIF connector

Plating options can be tin, nickel, or gold

Flow chart:

Let our engineer teams help you assess your membrane switch design options. we will tailor your membrane switch and graphic overlay to fit the application and your specifications.

Membrane Switch Parameter :

Certification	ISO9001, ISO14001 & ROHS.
Components:	LED, metal dome, connector and circuit, all these can be designed and made according to customer requirements.
Electronic characteristics
Circuit rating	35V(DC),100mA,1 W
Contact resistance	10Ω - 500Ω(According the trace length and materials to confirm)
Insulation resistance	>100MΩ 250V(DC)
Contact bounce	≤5ms
Dielectric withstand	250VRms(50 - 60Hz/1 min)
Life expectancy	flat type≥5million times, tactile type:≥1 million times
Mechanical Properties
Operating pressure	flat type 57-284g (2-10 Oz),tactile type 170-397g (6-14 Oz)
Switch stroke	flat type 0.1 - 0.5mm, tactile type 0.6 - 1.5mm
Environmental parameters
Operating Temperature	-20°C - +80°C
Storage temperature	-40°C - +85°C
Humidity	40°C,90%-95%,240 hours
