Quick Details
-
Frequency Tolerance:
-
±10ppm
-
Type:
-
Crystals
-
Place of Origin:
-
Guangdong, China
-
Package Type:
-
SMD5032
-
Frequency Range:
-
8MHz-54MHz
-
Operating Temperature:
-
-40℃ ~ +85℃
Quick Details
-

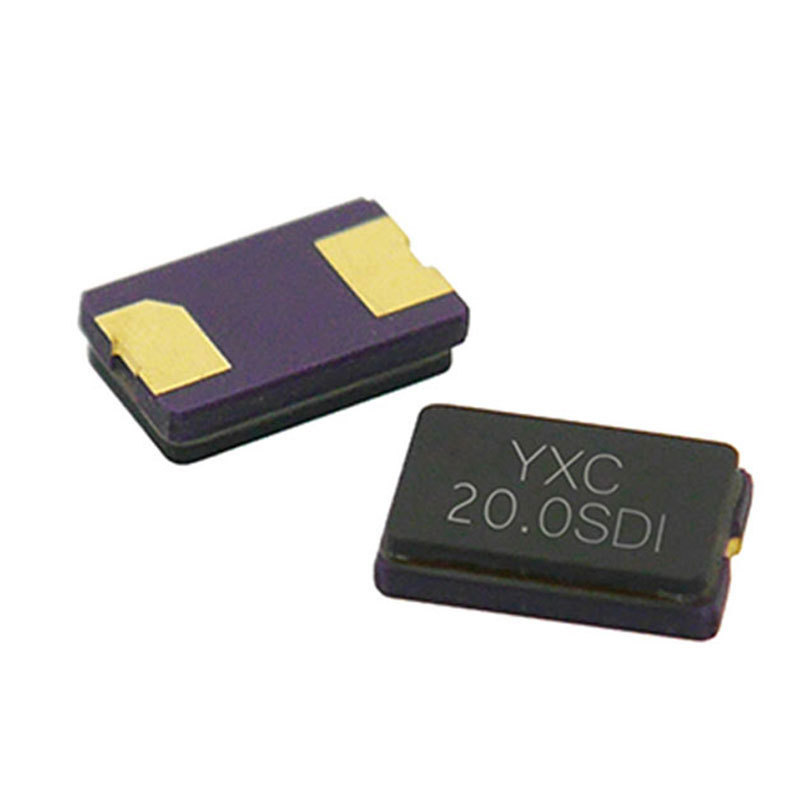

Model Number:
-
YSX530GA
-
Brand Name:
-
YXC
-
Frequency:
-
20.000000MHz
-
Frequency Tolerance:
-
±10ppm
-
Type:
-
Crystals
-
Place of Origin:
-
Guangdong, China
-
Package Type:
-
SMD5032
-
Frequency Range:
-
8MHz-54MHz
-
Operating Temperature:
-
-40℃ ~ +85℃
Specifications
External Dimensions
Electrical Specifications
|
Item/Type
|
YSX530GA
|
|
Nominal Frequency Range
|
8~54MHz
|
|
vibration Mode
|
AT Fundamental
|
|
Load Capacitance
|
12pF, 20pF,or specify
|
|
Frequency Tolerance (at 25°C)
|
±10ppm,±20ppm,or specify
|
|
Frequency Versus Temperature Characteristics
|
±20ppm,or specify
|
|
Operating Temperature
|
-20°C ~ +70°C, -40°C ~ +85°C,or specify
|
|
Storage Temperature
|
-40°C ~ +85°C,or specify
|
|
shunt Capacitance
|
7pF Max
|
|
Level of Drive
|
1~100 W Max(10uW typical)
|
|
Frequency Aging (at 25°C)
|
±3ppm/Year
|
|
Insulation resistance
|
More Than 500MΩ at DC 100V
|
REMARK:SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. PLEASE CONFIRM WITH OUR SALES ENGINEER FOR PDF FILE.
